pytorch中 PIL与tensor、numpy与tensor之间相互转化|简记
【摘要】
参考链接-Pytorch中Tensor与各种图像格式的相互转化
下面是整理的 cv、PIL 读取图片,然后PIL2tensor、Tensor2PILImage、tensor2numpy相互转化的代码...
参考链接-Pytorch中Tensor与各种图像格式的相互转化
下面是整理的 cv、PIL 读取图片,然后PIL2tensor、Tensor2PILImage、tensor2numpy相互转化的代码,建议直接复制运行,观察输出 :
torch 1.1.0 ,torchvision 0.3.0
from torchvision import transforms
from PIL import Image
import cv2
import os
import numpy as np
if __name__ == '__main__':
# 方法定义
def denorm(x):
return x * 0.5 + 0.5
def tensor2numpy(x):
return x.detach().cpu().numpy().transpose(1, 2, 0)
def RGB2BGR(x):
return cv2.cvtColor(x, cv2.COLOR_RGB2BGR)
# 实例化
test_transform = transforms.Compose([
# transforms.Resize((256, 256)),
transforms.ToTensor(),
transforms.Normalize(mean=(0.5, 0.5, 0.5), std=(0.5, 0.5, 0.5))
])
unloader = transforms.ToPILImage()
print('-------------Start------------------')
# cv read img
img_path = 'default.jpg'
cv2_image = cv2.imread(img_path) # numpy.ndarray(H,W,C=3),通道顺序(B,G,R)
print('type(cv2_image): ', type(cv2_image))
print('cv2_image.size: ', cv2_image.shape)
print()
# PIL read img
image = Image.open(img_path)
image.save('PIL_default.jpg')
print('type(image): ', type(image))
print('PIL image.size: ', image.size)
print()
# PIL2tensor
img_tensor = test_transform(image) # (C,H, W), 通道顺序(R,G,B)
print('PIL2tensor type: ', type(img_tensor))
print('PIL2tensor shape: ', img_tensor.shape)
print()
# Tensor2PILImage, 使用 PIL 进行保存
Tensor2PIL = unloader(img_tensor)
Tensor2PIL.save('temp.jpg')
print('Tensor2PIL type: ', type(Tensor2PIL))
print('Tensor2PIL size: ', Tensor2PIL.size)
print('---------------------------------------')
# tensor2numpy.ndarray 使用cv2 来进行保存
tensor2numpy_img = RGB2BGR(tensor2numpy(denorm(img_tensor)))
cv2.imwrite(os.path.join('test_cv.jpg'), tensor2numpy_img)
print('tensor2numpy_img type: ', type(tensor2numpy_img))
print('tensor2numpy_img shape: ', tensor2numpy_img.shape)
print()
# 给 tensor 扩充一个 维度
# pytorch中,处理图片需要一个batch一个batch的操作,需要准备的数据格式是 [batch_size, n_channels, hight, width]
img4 = test_transform(image).unsqueeze(0)
print('add a dimension: ', img4.shape)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
输出如下:
-------------Start------------------
type(cv2_image): <class 'numpy.ndarray'>
cv2_image.size: (220, 178, 3)
type(image): <class 'PIL.JpegImagePlugin.JpegImageFile'>
PIL image.size: (178, 220)
PIL2tensor type: <class 'torch.Tensor'>
PIL2tensor shape: torch.Size([3, 220, 178])
Tensor2PIL type: <class 'PIL.Image.Image'>
Tensor2PIL size: (178, 220)
---------------------------------------
tensor2numpy_img type: <class 'numpy.ndarray'>
tensor2numpy_img shape: (220, 178, 3)
add a dimension: torch.Size([1, 3, 220, 178])
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
知识点:

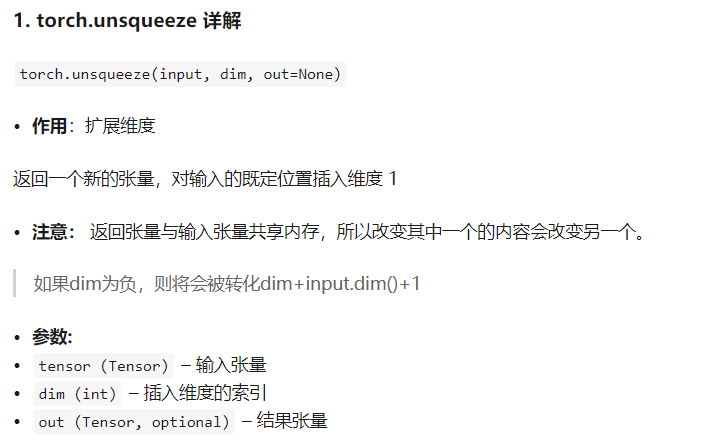

torch.unsqueeze() 类似于 np.expand_dims() 、tf.expand_dims(input, axis=-1)
tf.expand_dims(input, axis=-1)
pytorch中squeeze()和unsqueeze()函数介绍
torch.unsqueeze() 和 torch.squeeze()
