一、线性布局 DirectionalLayout

线性布局 DirectionalLayout , 指的是其中的组件都是按照一个方向 , 从左到右 , 或 从上到下 , 线性排列的 ;

线性布局需要设置一个方向 , 使用 ohos:orientation 属性设置 ;

如果设置 vertical 就是垂直方向 , 布局中的组件按照从上到下线性排列 ;

如果设置 horizontal 就是水平方向 , 布局中的组件按照从左到右的顺序线性排列 ;

二、垂直线性布局 DirectionalLayout

线性布局 DirectionalLayout 垂直摆放示例 :

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:width="match_parent"
    ohos:orientation="vertical">

    <Text
        ohos:id="$+id:text1"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#FF0000"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 1 "
        ohos:text_size="50"/>

    <Text
        ohos:id="$+id:text2"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#00FF00"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 2 "
        ohos:text_size="50"/>

    <Text
        ohos:id="$+id:text3"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#0000FF"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 3 "
        ohos:text_size="50"/>

</DirectionalLayout>






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

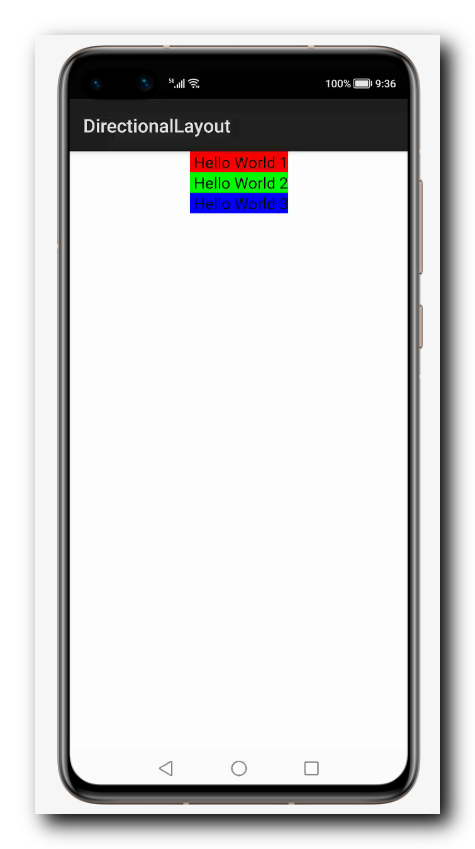

上述布局中 ohos:orientation=“vertical” 属性设置该线性布局是垂直摆放 , 展示效果图如下 :

三、水平线性布局 DirectionalLayout

线性布局 DirectionalLayout 水平摆放示例 :

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:width="match_parent"
    ohos:orientation="horizontal">

    <Text
        ohos:id="$+id:text1"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#FF0000"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 1 "
        ohos:text_size="50"/>

    <Text
        ohos:id="$+id:text2"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#00FF00"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 2 "
        ohos:text_size="50"/>

    <Text
        ohos:id="$+id:text3"
        ohos:height="match_content"
        ohos:width="match_content"
        ohos:background_element="#0000FF"
        ohos:layout_alignment="horizontal_center"
        ohos:text=" Hello World 3 "
        ohos:text_size="50"/>

</DirectionalLayout>






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

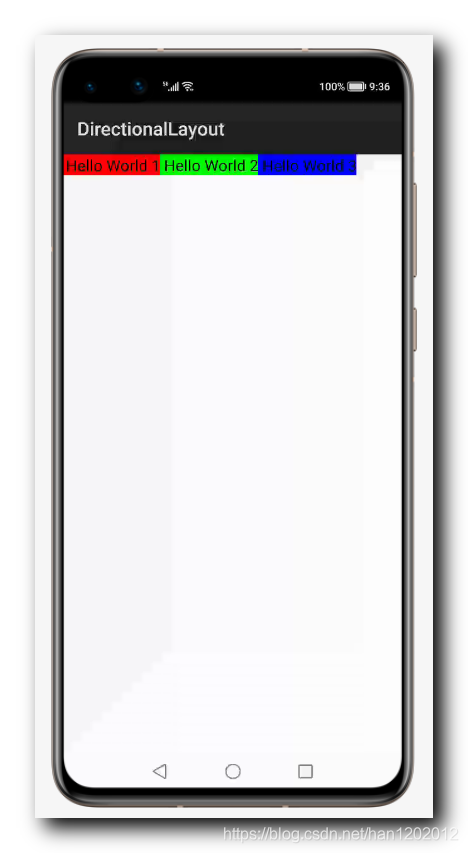

上述布局中 ohos:orientation=“horizontal” 属性设置该线性布局是水平摆放 , 展示效果图如下 :
