简介

近一两年，Transformer 跨界 CV 任务不再是什么新鲜事了。

自 2020 年 10 月谷歌提出 Vision Transformer (ViT) 以来，各式各样视觉 Transformer 开始在图像合成、点云处理、视觉 - 语言建模等领域大显身手。

之后，在 PyTorch 中实现 Vision Transformer 成为了研究热点。GitHub 中也出现了很多优秀的项目，今天要介绍的就是其中之一。

该项目名为「vit-pytorch」，`它是一个 Vision Transformer 实现，展示了一种在 PyTorch 中仅使用单个 transformer 编码器来实现视觉分类 SOTA 结果的简单方法`。

项目当前的 star 量已经达到了 7.5k，创建者为 Phil Wang，ta 在 GitHub 上有 147 个资源库。

项目作者还提供了一段动图展示：

项目介绍

首先来看 Vision Transformer-PyTorch 的安装、使用、参数、蒸馏等步骤。

第一步是安装：

$ pip install vit-pytorch

第二步是使用：

import torch
from vit_pytorch import ViT

v = ViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)

img = torch.randn(1, 3, 256, 256)

preds = v(img) # (1, 1000)

第三步是所需参数，包括如下：

- `image_siz`e: 内部。
图片大小。如果您有矩形图像，请确保您的图像尺寸是宽度和高度的最大值

- `patch_size`: 内部。
补丁数。`image_size`必须被 整除`patch_size`。
补丁的数量是： `n = (image_size // patch_size) ** 2`并且n 必须大于 16。

- `num_classes`: 内部。
要分类的类数。

- `dim`: 内部。
线性变换后输出张量的最后一维`nn.Linear(..., dim)`。

- `depth`: 内部。
变压器块的数量。

- `heads`: 内部。
多头注意力层中的头数。

- `mlp_dim`: 内部。
`MLP`（前馈）层的维度。

- `channels`：整数，默认3。
图像的通道数。

- `dropout`: 之间浮动[0, 1]，默认0.。

- 辍学率。
`emb_dropout`: 之间浮动[0, 1]，默认0。

- 嵌入辍学率。
`pool`: 字符串，`cls`令牌池化或`mean`池化。

蒸馏

使用蒸馏令牌将知识从卷积网络蒸馏到视觉变换器可以产生小而高效的视觉变换器。该存储库提供了轻松进行蒸馏的方法。

import torch
from torchvision.models import resnet50

from vit_pytorch.distill import DistillableViT, DistillWrapper

teacher = resnet50(pretrained = True)

v = DistillableViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 8,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)

distiller = DistillWrapper(
    student = v,
    teacher = teacher,
    temperature = 3,           # temperature of distillation
    alpha = 0.5,               # trade between main loss and distillation loss
    hard = False               # whether to use soft or hard distillation
)

img = torch.randn(2, 3, 256, 256)
labels = torch.randint(0, 1000, (2,))

loss = distiller(img, labels)
loss.backward()

# after lots of training above ...

pred = v(img) # (2, 1000)
```

该`DistillableViT`班是相同的`ViT`，除了向前传球是如何处理的，所以你应该能够加载参数回`ViT`你已经完成蒸馏训练。

您还可以`.to_vit`在`DistillableViT`实例上使用方便的方法来取回`ViT`实例。

```csharp
v = v.to_vit()
type(v) # <class 'vit_pytorch.vit_pytorch.ViT'>

深ViT

import torch
from vit_pytorch.deepvit import DeepViT

v = DeepViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)

img = torch.randn(1, 3, 256, 256)

preds = v(img) # (1, 1000)

门槛值

在更深层次上训练视觉转换器的困难，并提出了两种解决方案。首先，它建议对残差块的输出进行每通道乘法。其次，它建议让补丁互相关注，并且只允许 CLS 令牌关注最后几层的补丁。

import torch
from vit_pytorch.cait import CaiT

v = CaiT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 12,             # depth of transformer for patch to patch attention only
    cls_depth = 2,          # depth of cross attention of CLS tokens to patch
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1,
    layer_dropout = 0.05    # randomly dropout 5% of the layers
)

img = torch.randn(1, 3, 256, 256)

preds = v(img) # (1, 1000)

代币对代币 ViT

import torch
from vit_pytorch.t2t import T2TViT

v = T2TViT(
    dim = 512,
    image_size = 224,
    depth = 5,
    heads = 8,
    mlp_dim = 512,
    num_classes = 1000,
    t2t_layers = ((7, 4), (3, 2), (3, 2)) # tuples of the kernel size and stride of each consecutive layers of the initial token to token module
)

img = torch.randn(1, 3, 224, 224)

preds = v(img) # (1, 1000)

CCT

CCT通过使用卷积而不是修补和执行序列池来提出紧凑型转换器。这使得 CCT 具有高精度和少量参数。

您可以通过两种方法使用它：

import torch
from vit_pytorch.cct import CCT

model = CCT(
        img_size=224,
        embedding_dim=384,
        n_conv_layers=2,
        kernel_size=7,
        stride=2,
        padding=3,
        pooling_kernel_size=3,
        pooling_stride=2,
        pooling_padding=1,
        num_layers=14,
        num_heads=6,
        mlp_radio=3.,
        num_classes=1000,
        positional_embedding='learnable', # ['sine', 'learnable', 'none']
        )

或者，您可以使用多个预定义模型之一，这些模型`[2,4,6,7,8,14,16]` 预定义了层数、注意力头数、mlp 比率和嵌入维度。

import torch
from vit_pytorch.cct import cct_14

model = cct_14(
        img_size=224,
        n_conv_layers=1,
        kernel_size=7,
        stride=2,
        padding=3,
        pooling_kernel_size=3,
        pooling_stride=2,
        pooling_padding=1,
        num_classes=1000,
        positional_embedding='learnable', # ['sine', 'learnable', 'none']
        )

交叉 ViT

建议让两个视觉转换器处理不同尺度的图像，每隔一段时间交叉处理一个。他们展示了在基础视觉转换器之上的改进。

import torch
from vit_pytorch.cross_vit import CrossViT

v = CrossViT(
    image_size = 256,
    num_classes = 1000,
    depth = 4,               # number of multi-scale encoding blocks
    sm_dim = 192,            # high res dimension
    sm_patch_size = 16,      # high res patch size (should be smaller than lg_patch_size)
    sm_enc_depth = 2,        # high res depth
    sm_enc_heads = 8,        # high res heads
    sm_enc_mlp_dim = 2048,   # high res feedforward dimension
    lg_dim = 384,            # low res dimension
    lg_patch_size = 64,      # low res patch size
    lg_enc_depth = 3,        # low res depth
    lg_enc_heads = 8,        # low res heads
    lg_enc_mlp_dim = 2048,   # low res feedforward dimensions
    cross_attn_depth = 2,    # cross attention rounds
    cross_attn_heads = 8,    # cross attention heads
    dropout = 0.1,
    emb_dropout = 0.1
)

img = torch.randn(1, 3, 256, 256)

pred = v(img) # (1, 1000)

 PiT

建议通过使用深度卷积的池化过程对令牌进行下采样。

import torch
from vit_pytorch.pit import PiT

v = PiT(
    image_size = 224,
    patch_size = 14,
    dim = 256,
    num_classes = 1000,
    depth = (3, 3, 3),     # list of depths, indicating the number of rounds of each stage before a downsample
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)

# forward pass now returns predictions and the attention maps

img = torch.randn(1, 3, 224, 224)

preds = v(img) # (1, 1000)

LeViT

提出了一些变化，包括（1）卷积嵌入而不是逐块投影（2）阶段中的下采样（3）注意力中的额外非线性（4）二维相对位置偏差而不是初始绝对位置偏差（5 ) 批范数代替层范数。

import torch
from vit_pytorch.levit import LeViT

levit = LeViT(
    image_size = 224,
    num_classes = 1000,
    stages = 3,             # number of stages
    dim = (256, 384, 512),  # dimensions at each stage
    depth = 4,              # transformer of depth 4 at each stage
    heads = (4, 6, 8),      # heads at each stage
    mlp_mult = 2,
    dropout = 0.1
)

img = torch.randn(1, 3, 224, 224)

levit(img) # (1, 1000)

CvT

提出混合卷积和注意力。具体来说，卷积用于分三个阶段嵌入和下采样图像/特征图。深度卷积还用于投影查询、键和值以引起注意。

import torch
from vit_pytorch.cvt import CvT

v = CvT(
    num_classes = 1000,
    s1_emb_dim = 64,        # stage 1 - dimension
    s1_emb_kernel = 7,      # stage 1 - conv kernel
    s1_emb_stride = 4,      # stage 1 - conv stride
    s1_proj_kernel = 3,     # stage 1 - attention ds-conv kernel size
    s1_kv_proj_stride = 2,  # stage 1 - attention key / value projection stride
    s1_heads = 1,           # stage 1 - heads
    s1_depth = 1,           # stage 1 - depth
    s1_mlp_mult = 4,        # stage 1 - feedforward expansion factor
    s2_emb_dim = 192,       # stage 2 - (same as above)
    s2_emb_kernel = 3,
    s2_emb_stride = 2,
    s2_proj_kernel = 3,
    s2_kv_proj_stride = 2,
    s2_heads = 3,
    s2_depth = 2,
    s2_mlp_mult = 4,
    s3_emb_dim = 384,       # stage 3 - (same as above)
    s3_emb_kernel = 3,
    s3_emb_stride = 2,
    s3_proj_kernel = 3,
    s3_kv_proj_stride = 2,
    s3_heads = 4,
    s3_depth = 10,
    s3_mlp_mult = 4,
    dropout = 0.
)

img = torch.randn(1, 3, 224, 224)

pred = v(img) # (1, 1000)

Twins SVT

提出了混合本地和全球的关注，与位置编码发生器（中提出沿[CPVT]）和全球平均水平池，以达到相同的结果[斯文]，没有转移的窗户，CLS令牌，也不是位置的嵌入的额外的复杂性。

import torch
from vit_pytorch.twins_svt import TwinsSVT

model = TwinsSVT(
    num_classes = 1000,       # number of output classes
    s1_emb_dim = 64,          # stage 1 - patch embedding projected dimension
    s1_patch_size = 4,        # stage 1 - patch size for patch embedding
    s1_local_patch_size = 7,  # stage 1 - patch size for local attention
    s1_global_k = 7,          # stage 1 - global attention key / value reduction factor, defaults to 7 as specified in paper
    s1_depth = 1,             # stage 1 - number of transformer blocks (local attn -> ff -> global attn -> ff)
    s2_emb_dim = 128,         # stage 2 (same as above)
    s2_patch_size = 2,
    s2_local_patch_size = 7,
    s2_global_k = 7,
    s2_depth = 1,
    s3_emb_dim = 256,         # stage 3 (same as above)
    s3_patch_size = 2,
    s3_local_patch_size = 7,
    s3_global_k = 7,
    s3_depth = 5,
    s4_emb_dim = 512,         # stage 4 (same as above)
    s4_patch_size = 2,
    s4_local_patch_size = 7,
    s4_global_k = 7,
    s4_depth = 4,
    peg_kernel_size = 3,      # positional encoding generator kernel size
    dropout = 0.              # dropout
)

img = torch.randn(1, 3, 224, 224)

pred = model(img) # (1, 1000)

RegionViT

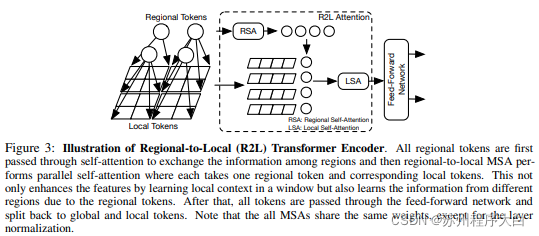

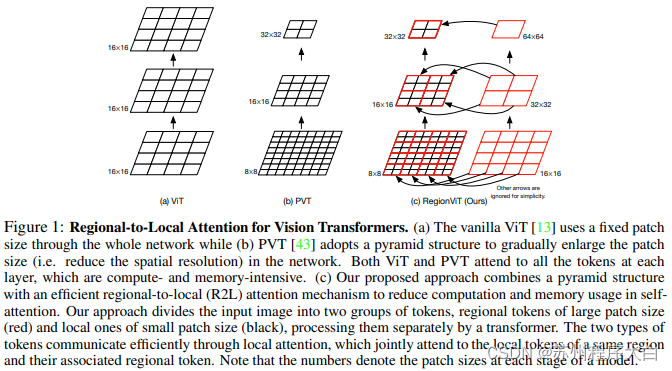

提出将特征图划分为局部区域，从而使局部标记相互协调。每个本地区域都有自己的区域令牌，然后处理其所有本地令牌以及其他区域令牌。

您可以按如下方式使用它：

import torch
from vit_pytorch.regionvit import RegionViT

model = RegionViT(
    dim = (64, 128, 256, 512),      # tuple of size 4, indicating dimension at each stage
    depth = (2, 2, 8, 2),           # depth of the region to local transformer at each stage
    window_size = 7,                # window size, which should be either 7 or 14
    num_classes = 1000,             # number of output classes
    tokenize_local_3_conv = False,  # whether to use a 3 layer convolution to encode the local tokens from the image. the paper uses this for the smaller models, but uses only 1 conv (set to False) for the larger models
    use_peg = False,                # whether to use positional generating module. they used this for object detection for a boost in performance
)

img = torch.randn(1, 3, 224, 224)

pred = model(img) # (1, 1000)

CrossFormer

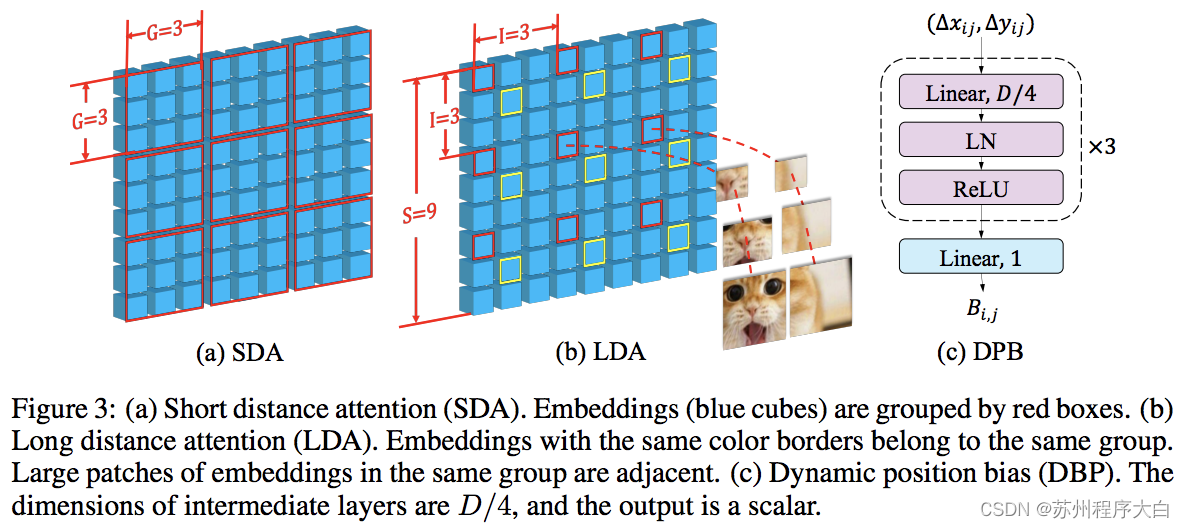

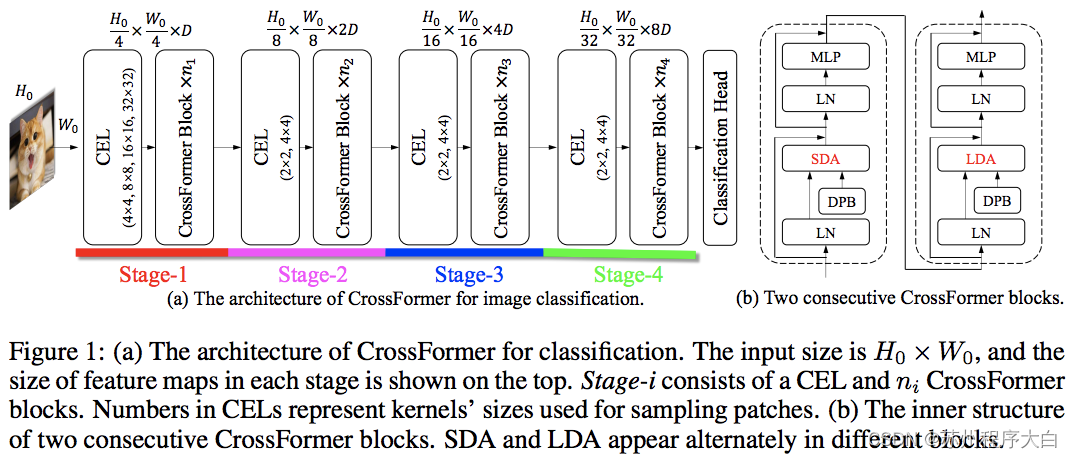

PVT和欧亚交替使用本地和全球的关注甘拜下风。全局注意力是跨窗口维度完成的，以降低复杂性，就像用于轴向注意力的方案一样。

他们还有跨尺度嵌入层，他们证明这是一个可以改进所有视觉转换器的通用层。还制定了动态相对位置偏差，以允许网络推广到更高分辨率的图像。

import torch
from vit_pytorch.crossformer import CrossFormer

model = CrossFormer(
    num_classes = 1000,                # number of output classes
    dim = (64, 128, 256, 512),         # dimension at each stage
    depth = (2, 2, 8, 2),              # depth of transformer at each stage
    global_window_size = (8, 4, 2, 1), # global window sizes at each stage
    local_window_size = 7,             # local window size (can be customized for each stage, but in paper, held constant at 7 for all stages)
)

img = torch.randn(1, 3, 224, 224)

pred = model(img) # (1, 1000)

NesT

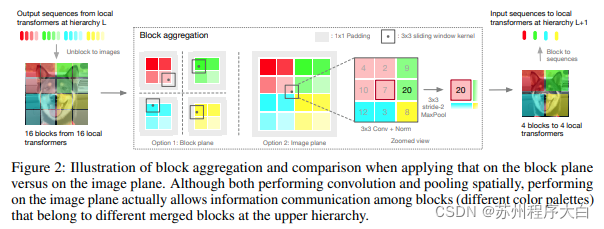

这[纸](https://arxiv.org/abs/2105.12723)决定来处理分层级的图像，注意力只在局部块，其中聚集因为它移动了层次结构的令牌。聚合是在图像平面中完成的，并包含一个卷积和后续的 maxpool，以允许它跨边界传递信息。

您可以使用以下代码（例如 NesT-T）

import torch
from vit_pytorch.nest import NesT

nest = NesT(
    image_size = 224,
    patch_size = 4,
    dim = 96,
    heads = 3,
    num_hierarchies = 3,        # number of hierarchies
    block_repeats = (8, 4, 1),  # the number of transformer blocks at each heirarchy, starting from the bottom
    num_classes = 1000
)

img = torch.randn(1, 3, 224, 224)

pred = nest(img) # (1, 1000)
