Android—NuPlayer数据解析模块详解

从图中来看

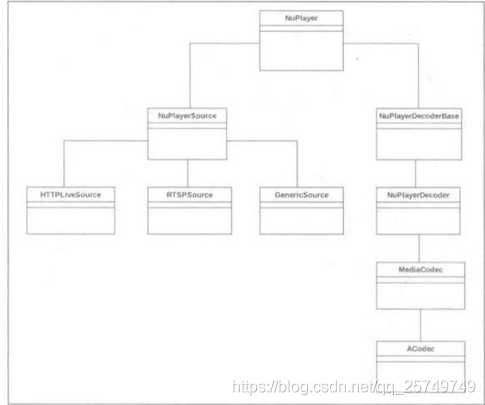

可以看到 NuPlayer 的解析模块主要是 NuPlayerSource和继承自它的HTTPLiveSource、RTSPSource、GenericSource等几个类。

在 NuPlaye r中调用 setDataSourceAsync ：

void NuPlayer::setDataSourceAsync(
        const sp<IMediaHTTPService> &httpService,
       const char *url,
      const KeyedVector<String8, String8> *headers) {

   sp<AMessage> msg = new AMessage(kWhatSetDataSource, this);
    size_t len = strlen(url);

    sp<AMessage> notify = new AMessage(kWhatSourceNotify, this);

   sp<Source> source;
    if (IsHTTPLiveURL(url)) {
        source = new HTTPLiveSource(notify, httpService, url, headers);
    } else if (!strncasecmp(url, "rtsp://", 7)) {
        source = new RTSPSource(
                notify, httpService, url, headers, mUIDValid, mUID);
    } else if ((!strncasecmp(url, "http://", 7)
               || !strncasecmp(url, "https://", 8))
                    && ((len >= 4 && !strcasecmp(".sdp", &url[len - 4]))
                    || strstr(url, ".sdp?"))) {
        source = new RTSPSource(
              notify, httpService, url, headers, mUIDValid, mUID, true);
    } else {
            sp<GenericSource> genericSource =
                new GenericSource(notify, mUIDValid, mUID);
        // Don't set FLAG_SECURE on mSourceFlags here for widevine.
        // The correct flags will be updated in Source::kWhatFlagsChanged
       // handler when  GenericSource is prepared.

        status_t err = genericSource->setDataSource(httpService, url, headers);

        if (err == OK) {
            source = genericSource;
        } else {
            ALOGE("Failed to set data source!");
       }
    }
    msg->setObject("source", source);
    msg->post();
}

这里会根据不同协议选择不同的Source（视频源）对象，有了这个Source（视频源）对象
后，发送kWhatSetDataSource消息，代码如下：

 case kWhatSetDataSource:
{
ALOGV("kWhatSetDataSource");

CHECK(mSource == NULL);

status_t err = OK;
sp<RefBase> obj;
CHECK(msg->findObject("source", &obj));
if (obj != NULL) {
mSource = static_cast<Source *>(obj.get());
} else {
err = UNKNOWN_ERROR;
}

CHECK(mDriver != NULL);
sp<NuPlayerDriver> driver = mDriver.promote();
if (driver != NULL) {
driver->notifySetDataSourceCompleted(err);
}
break;
}

也就是通过具体的 Source 解析完数据，再把 Source 强制转换成 mSource 给 Decoder 使用，这时里面就包含了数据相关信息，如几个 Track、是什么格式的等。其中的一个HTTPLiveSource，主要用于解析HLS协议。

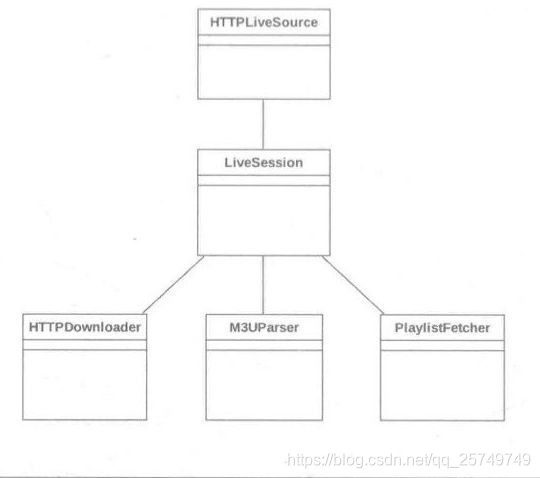

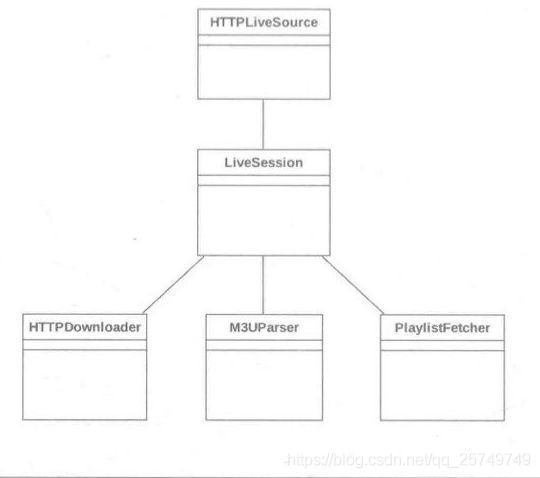

从图中可以看出HTTPLiveSource主要封装了LiveSession。 LiveSession有** HTTPDownloader ** 模块、M3UParser 模块，以及取播放列表的 PlaylistFetcher 模块。
当调用 HTTPLiveSource 的 prepareAsync 函数时，代码如下：

void NuPlayer::HTTPLiveSource::prepareAsync() {
    if (mLiveLooper == NULL) {
        mLiveLooper = new ALooper;
        mLiveLooper->setName("http live");
        mLiveLooper->start();

        mLiveLooper->registerHandler(this);
    }

    sp<AMessage> notify = new AMessage(kWhatSessionNotify, this);

    mLiveSession = new LiveSession(
            notify,
            (mFlags & kFlagIncognito) ? LiveSession::kFlagIncognito : 0,
            mHTTPService);

    mLiveLooper->registerHandler(mLiveSession);

    mLiveSession->connectAsync(
            mURL.c_str(), mExtraHeaders.isEmpty() ? NULL : &mExtraHeaders);
}

内部主要构建了一个LiveSession对象。通过LiveSession内部的 connectAsync函数，创建
一个会话：

void LiveSession::connectAsync(
        const char *url, const KeyedVector<String8, String8> *headers) {
    sp<AMessage> msg = new AMessage(kWhatConnect, this);
    msg->setString("url", url);

    if (headers != NULL) {
        msg->setPointer(
                "headers",
                new KeyedVector<String8, String8>(*headers));
    }

    msg->post();
}

接下来是onConnect

void LiveSession::onConnect(const sp<AMessage> &msg) {
    CHECK(msg->findString("url", &mMasterURL));

    // TODO currently we don't know if we are coming here from incognito mode
    ALOGI("onConnect %s", uriDebugString(mMasterURL).c_str());

    KeyedVector<String8, String8> *headers = NULL;
    if (!msg->findPointer("headers", (void **)&headers)) {
        mExtraHeaders.clear();
    } else {
        mExtraHeaders = *headers;

        delete headers;
        headers = NULL;
    }

    // create looper for fetchers
    if (mFetcherLooper == NULL) {
        mFetcherLooper = new ALooper();

        mFetcherLooper->setName("Fetcher");
        mFetcherLooper->start(false, false);
    }

    // create fetcher to fetch the master playlist
    addFetcher(mMasterURL.c_str())->fetchPlaylistAsync();
}

网络请求，开始取播放列表。在取到播放列表后，会进行回调：

void LiveSession::onMasterPlaylistFetched(const sp<AMessage> &msg) {
    AString uri;
    CHECK(msg->findString("uri", &uri));
    ssize_t index = mFetcherInfos.indexOfKey(uri);
    if (index < 0) {
        ALOGW("fetcher for master playlist is gone.");
        return;
    }

    // no longer useful, remove
    mFetcherLooper->unregisterHandler(mFetcherInfos[index].mFetcher->id());
    mFetcherInfos.removeItemsAt(index);

    CHECK(msg->findObject("playlist", (sp<RefBase> *)&mPlaylist));
    if (mPlaylist == NULL) {
        ALOGE("unable to fetch master playlist %s.",
                uriDebugString(mMasterURL).c_str());

        postPrepared(ERROR_IO);
        return;
    }
    // We trust the content provider to make a reasonable choice of preferred
    // initial bandwidth by listing it first in the variant playlist.
    // At startup we really don't have a good estimate on the available
    // network bandwidth since we haven't tranferred any data yet. Once
    // we have we can make a better informed choice.
    size_t initialBandwidth = 0;
    size_t initialBandwidthIndex = 0;

    int32_t maxWidth = 0;
    int32_t maxHeight = 0;

   if (mPlaylist->isVariantPlaylist()) {
       Vector<BandwidthItem> itemsWithVideo;
       for (size_t i = 0; i < mPlaylist->size(); ++i) {
            BandwidthItem item;

            item.mPlaylistIndex = i;
            item.mLastFailureUs = -1ll;

            sp<AMessage> meta;
            AString uri;
            mPlaylist->itemAt(i, &uri, &meta);

            CHECK(meta->findInt32("bandwidth", (int32_t *)&item.mBandwidth));

            int32_t width, height;
            if (meta->findInt32("width", &width)) {
               maxWidth = max(maxWidth, width);
            }
            if (meta->findInt32("height", &height)) {
                maxHeight = max(maxHeight, height);
           }

            mBandwidthItems.push(item);
            if (mPlaylist->hasType(i, "video")) {
                itemsWithVideo.push(item);
            }
        }
        // remove the audio-only variants if we have at least one with video
        if (!itemsWithVideo.empty()
                && itemsWithVideo.size() < mBandwidthItems.size()) {
           mBandwidthItems.clear();
            for (size_t i = 0; i < itemsWithVideo.size(); ++i) {
                mBandwidthItems.push(itemsWithVideo[i]);
            }
        }

        CHECK_GT(mBandwidthItems.size(), 0u);
        initialBandwidth = mBandwidthItems[0].mBandwidth;

        mBandwidthItems.sort(SortByBandwidth);

        for (size_t i = 0; i < mBandwidthItems.size(); ++i) {
            if (mBandwidthItems.itemAt(i).mBandwidth == initialBandwidth) {
                initialBandwidthIndex = i;
               break;
            }
        }
    } else {
        // dummy item.
        BandwidthItem item;
        item.mPlaylistIndex = 0;
        item.mBandwidth = 0;
        mBandwidthItems.push(item);
    }

    mMaxWidth = maxWidth > 0 ? maxWidth : mMaxWidth;
    mMaxHeight = maxHeight > 0 ? maxHeight : mMaxHeight;

    mPlaylist->pickRandomMediaItems();
    changeConfiguration(
            0ll /* timeUs */, initialBandwidthIndex, false /* pickTrack */);
}

上面的代码主要是根据 URL返回的 M3U文件，获取对应的 Bandwidthltem，如果熟悉M3U文件，可以知道M3U文件有一级索引和二级索引，M3U一级索引内容举例如下

#EXTM3U
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=200000
gear1/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=311111
gear2/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=484444
gear3/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=737777
gear4/prog_index.m3u8

其主要作用是动态码率适应，BANDWIDTH 越大，分辨率越高。BANDWIDTH 实际上就是带宽。
例如，想要获得某个 Track的信息，得到视频、音频、字幕相关信息，可以通过LiveSession 的 getTrackInfo 函数：

sp<AMessage> LiveSession::getTrackInfo(size_t trackIndex) const {
    if (mPlaylist == NULL) {
        return NULL;
    } else {
        if (trackIndex == mPlaylist->getTrackCount() && mHasMetadata) {
            sp<AMessage> format = new AMessage();
            format->setInt32("type", MEDIA_TRACK_TYPE_METADATA);
            format->setString("language", "und");
            format->setString("mime", MEDIA_MIMETYPE_DATA_TIMED_ID3);
            return format;
        }
        return mPlaylist->getTrackInfo(trackIndex);
    }
}
