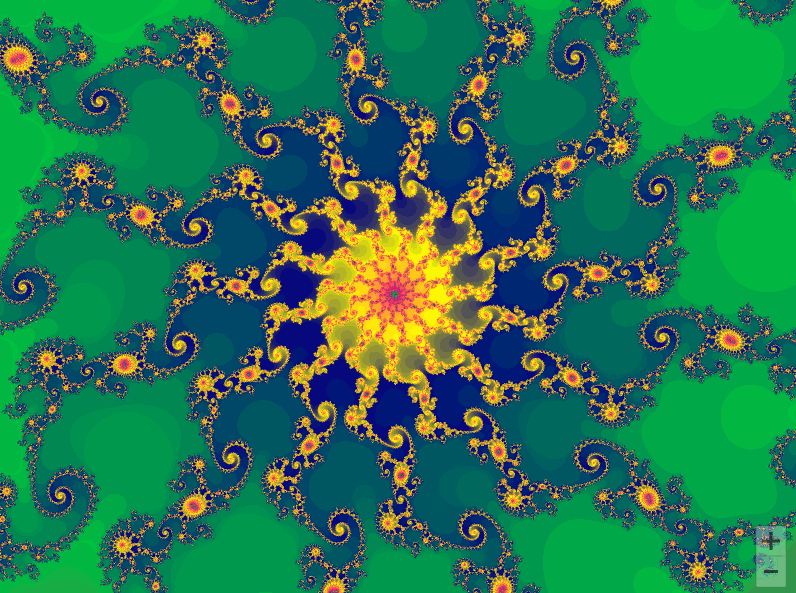

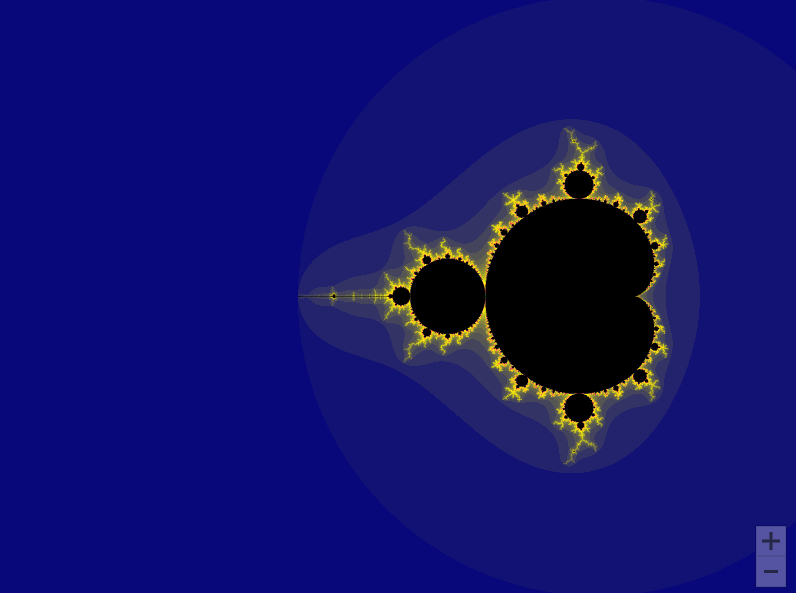

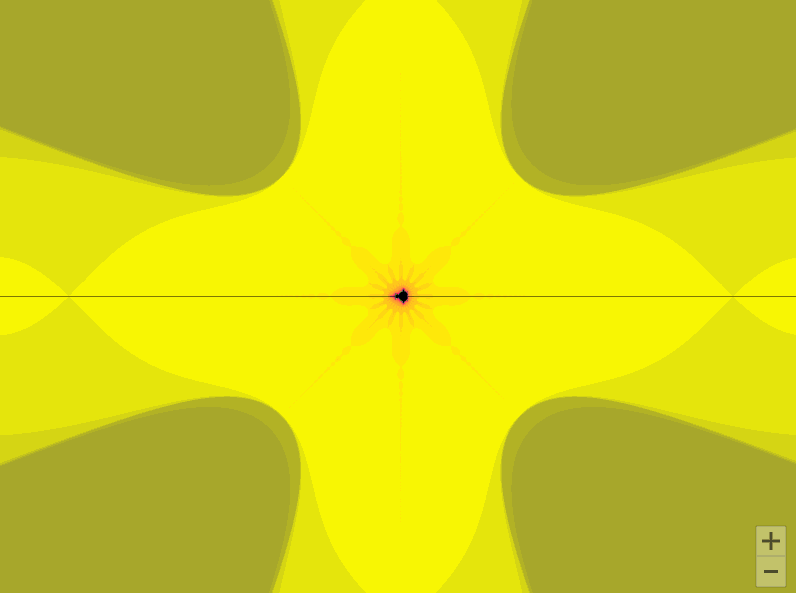

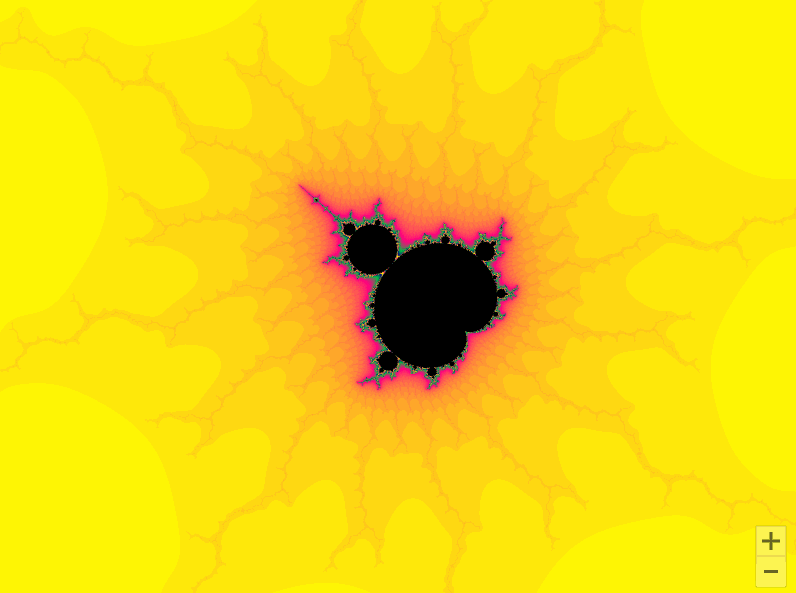

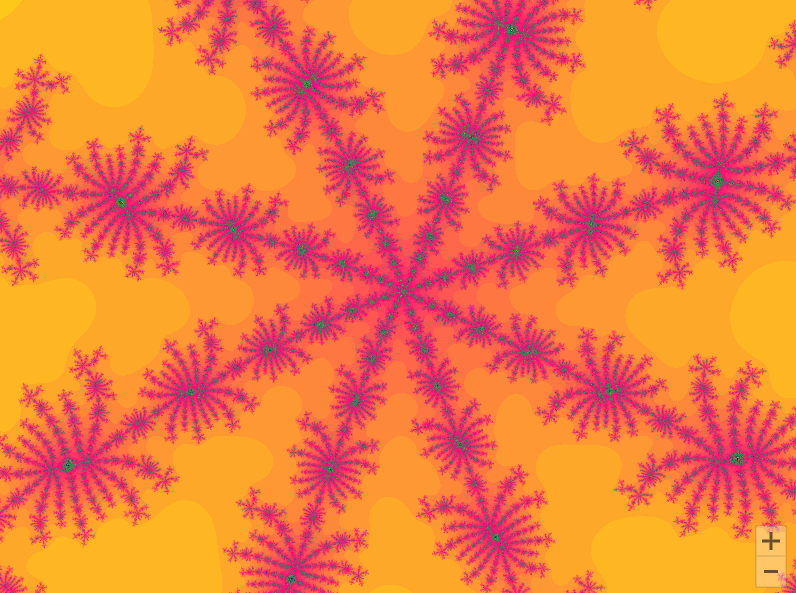

01曼德勃罗集合

曼德勃罗集合就是复平面上的点$c$，对于下面二次迭代方程收敛。

$$z_{n+1}=z_n^2+c$$

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST1.PY                     -- by Dr. ZhuoQing 2020-06-10
#
# Note:
#============================================================

from headm import *
import pylab as pl
from matplotlib             import cm

def iter_point(c):
    z = c
    for i in range(1, 100):
        if abs(z) > 2: break
        z = z*z+c
    return i

def draw_mandelbrot(cx, cy, d):
    x0, x1, y0, y1 = cx-d, cx+d, cy-d, cy+d
    y, x = ogrid[y0:y1:200j, x0:x1:200j]
    c = x + y*1j

    start = time.process_time()
    mandelbrot = frompyfunc(iter_point, 1, 1)(c).astype(float)

    printf('Time=%f'%(time.process_time() - start))
    pl.imshow(mandelbrot, cmap=cm.jet, extent=[x0, x1, y0, y1])
    pl.gca().set_axis_off()

x,y = 0.27322626, 0.595153338

plt.subplot(231)
draw_mandelbrot(-0.5, 0, 1.5)

for i in range(2, 7):
    pl.subplot(230+i)
    draw_mandelbrot(x, y, 0.2**(i - 1))

pl.subplots_adjust(0.0, 0, 1, 1, 0.0, 0)
pl.show()

#------------------------------------------------------------
#        END OF FILE : TEST1.PY
#============================================================






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46


02分形树叶

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST2.PY                     -- by Dr. ZhuoQing 2020-06-10
#
# Note:
#============================================================

from headm import *

import numpy as np
import matplotlib.pyplot as pl
import time

# 蕨类植物叶子的迭代函数和其概率值
eq1 = np.array([[0,0,0],[0,0.16,0]])
p1 = 0.01

eq2 = np.array([[0.2,-0.26,0],[0.23,0.22,1.6]])
p2 = 0.07

eq3 = np.array([[-0.15, 0.28, 0],[0.26,0.24,0.44]])
p3 = 0.07

eq4 = np.array([[0.85, 0.04, 0],[-0.04, 0.85, 1.6]])
p4 = 0.85

def ifs(p, eq, init, n):
    """
    进行函数迭代
    p: 每个函数的选择概率列表
    eq: 迭代函数列表
    init: 迭代初始点
    n: 迭代次数

    返回值： 每次迭代所得的X坐标数组， Y坐标数组， 计算所用的函数下标
    """

    # 迭代向量的初始化
    pos = np.ones(3, dtype=np.float)
    pos[:2] = init

    # 通过函数概率，计算函数的选择序列
    p = np.add.accumulate(p)
    rands = np.random.rand(n)
    select = np.ones(n, dtype=np.int)*(n-1)
    for i, x in enumerate(p[::-1]):
        select[rands<x] = len(p)-i-1

    # 结果的初始化
    result = np.zeros((n,2), dtype=np.float)
    c = np.zeros(n, dtype=np.float)

    for i in range(n):
        eqidx = select[i] # 所选的函数下标
        tmp = np.dot(eq[eqidx], pos) # 进行迭代
        pos[:2] = tmp # 更新迭代向量

        # 保存结果
        result[i] = tmp
        c[i] = eqidx

    return result[:,0], result[:, 1], c

start = time.clock()
x, y, c = ifs([p1,p2,p3,p4],[eq1,eq2,eq3,eq4], [0,0], 100000)
time.clock() - start
pl.figure(figsize=(6,6))
pl.subplot(121)
pl.scatter(x, y, s=1, c="g", marker="s", linewidths=0)
pl.axis("equal")
pl.axis("off")
pl.subplot(122)
pl.scatter(x, y, s=1,c = c, marker="s", linewidths=0)
pl.axis("equal")
pl.axis("off")
pl.subplots_adjust(left=0,right=1,bottom=0,top=1,wspace=0,hspace=0)
pl.gcf().patch.set_facecolor("#D3D3D3")
pl.show()

#------------------------------------------------------------
#        END OF FILE : TEST2.PY
#============================================================






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83
