ORACLE12CR2 RAC安装部署（REDHAT7.6）四、Grid root.sh错误解决方案

解决方案：（需要在执行root.sh之前执行该命令）

MOS文档Workround:
As GI User:

$ export ORACLE_HOME=<Oracle Home>
$ /usr/bin/make -f ins_rdbms.mk client_sharedlib libasmclntsh12.ohso
libasmperl12.ohso ORACLE_HOME=$ORACLE_HOME

##执行过程:
[grid@fdcdb01 ~]$ /usr/bin/make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk client_sharedlib libasmclntsh12.ohso libasmperl12.ohso ORACLE_HOME=/u01/app/12.2.0/grid
/u01/app/12.2.0/grid/bin/genclntsh
/bin/rm: cannot remove '/u01/app/12.2.0/grid/lib/libclntshcore.so.12.1': Permission denied
genclntsh: Failed to remove /u01/app/12.2.0/grid/lib/libclntshcore.so.12.1
make: *** [client_sharedlib] Error 1

##用grid用户执行会报错，需要以root用户执行：

/usr/bin/make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk client_sharedlib libasmclntsh12.ohso libasmperl12.ohso ORACLE_HOME=/u01/app/12.2.0/grid

##执行成功后可以进入asmcmd
[grid@fdcdb01 ~]$ asmcmd -p
ASMCMD [+] >
ASMCMD [+] >

##命令执行结果如下：
[root@fdcdb01 install]# /usr/bin/make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk client_sharedlib libasmclntsh12.ohso libasmperl12.ohso ORACLE_HOME=/u01/app/12.2.0/grid
/u01/app/12.2.0/grid/bin/genclntsh
`if [ -d /u01/app/12.2.0/grid/lib32 ]; then rm -f /u01/app/12.2.0/grid/lib32/libclntsh.so.10.1; rm -f /u01/app/12.2.0/grid/lib/libclntsh.so.10.1; rm -f /u01/app/12.2.0/grid/lib32/libclntsh.so.11.1; rm -f /u01/app/12.2.0/grid/lib/libclntsh.so.11.1; else rm -f /u01/app/12.2.0/grid/lib/libclntsh.so.10.1; rm -f /u01/app/12.2.0/grid/lib/libclntsh.so.11.1; fi `
`if [ -d /u01/app/12.2.0/grid/lib32 ]; then ln -s libclntsh.so /u01/app/12.2.0/grid/lib32/libclntsh.so.10.1; ln -s libclntsh.so /u01/app/12.2.0/grid/lib/libclntsh.so.10.1; ln -s libclntsh.so /u01/app/12.2.0/grid/lib32/libclntsh.so.11.1; ln -s libclntsh.so /u01/app/12.2.0/grid/lib/libclntsh.so.11.1; else ln -s libclntsh.so /u01/app/12.2.0/grid/lib/libclntsh.so.10.1; ln -s libclntsh.so /u01/app/12.2.0/grid/lib/libclntsh.so.11.1; fi `
/u01/app/12.2.0/grid/bin/genoccish
/u01/app/12.2.0/grid/bin/genagtsh /u01/app/12.2.0/grid/lib/libagtsh.so 1.0
make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk ALWAYS=always /u01/app/12.2.0/grid/lib/libasmclntsh12.so
make[1]: Entering directory `/u01/app/12.2.0/grid/install'
rm -f /u01/app/12.2.0/grid/lib/libasmclntsh12.so
/u01/app/12.2.0/grid/bin/linkshlib /u01/app/12.2.0/grid/lib/libasmclntsh12.so /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk so ld_shlib LIBS
+ PATH=/bin:/usr/bin:/usr/ccs/bin
+ export PATH
+ lib=/u01/app/12.2.0/grid/lib/libasmclntsh12.so
+ makefile=/u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk
+ so_ext=so
+ target=ld_shlib
++ basename /u01/app/12.2.0/grid/lib/libasmclntsh12.so .so
+ libname=libasmclntsh12
++ dirname /u01/app/12.2.0/grid/lib/libasmclntsh12.so
+ sodir=/u01/app/12.2.0/grid/lib
+ ardir=/u01/app/12.2.0/grid/lib/
+ '[' var = ld_shlib ']'
+ suffix=LIBS
+ var=
+ '[' '!' -f /u01/app/12.2.0/grid/lib/libasmclntsh12.a ']'
+ '[' '' '!=' '' ']'
+ make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk ld_shlib _FULL_LIBNAME=/u01/app/12.2.0/grid/lib/libasmclntsh12.so _LIBNAME=libasmclntsh12 _LIBDIR=/u01/app/12.2.0/grid/lib/ '_LIBNAME_LIBS=$(libasmclntsh12LIBS)' '_LIBNAME_EXTRALIBS=$(libasmclntsh12EXTRALIBS)'
make[2]: Entering directory `/u01/app/12.2.0/grid/install'
/u01/app/12.2.0/grid/bin/orald -o /u01/app/12.2.0/grid/lib/libasmclntsh12.so -shared -z noexecstack -Wl,--disable-new-dtags -L/tmp/bootstraplib/ -L/u01/app/12.2.0/grid/lib/ -L/u01/app/12.2.0/grid/rdbms/lib/ -L/u01/app/12.2.0/grid/lib/stubs/ -Wl,--version-script=/u01/app/12.2.0/grid/rdbms/admin/libasmclntsh12.def -Wl,--whole-archive /u01/app/12.2.0/grid/lib/libasmclntsh12.a -Wl,--no-whole-archive    -lirc
make[2]: Leaving directory `/u01/app/12.2.0/grid/install'
make[1]: Leaving directory `/u01/app/12.2.0/grid/install'
make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk ALWAYS=always /u01/app/12.2.0/grid/lib/libasmperl12.so
make[1]: Entering directory `/u01/app/12.2.0/grid/install'
rm -f /u01/app/12.2.0/grid/lib/libasmperl12.so
/u01/app/12.2.0/grid/bin/linkshlib /u01/app/12.2.0/grid/lib/libasmperl12.so /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk so dlopenlib LIBS
+ PATH=/bin:/usr/bin:/usr/ccs/bin
+ export PATH
+ lib=/u01/app/12.2.0/grid/lib/libasmperl12.so
+ makefile=/u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk
+ so_ext=so
+ target=dlopenlib
++ basename /u01/app/12.2.0/grid/lib/libasmperl12.so .so
+ libname=libasmperl12
++ dirname /u01/app/12.2.0/grid/lib/libasmperl12.so
+ sodir=/u01/app/12.2.0/grid/lib
+ ardir=/u01/app/12.2.0/grid/lib/
+ '[' var = dlopenlib ']'
+ suffix=LIBS
+ var=
+ '[' '!' -f /u01/app/12.2.0/grid/lib/libasmperl12.a ']'
+ '[' '' '!=' '' ']'
+ make -f /u01/app/12.2.0/grid/rdbms/lib/ins_rdbms.mk dlopenlib _FULL_LIBNAME=/u01/app/12.2.0/grid/lib/libasmperl12.so _LIBNAME=libasmperl12 _LIBDIR=/u01/app/12.2.0/grid/lib/ '_LIBNAME_LIBS=$(libasmperl12LIBS)' '_LIBNAME_EXTRALIBS=$(libasmperl12EXTRALIBS)'
make[2]: Entering directory `/u01/app/12.2.0/grid/install'
/u01/app/12.2.0/grid/bin/orald -o /u01/app/12.2.0/grid/lib/libasmperl12.so -shared -z noexecstack -Wl,--disable-new-dtags -L/tmp/bootstraplib/ -L/u01/app/12.2.0/grid/lib/ -L/u01/app/12.2.0/grid/rdbms/lib/ -L/u01/app/12.2.0/grid/lib/stubs/ -Wl,--version-script=/u01/app/12.2.0/grid/rdbms/admin/libasmperl12.def -Wl,--whole-archive /u01/app/12.2.0/grid/lib/libasmperl12.a -Wl,--no-whole-archive -lclntsh -lclntshcore -lasmclntsh12 -lhasgen12 -locr12   -lirc
make[2]: Leaving directory `/u01/app/12.2.0/grid/install'
make[1]: Leaving directory `/u01/app/12.2.0/grid/install'

重新执行root.sh：

[root@fdcdb01 ~]# /u01/app/12.2.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/12.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/12.2.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/fdcdb01/crsconfig/rootcrs_fdcdb01_2021-04-01_05-39-52PM.log
2021/04/01 17:39:55 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2021/04/01 17:39:55 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2021/04/01 17:39:56 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2021/04/01 17:39:56 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2021/04/01 17:39:57 CLSRSC-363: User ignored prerequisites during installation
2021/04/01 17:39:57 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2021/04/01 17:39:59 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2021/04/01 17:40:02 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2021/04/01 17:40:03 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2021/04/01 17:40:12 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2021/04/01 17:40:12 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2021/04/01 17:40:14 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2021/04/01 17:40:15 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2021/04/01 17:40:15 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2021/04/01 17:40:16 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2021/04/01 17:40:16 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2021/04/01 17:40:22 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2021/04/01 17:40:23 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2021/04/01 17:40:28 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.crsd' on 'fdcdb01'
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on server 'fdcdb01'
CRS-2673: Attempting to stop 'ora.fdcdb01.vip' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.qosmserver' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.OCR.dg' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN1.lsnr' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.cvu' on 'fdcdb01'
CRS-2677: Stop of 'ora.OCR.dg' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'fdcdb01'
CRS-2677: Stop of 'ora.cvu' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.LISTENER_SCAN1.lsnr' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.scan1.vip' on 'fdcdb01'
CRS-2677: Stop of 'ora.asm' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.ASMNET1LSNR_ASM.lsnr' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.ASMNET2LSNR_ASM.lsnr' on 'fdcdb01'
CRS-2677: Stop of 'ora.fdcdb01.vip' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.qosmserver' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.scan1.vip' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.ASMNET1LSNR_ASM.lsnr' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.ASMNET2LSNR_ASM.lsnr' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.ons' on 'fdcdb01'
CRS-2677: Stop of 'ora.ons' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.net1.network' on 'fdcdb01'
CRS-2677: Stop of 'ora.net1.network' on 'fdcdb01' succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'fdcdb01' has completed
CRS-2677: Stop of 'ora.crsd' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.storage' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.crf' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.gpnpd' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'fdcdb01'
CRS-2677: Stop of 'ora.drivers.acfs' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.crf' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.gpnpd' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.storage' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'fdcdb01'
CRS-2677: Stop of 'ora.mdnsd' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.asm' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.cluster_interconnect.haip' on 'fdcdb01'
CRS-2677: Stop of 'ora.cluster_interconnect.haip' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.ctssd' on 'fdcdb01'
CRS-2673: Attempting to stop 'ora.evmd' on 'fdcdb01'
CRS-2677: Stop of 'ora.ctssd' on 'fdcdb01' succeeded
CRS-2677: Stop of 'ora.evmd' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'fdcdb01'
CRS-2677: Stop of 'ora.cssd' on 'fdcdb01' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'fdcdb01'
CRS-2677: Stop of 'ora.gipcd' on 'fdcdb01' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'fdcdb01' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2021/04/01 17:40:57 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.mdnsd' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.evmd' on 'fdcdb01'
CRS-2676: Start of 'ora.mdnsd' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.evmd' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'fdcdb01'
CRS-2676: Start of 'ora.gpnpd' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'fdcdb01'
CRS-2676: Start of 'ora.gipcd' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'fdcdb01'
CRS-2676: Start of 'ora.cssdmonitor' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.diskmon' on 'fdcdb01'
CRS-2676: Start of 'ora.diskmon' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.cssd' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.ctssd' on 'fdcdb01'
CRS-2676: Start of 'ora.ctssd' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'fdcdb01'
CRS-2676: Start of 'ora.asm' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.storage' on 'fdcdb01'
CRS-2676: Start of 'ora.storage' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'fdcdb01'
CRS-2676: Start of 'ora.crf' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'fdcdb01'
CRS-2676: Start of 'ora.crsd' on 'fdcdb01' succeeded
CRS-6023: Starting Oracle Cluster Ready Services-managed resources
CRS-2664: Resource 'ora.OCR.dg' is already running on 'fdcdb01'
CRS-6017: Processing resource auto-start for servers: fdcdb01
CRS-2672: Attempting to start 'ora.scan1.vip' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.fdcdb01.vip' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.qosmserver' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.cvu' on 'fdcdb01'
CRS-2672: Attempting to start 'ora.ons' on 'fdcdb01'
CRS-2676: Start of 'ora.cvu' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.qosmserver' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.fdcdb01.vip' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.scan1.vip' on 'fdcdb01' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN1.lsnr' on 'fdcdb01'
CRS-2676: Start of 'ora.ons' on 'fdcdb01' succeeded
CRS-2676: Start of 'ora.LISTENER_SCAN1.lsnr' on 'fdcdb01' succeeded
CRS-6016: Resource auto-start has completed for server fdcdb01
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2021/04/01 17:42:26 CLSRSC-343: Successfully started Oracle Clusterware stack
2021/04/01 17:42:26 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2021/04/01 17:42:28 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2021/04/01 17:42:48 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded

执行成功。

节点二执行root.sh：

[root@fdcdb02 12.2.0]# /u01/app/12.2.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/12.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/12.2.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/fdcdb02/crsconfig/rootcrs_fdcdb02_2021-04-01_05-45-05PM.log
2021/04/01 17:45:06 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2021/04/01 17:45:06 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2021/04/01 17:45:07 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2021/04/01 17:45:07 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2021/04/01 17:45:08 CLSRSC-363: User ignored prerequisites during installation
2021/04/01 17:45:08 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2021/04/01 17:45:09 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2021/04/01 17:45:09 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2021/04/01 17:45:11 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2021/04/01 17:45:26 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2021/04/01 17:45:26 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2021/04/01 17:45:27 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2021/04/01 17:45:28 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2021/04/01 17:46:14 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2021/04/01 17:46:15 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2021/04/01 17:46:31 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2021/04/01 17:46:57 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2021/04/01 17:46:58 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'fdcdb02'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'fdcdb02' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
2021/04/01 17:47:32 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2021/04/01 17:47:33 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'fdcdb02'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'fdcdb02' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'fdcdb02'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'fdcdb02'
CRS-2677: Stop of 'ora.drivers.acfs' on 'fdcdb02' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'fdcdb02' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2021/04/01 17:47:40 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.mdnsd' on 'fdcdb02'
CRS-2672: Attempting to start 'ora.evmd' on 'fdcdb02'
CRS-2676: Start of 'ora.mdnsd' on 'fdcdb02' succeeded
CRS-2676: Start of 'ora.evmd' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'fdcdb02'
CRS-2676: Start of 'ora.gpnpd' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'fdcdb02'
CRS-2676: Start of 'ora.gipcd' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'fdcdb02'
CRS-2676: Start of 'ora.cssdmonitor' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'fdcdb02'
CRS-2672: Attempting to start 'ora.diskmon' on 'fdcdb02'
CRS-2676: Start of 'ora.diskmon' on 'fdcdb02' succeeded
CRS-2676: Start of 'ora.cssd' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'fdcdb02'
CRS-2672: Attempting to start 'ora.ctssd' on 'fdcdb02'
CRS-2676: Start of 'ora.ctssd' on 'fdcdb02' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'fdcdb02'
CRS-2676: Start of 'ora.asm' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.storage' on 'fdcdb02'
CRS-2676: Start of 'ora.storage' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'fdcdb02'
CRS-2676: Start of 'ora.crf' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'fdcdb02'
CRS-2676: Start of 'ora.crsd' on 'fdcdb02' succeeded
CRS-6017: Processing resource auto-start for servers: fdcdb02
CRS-2672: Attempting to start 'ora.net1.network' on 'fdcdb02'
CRS-2672: Attempting to start 'ora.ASMNET1LSNR_ASM.lsnr' on 'fdcdb02'
CRS-2672: Attempting to start 'ora.ASMNET2LSNR_ASM.lsnr' on 'fdcdb02'
CRS-2676: Start of 'ora.net1.network' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.ons' on 'fdcdb02'
CRS-2676: Start of 'ora.ASMNET1LSNR_ASM.lsnr' on 'fdcdb02' succeeded
CRS-2676: Start of 'ora.ASMNET2LSNR_ASM.lsnr' on 'fdcdb02' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'fdcdb02'
CRS-2676: Start of 'ora.ons' on 'fdcdb02' succeeded
CRS-2676: Start of 'ora.asm' on 'fdcdb02' succeeded
CRS-6016: Resource auto-start has completed for server fdcdb02
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2021/04/01 17:49:04 CLSRSC-343: Successfully started Oracle Clusterware stack
2021/04/01 17:49:04 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2021/04/01 17:49:12 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2021/04/01 17:49:20 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded

节点二root.sh执行成功。

[grid@fdcdb01 grid]$ ./gridSetup.sh -applyPSU /soft/32226491/
Preparing the home to patch...
Applying the patch /soft/32226491/...
Successfully applied the patch.
The log can be found at: /u01/app/oraInventory/logs/GridSetupActions2021-04-01_04-18-54PM/installerPatchActions_2021-04-01_04-18-54PM.log
Launching Oracle Grid Infrastructure Setup Wizard...

You can find the log of this install session at:
 /u01/app/oraInventory/logs/GridSetupActions2021-04-01_04-18-54PM/gridSetupActions2021-04-01_04-18-54PM.log

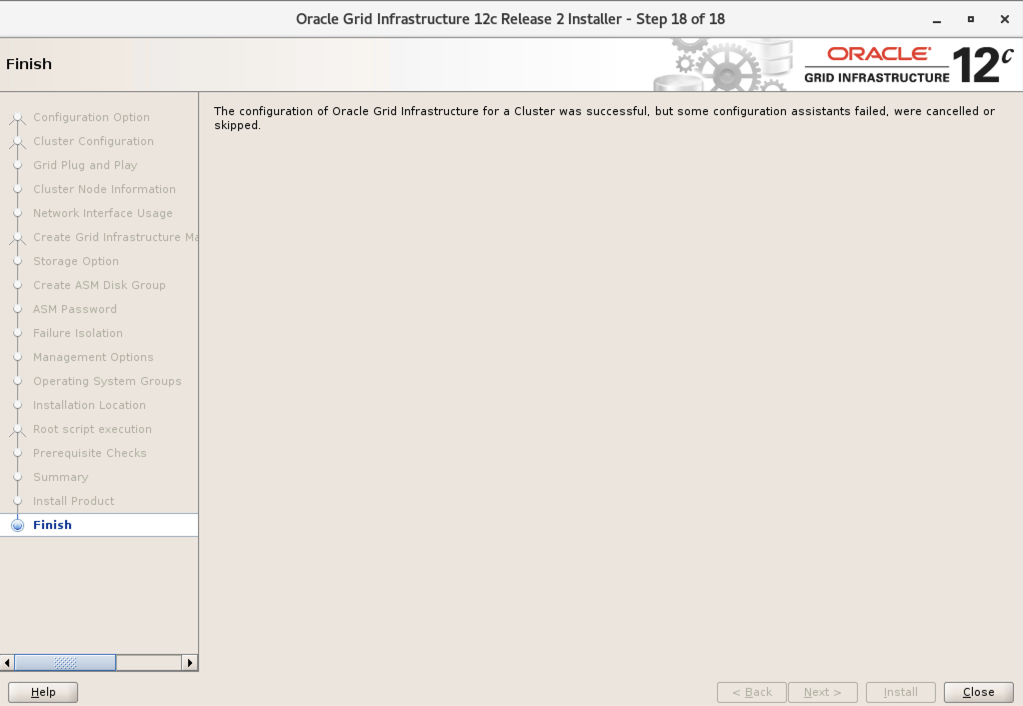

GRID软件安装成功。
