(精华)2020年9月20日 ASP.NET Core WebAPI数据协议OData的使用
【摘要】
基本使用
首先注册Odata协议 引入
Microsoft.AspNetCore.OData
1
public static class ModelBuilder
{
pub...
基本使用
首先注册Odata协议
引入
Microsoft.AspNetCore.OData
- 1
public static class ModelBuilder
{
public static IEdmModel GetEdmModel()
{
var odataBuilder = new ODataConventionModelBuilder();
odataBuilder.EntitySet<Person>("Person");
return odataBuilder.GetEdmModel();
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
public class Person
{
public int Id { get; set; }
public string Name { get; set; }
public int Age { get; set; }
}
- 1
- 2
- 3
- 4
- 5
- 6
public class Startup
{
public Startup(IConfiguration configuration)
{
Configuration = configuration;
}
public IConfiguration Configuration { get; }
// This method gets called by the runtime. Use this method to add services to the container.
public void ConfigureServices(IServiceCollection services)
{
services.AddControllers();
services.AddOData();
}
// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
if (env.IsDevelopment())
{
app.UseDeveloperExceptionPage();
}
app.UseRouting();
app.UseAuthorization();
app.UseEndpoints(endpoints =>
{
endpoints.MapControllers();
endpoints.Select().Filter().OrderBy().Count().MaxTop(10);
endpoints.MapODataRoute("odata", "odata",ModelBuilder.GetEdmModel());
});
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
使用
[Route("api/[controller]")]
[ApiController]
public class PersonController : ODataController
{
public static IList<Person> Persons = new List<Person>
{
new Person {Id = 1, Name = "张三", Age = 18},
new Person {Id = 2, Name = "李四", Age = 19},
new Person {Id = 3, Name = "王五", Age = 20},
new Person {Id = 4, Name = "赵六", Age = 21},
};
[HttpGet, EnableQuery]
public ActionResult Get()
{
return Ok(Persons);
}
[HttpGet, EnableQuery]
public IActionResult Get([FromODataUri]int key)
{
return Ok(Persons.FirstOrDefault(b => b.Id == key));
}
[HttpPost]
public IActionResult Post(Person person)
{
Persons.Add(person);
return Created(person);
}
[HttpPatch]
public IActionResult Patch([FromODataUri] int key, Delta<Person> person)
{
var updatePerson = Persons.FirstOrDefault(p => p.Id == key);
if (updatePerson == null) return NotFound();
person.Patch(updatePerson);
return Updated(updatePerson);
}
[HttpDelete]
public IActionResult Delete([FromODataUri] int key)
{
var deletePerson = Persons.FirstOrDefault(p => p.Id == key);
if (deletePerson == null) return NotFound();
Persons.Remove(deletePerson);
return StatusCode(204);
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 运行程序后访问https://localhost:5001/odata/$metadata地址，可以看到所有可用模型的元数据。
//获取所有
GET http://localhost:63372/odata/Person
//获取id查询
GET http://localhost:63372/odata/Person(1)
//select
GET http://localhost:63372/odata/Person/?$select=Name,age
//select混合使用
GET http://localhost:63372/odata/Person/?$select=Name&$count=true&$orderby=age desc&$top=2&$skip=1
//过滤，按属性值
GET http://localhost:63372/odata/Person/?$filter=name eq '李四'
//过滤，按表达式-还可以使用各种函数startswith(name,'李')
GET http://localhost:63372/odata/Person/?$filter=Id add 2 eq 4
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
OData客户端的使用

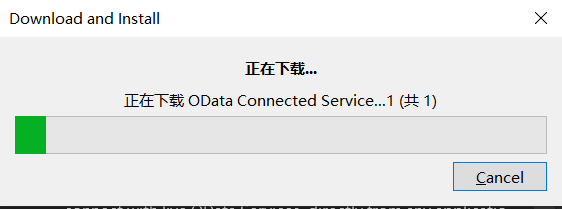

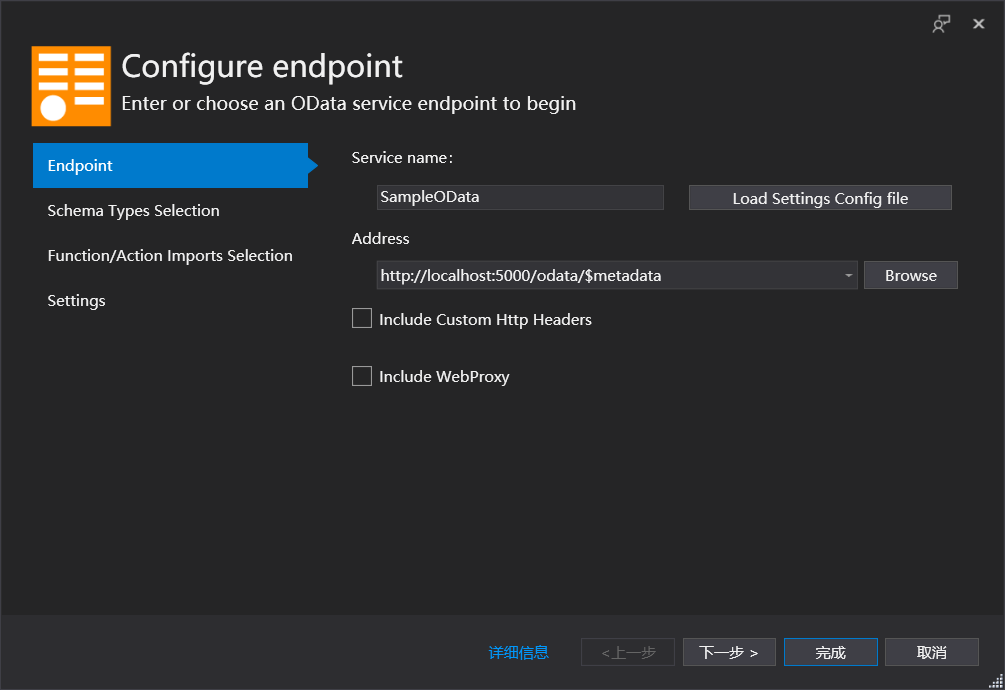

首先安装扩展
使用
public static void Run()
{
const string serviceRoot = "http://localhost:5000/odata/";
var context = new Container(new Uri(serviceRoot));
var persons = context.Person.Execute();
foreach (var person in persons)
{
Console.WriteLine($"{person.Id} {person.Name} {person.Age}");
}
Console.Read();
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
public static void Run()
{
var serviceCollection = new ServiceCollection();
serviceCollection.AddODataClient();
var serviceProvider = serviceCollection.BuildServiceProvider();
var oDataClientFactory = serviceProvider.GetService<IODataClientFactory>();
var client = oDataClientFactory.CreateClient<Container>(new Uri("http://localhost:5000/odata/"));
var persons = client.Person.Execute();
foreach (var person in persons)
{
Console.WriteLine($"{person.Id} {person.Name} {person.Age}");
}
Console.Read();
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
public static void Run()
{
const string serviceRoot = "http://localhost:5000/odata/";
var client = new Container(new Uri(serviceRoot));
// var query = client.Person.Where(p => p.Age >= 20).OrderByDescending(p=>p.Age);
// Console.WriteLine($"QueryUri:{query}");
//
// var result = query.ToList();
// foreach (var person in result)
// {
// Console.WriteLine($"{person.Id} {person.Name} {person.Age}");
// }
// {
// // var person = new Person{Id = 99, Name = "Rick", Age = 99};
// // client.AddToPerson(person);
// // client.SaveChanges();
//
// var query = client.Person
// .AddQueryOption("$filter", "Age lt 18")
// .AddQueryOption("$skip", "2")
// .AddQueryOption("$orderby", "Age desc");
//
// foreach (var person in query)
// {
// Console.WriteLine($"{person.Id} {person.Name} {person.Age}");
// }
// }
{
var query = client.Person.OrderByDescending(p=>p.Age);
Console.WriteLine($"QueryUri:{query}");
var result = query.ToList();
foreach (var person in result)
{
Console.WriteLine($"{person.Id} {person.Name} {person.Age}");
}
}
{
var person = new Person {Id = 1};
client.AttachTo("Person", person);
client.DeleteObject(person);
client.SaveChanges();
}
{
var person = client.Person.ByKey(3).GetValue();
person.Name = "Rick";
client.UpdateObject(person);
client.SaveChanges();
client.AddToPerson(person);
client.SaveChanges();
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
文章来源: codeboy.blog.csdn.net，作者：愚公搬代码，版权归原作者所有，如需转载，请联系作者。
原文链接：codeboy.blog.csdn.net/article/details/108524572
