使用卷积神经网络识别数字图片

缺水的鱼 发表于 2021/10/15 20:18:39 2021/10/15
【摘要】 目的识别手写数字图片是深度学习的print(“Hello world!”),是入门级别的小实验,主要是熟悉卷积神经网络的开发流程。本次用到的依然是经典的minist数据集,不过事先分出了训练集和测试集并转换成csv格式。网络结构和流程1.结构简述由于数据比较简单,所以用到的模型不是很复杂,使用了两层的卷积层和两层全连接层共四层网络,其中卷积层均采用5x5的卷积核,并带有2x2的池化,训练迭代...

目的

识别手写数字图片是深度学习的print(“Hello world!”),是入门级别的小实验,主要是熟悉卷积神经网络的开发流程。本次用到的依然是经典的minist数据集,不过事先分出了训练集和测试集并转换成csv格式。

网络结构和流程

1.结构简述

由于数据比较简单,所以用到的模型不是很复杂,使用了两层的卷积层和两层全连接层共四层网络,其中卷积层均采用5x5的卷积核,并带有2x2的池化,训练迭代次数为3000次,学习率为1*e^{-5},每一次喂进去50张图片,训练集共60000张图片,测试集共40000张图片。

2.流程

由于测试集的大小超过了100M,使用本次的存储配置选择OBS,路径选择训练集测试集所在的OBS路径,规格依然选用CPU,工作环境依然只要能使用tensorflow的1.x版本即可。

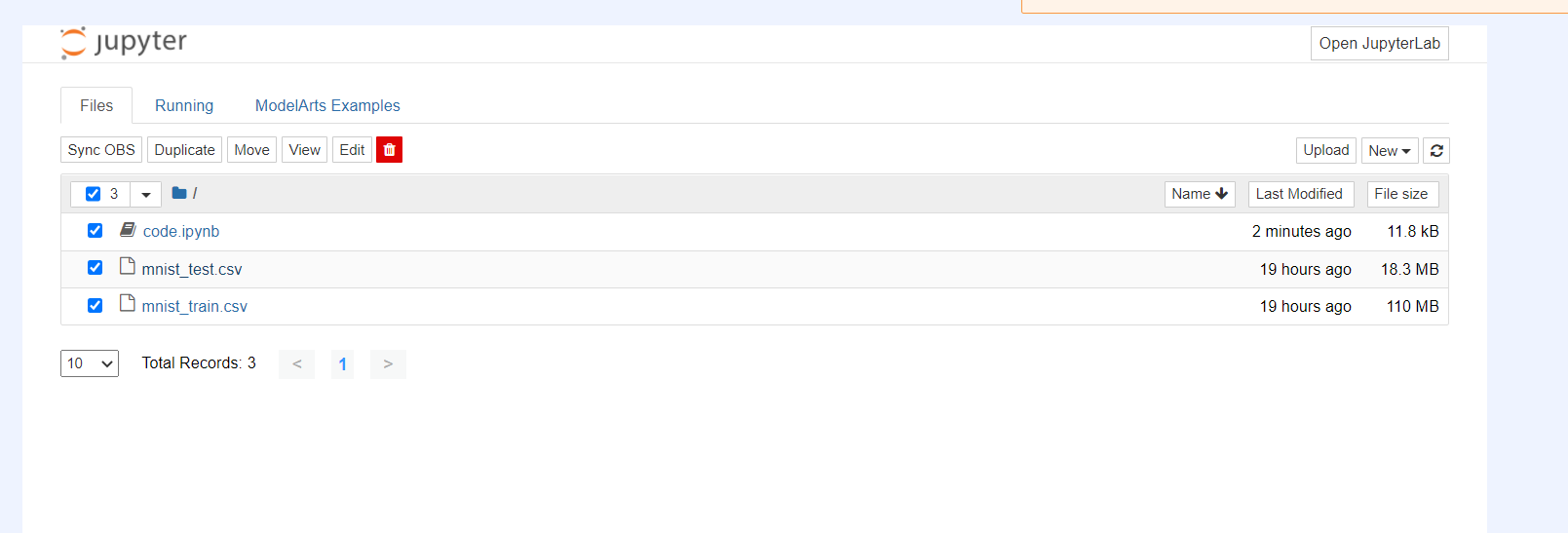

创建完完成后进入Notebook新建一个tensorflow的文件,并同步训练集测试集和代码文件(即选中所有需要同步的文件后点击左上角的Sync OBS按钮)
点击进入代码文件输入代码即可开始训练。

代码

#导入相关库
import numpy as np
import pandas as pd
import tensorflow as tf

#参数
LEARN_RATE = 1e-5
TRAIN_ITERATIONS = 3000
DROPOUT = 0.5
BATCHSIZE = 50
DISPLAY = 100

#读入训练集和测试集
train_data = pd.read_csv("mnist_train.csv",header = 0)
test_data = pd.read_csv("mnist_test.csv",header = 0)
train_data = train_data.values
test_data = test_data.values
print(train_data.shape,test_data.shape)

#分出标签集和图片集
train_images = train_data[::,1::]
train_labels = train_data[::,0]
test_images = test_data[::,1::]
test_labels = test_data[::,0]
print(train_labels.shape)

#像素点归一化
train_images = train_images.astype(np.float32)
train_images = np.multiply(train_images,1.0/255.0)
test_images = test_images.astype(np.float32)
test_images = np.multiply(test_images,1.0/255.0)

#标签onehot编码化
def to_onehot(labels,classes):
    rows = labels.shape[0]
    onehot_labels = np.zeros((rows,classes))
    index = np.arange(rows)*classes
    onehot_labels.flat[index+labels.ravel()] = 1
    return onehot_labels
train_labels = to_onehot(train_labels,10)
test_labels = to_onehot(test_labels,10)
train_labels = train_labels.astype(np.uint8)
test_labels = test_labels.astype(np.uint8)

#定义卷积,偏置项,池化
def weight(shape):
    w0 = tf.truncated_normal(shape,stddev=0.1)
    return tf.Variable(w0)
def bias(shape):
    b0 = tf.constant(0.1,shape = shape)
    return tf.Variable(b0)
def conv2d(x,W):
    return tf.nn.conv2d(x,W,strides=[1,1,1,1],padding = 'SAME')
def max_pooling2x2(x):
    return tf.nn.max_pool(x,ksize=[1,2,2,1],strides=[1,2,2,1],padding = 'SAME')

#定义输入格式
x = tf.compat.v1.placeholder(tf.float32,shape = [None,784])
y_ = tf.compat.v1.placeholder(tf.float32,shape = [None,10])

#第一层卷积
w_conv1 = weight([5,5,1,32])
b_conv1 = bias([32])

image = tf.reshape(x,[-1,28,28,1])
#第一层池化
output1 = max_pooling2x2(tf.nn.relu(conv2d(image,w_conv1)+b_conv1))

#第二层卷积
w_conv2 = weight([5,5,32,64])
b_conv2 = bias([64])
#第二层池化
output2 = max_pooling2x2(tf.nn.relu(conv2d(output1,w_conv2)+b_conv2))

#第一层全连接
w_fc1 = weight([7*7*64,1024])
b_fc1 = bias([1024])
input_fc1 = tf.reshape(output2,[-1,7*7*64])
output_fc1 = tf.nn.relu(tf.matmul(input_fc1,w_fc1)+b_fc1)

#dropout
keep_rate = tf.compat.v1.placeholder(tf.float32)
fc1_drop = tf.nn.dropout(output_fc1,keep_rate)
#第二层全连接(输出层)
w_fc2 = weight([1024,10])
b_fc2 = bias([10])
y = tf.nn.softmax(tf.matmul(fc1_drop,w_fc2)+b_fc2)

#损失函数(交叉熵)
cross_entroy = -tf.reduce_sum(y_*tf.log(y))
#优化器,普通的梯度下降
train = tf.train.GradientDescentOptimizer(LEARN_RATE).minimize(cross_entroy)
#精度计算
correct_prediction = tf.equal(tf.argmax(y,1),tf.argmax(y_,1))
accuracy = tf.reduce_mean(tf.cast(correct_prediction,tf.float32))

#定义nextbatch
totalnum = 0
index_num = 0
image_num = train_images.shape[0]
def next_batch(batch_size):
    global totalnum
    global index_num
    global train_images
    global train_labels

    start = index_num
    index_num+=batch_size
    if index_num>image_num:
        totalnum+=1
        new_index = np.arange(image_num)
        np.random.shuffle(new_index)
        train_images = train_images[new_index]
        train_labels = train_labels[new_index]
        start = 0
        index_num = batch_size
        assert batch_size<=image_num
    end = index_num
    return train_images[start:end],train_labels[start:end]

#初始化
init = tf.compat.v1.global_variables_initializer()
#迭代训练
with tf.Session() as sess:
    sess.run(init)
    train_accuracies = []
    test_accuracies = []
    x_range = []
    display_step = 1
    for i in range(TRAIN_ITERATIONS):
        xs, ys = next_batch(BATCHSIZE)

        if(i%DISPLAY==0 or i == TRAIN_ITERATIONS):
            train_accuracy = accuracy.eval(feed_dict={x:xs,
                                                   y_:ys,
                                                    keep_rate:1.0})
            test_accuracy = accuracy.eval(feed_dict={x:test_images[0:BATCHSIZE],
                                                  y_:test_labels[0:BATCHSIZE],
                                                  keep_rate:1.0})
            print("step:%d,train accuracy:%.2f,test accuracy:%.2f"%(i,train_accuracy,test_accuracy))
            train_accuracies.append(train_accuracy)
            test_accuracies.append(test_accuracy)
            x_range.append(i)
            if i%(display_step*10)==0 or i:
                display_step*=10
        sess.run(train,feed_dict={x:xs,y_:ys,keep_rate:DROPOUT})
