iOS小知识：封装上传图片视图（支持删除和添加）

举报
iOS逆向 发表于 2021/10/13 15:15:11 2021/10/13
【摘要】 iOS上传图片视图的封装【支持删除和添加】 使用UICollectionViewCell、UITableViewCell 搭建视图，采用Masonry进行布局，项目采用MVVM结构

前言

应用场景： 上传和展示多张图片的场景，比如风险商户处理、发布商品图片

技术特点：使用UICollectionViewCell、UITableViewCell 控件进行搭建，使用Masonry 框架布局，采用MVVM结构。

demo下载：https://download.csdn.net/download/u011018979/15868813

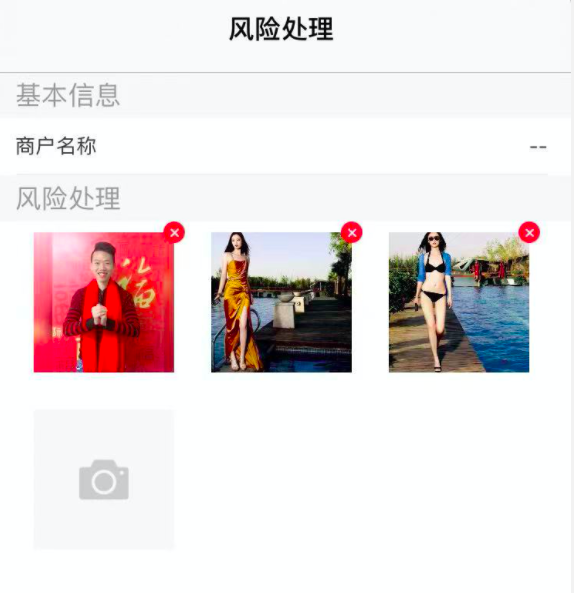

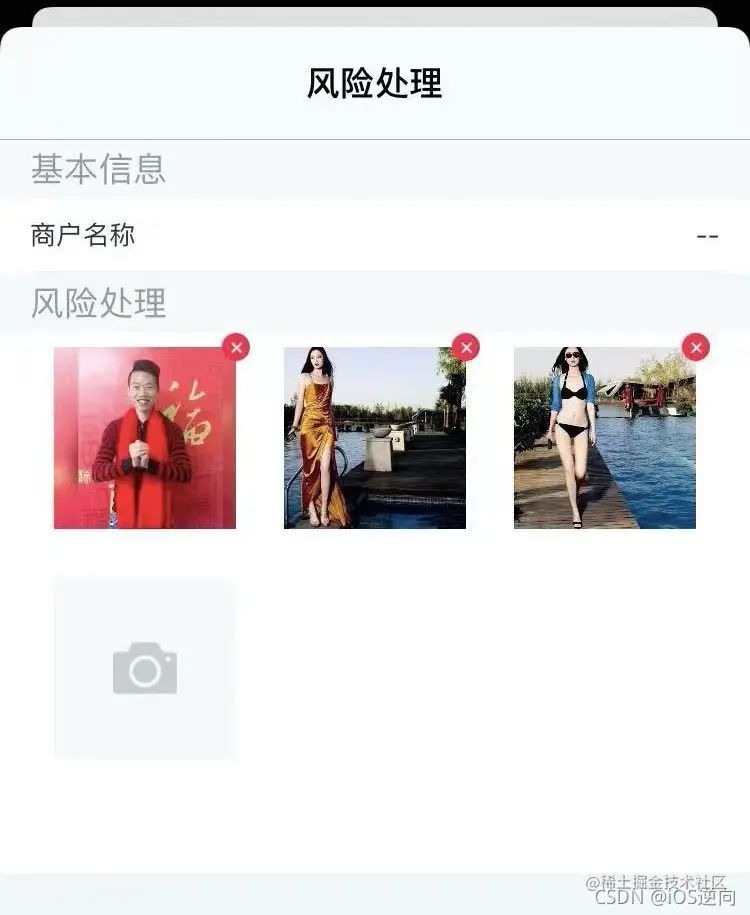

效果图：

I、 使用方法

先配置相册访问权限key

NSPhotoLibraryUsageDescription

The app's Info.plist must contain an NSPhotoLibraryUsageDescription key with a string value explaining to the user how the app uses this data.

1.1 初始化 cell

  • cell
        case ERPRelease_commoditiesViewSection4UploadPic:{


                            return  [ERPcomposePhotosTableViewCell tableViewCellWithTableView:tableView block:^(id  _Nonnull sender) {

                            } models:self.viewModel.Model4UploadPictures];






        }break;
  • 上传图片界面的初始模型数据
#pragma mark - ******** 上传图片界面的初始模型数据
+ (NSMutableArray*)getModel4ADDUploadPicturesWithBlock:(void (^)(id sender))block {


    NSMutableArray *tmpD = @[
        @{@"block":block,@"imgName":@"img_zhuece_tianjia",@"imageType":[NSNumber numberWithInt:ERPimageType4name],@"type":[NSNumber numberWithInt:QCTCollectionModelType4UploadPicturesAddIcon],@"isHiddenDelBtn":@1},


                             ];




    NSMutableArray *tmp   = [[self class] mj_objectArrayWithKeyValuesArray:tmpD];


    return tmp;


}
  • 处理上传图片逻辑

- (void)Model4UploadPictures{
    __weak __typeof__(self) weakSelf = self;

    self.viewModel.Model4UploadPictures = [QCTCollectionModel getModel4ADDUploadPicturesWithBlock:^(UISwitch* sender) {




        [weakSelf setupChooseimage];//上传图片


    } ];





}

1.2 初始化 cellView

ERPcomposePhotosV4UploadPictures

- (ERPcomposePhotosV4UploadPictures *)cellView{
    if (nil == _cellView) {
        ERPcomposePhotosV4UploadPictures *tmpView = [[ERPcomposePhotosV4UploadPictures alloc]init];
        _cellView = tmpView;

        [tmpView setBackgroundColor:kcellColor];

        [self.contentView addSubview:tmpView];

        __weak __typeof__(self) weakSelf = self;
        [tmpView mas_makeConstraints:^(MASConstraintMaker *make) {

            make.left.equalTo(weakSelf.contentView).offset(kAdjustRatio(20));
            make.right.equalTo(weakSelf.contentView).offset(- kAdjustRatio(20));
            make.top.equalTo(weakSelf.contentView).offset(kAdjustRatio(0));

            make.bottom.equalTo(weakSelf.contentView).offset(- kAdjustRatio(0));

        }];


    }
    return _cellView;
}

1.3 约束的设置

根据模型数据，更新视图高度

mas_updateConstraints
计算宽度的时候采用UIScreen进行屏幕宽度的获取

- (void)setModels:( NSMutableArray*)models{
    _models =models;

    self.cellView.models = models;

        NSInteger maxclos= 3;// 列数

    CGFloat margin = 10;

//
//    [self.cellView layoutIfNeeded];

//    CGFloat w = (self.cellView.frame.size.width - margin*(maxclos-1))/maxclos;

    CGFloat cellViewW =kWidth-kAdjustRatio(20*2) ;//计算宽度的时候采用UIScreen进行屏幕宽度的获取

    CGFloat w = (cellViewW- margin*(maxclos-1))/maxclos;
    CGFloat cell_H = w*(1);//宽高比
//    NSLog(@"cell_H:%f",cell_H);//
    NSInteger row = [QCT_Common getRowWithCount:models.count clos:maxclos];
    [self.cellView mas_updateConstraints:^(MASConstraintMaker *make) {


            make.height.mas_equalTo(kAdjustRatio(cell_H*row + (row -1)*10 ));

    }];



}

设置sizeForItemAtIndexPath

-(CGSize)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout sizeForItemAtIndexPath:(NSIndexPath *)indexPath {
    CGSize size;

        NSInteger maxclos= 3;// 列数

        CGFloat margin = 10;

        CGFloat w = (self.frame.size.width - margin*(maxclos-1))/maxclos;

        CGFloat cell_H = w*(1);//宽高比 123/234



        size = CGSizeMake(cell_H, cell_H);






    return size;
}

初始化collectionView，并设置每一行之间的间距

- (UICollectionView *)collectionView {
    if (_collectionView == nil) {
        UICollectionViewFlowLayout *flowLayout = [[UICollectionViewFlowLayout alloc] init];
        // 2.设置整个collectionView的内边距
        //分别为上、左、下、右
                flowLayout.sectionInset = UIEdgeInsetsMake(kAdjustRatio(0),kAdjustRatio(0),kAdjustRatio(0),kAdjustRatio(0));
        //.设置每一行之间的间距
        flowLayout.minimumLineSpacing = kAdjustRatio(10);
        flowLayout.minimumInteritemSpacing = 0;
        //        flowLayout.itemSize = CGSizeMake((SCREEN_WIDTH-3*kAdjustRatio(10))/3.0, self.optionsView.height);
        _collectionView = [[UICollectionView alloc] initWithFrame:CGRectZero collectionViewLayout:flowLayout];
        _collectionView.backgroundColor = [UIColor whiteColor];
        _collectionView.showsVerticalScrollIndicator = NO;
        _collectionView.bounces = NO;

        _collectionView.dataSource = self;
        _collectionView.delegate = self;

        [_collectionView registerClass:[ERPUploadPicturesUICollectionViewCell class] forCellWithReuseIdentifier:@"ERPUploadPicturesUICollectionViewCell"];
        if (@available(iOS 11.0, *)) {
            _collectionView.contentInsetAdjustmentBehavior =  UIScrollViewContentInsetAdjustmentNever;
        } else {
            // Fallback on earlier versions
        }

        _collectionView.scrollEnabled = NO;
        //        UICollectionViewScrollDirectionHorizontal

        __weak __typeof__(self) weakSelf = self;

        [self addSubview:_collectionView];
        [_collectionView mas_makeConstraints:^(MASConstraintMaker *make) {
            make.left.top.bottom.right.equalTo(weakSelf);
        }];




    }
    return _collectionView;
}

1.4 处理图片添加成功的用法举例

- (void)UpdateImageToViewWithurl:(NSString*)picurl{

__weak __typeof__(self) weakSelf = self;
    // 新增模型

    QCTCollectionModel *tm = [QCTCollectionModel new];


    tm.type = QCTCollectionModelType4ShowUploadPictures;
    tm.imageType = ERPimageType4url;

    tm.picurl = picurl;

    [tm setDelblock:^(QCTCollectionModel* sender) {

        [weakSelf.viewModel.Model4UploadPictures removeObject:sender];

       //判断是否已经包含添加图片视图，如果没有，且数量小于上传的最大张数，则显示添加按钮
        if(self.viewModel.Model4UploadPictures.count<maxcount4UploadPicturesInRelease_commodities  && ( ![QCTCollectionModel idContainsUploadPicturesAddIconWithArr:self.viewModel.Model4UploadPictures])){// 处理最大数量

            [weakSelf.viewModel.Model4UploadPictures addObject:[QCTCollectionModel getModel4ADDUploadPicturesWithBlock:^(UISwitch* sender) {




                [weakSelf setupChooseimage];


            } ].firstObject];






        }


        [weakSelf.viewModel.reloadProductFileUploadSubject sendNext:nil];





    }];


    [tm setBlock:^(id  _Nonnull sender) {



    }];



    [self.viewModel.Model4UploadPictures insertObject:tm atIndex:self.viewModel.Model4UploadPictures.count-1];

   if(self.viewModel.Model4UploadPictures.count>maxcount4UploadPicturesInRelease_commodities){// 处理最大数量


        [self.viewModel.Model4UploadPictures removeLastObject];



    }

    // 刷新视图
    [self.viewModel.reloadProductFileUploadSubject sendNext:nil];





}

II、核心代码

2.0 处理是否已经包含添加图片视图

2.0.1 判断是否已经包含添加图片视图



+ (BOOL)idContainsUploadPicturesAddIconWithArr:(NSArray*)arr{


    NSPredicate* predicate = [NSPredicate predicateWithFormat:@"type == %d",QCTCollectionModelType4UploadPicturesAddIcon];


    NSArray *tmparr = [arr filteredArrayUsingPredicate:predicate];




    if(tmparr.count>0){

        return YES;

    }



    return NO;



}

2.0.2 添加按钮数据模型

+ (NSMutableArray*)getModel4ADDUploadPicturesWithBlock:(void (^)(id sender))block {


    NSMutableArray *tmpD = @[
        @{@"block":block,@"imgName":@"img_zhuece_tianjia",@"imageType":[NSNumber numberWithInt:ERPimageType4name],@"type":[NSNumber numberWithInt:QCTCollectionModelType4UploadPicturesAddIcon],@"isHiddenDelBtn":@1},


                             ];




    NSMutableArray *tmp   = [[self class] mj_objectArrayWithKeyValuesArray:tmpD];


    return tmp;


}

2.0.3 判断是否已经包含添加图片视图，如果没有，且数量小于上传的最大张数，则显示添加按钮

    [tm setDelblock:^(QCTCollectionModel* sender) {

        [weakSelf.viewModel.Model4UploadPictures removeObject:sender];

       //判断是否已经包含添加图片视图，如果没有，且数量小于上传的最大张数，则显示添加按钮
        if(self.viewModel.Model4UploadPictures.count<maxcount4UploadPicturesInRelease_commodities  && ( ![QCTCollectionModel idContainsUploadPicturesAddIconWithArr:self.viewModel.Model4UploadPictures])){// 处理最大数量

            [weakSelf.viewModel.Model4UploadPictures addObject:[QCTCollectionModel getModel4ADDUploadPicturesWithBlock:^(UISwitch* sender) {




                [weakSelf setupChooseimage];


            } ].firstObject];






        }


        [weakSelf.viewModel.reloadProductFileUploadSubject sendNext:nil];





    }];

2.1 ShowImageView 显示图片的视图

2.1.1 .h

#import <UIKit/UIKit.h>
#import "QCTCollectionModel.h"
#define KNDeleteH 7 //删除按钮的高度的一半
NS_ASSUME_NONNULL_BEGIN
/**
 显示图片的视图
 */
@interface ERPShowImageView : UIView
@property (nonatomic,strong) QCTCollectionModel *model;

@property (nonatomic,weak) UIImageView *imageView;

@property (nonatomic,weak) UIButton *deleteBtn;


@end

2.1.2.m

#import "ERPShowImageView.h"

@implementation ERPShowImageView

- (UIImageView *)imageView{
    if (nil == _imageView) {
        UIImageView *tmpView = [[UIImageView alloc]init];
        _imageView = tmpView;
        tmpView.contentMode = UIViewContentModeScaleAspectFill;
        tmpView.clipsToBounds = YES;
        [self addSubview:_imageView];

        __weak __typeof__(self) weakSelf = self;

        [tmpView mas_makeConstraints:^(MASConstraintMaker *make) {

            make.top.offset(kAdjustRatio(KNDeleteH));
            make.left.offset(kAdjustRatio(KNDeleteH));
            make.right.offset(kAdjustRatio(-KNDeleteH));


            make.bottom.offset(kAdjustRatio(-KNDeleteH));



        }];

        tmpView.userInteractionEnabled = YES;

        UITapGestureRecognizer *cutTap = [[UITapGestureRecognizer alloc] init];
//        __weak __typeof__(self) weakSelf = self;

        [[cutTap rac_gestureSignal] subscribeNext:^(id x) {




            if(weakSelf.model.type != QCTCollectionModelType4UploadPicturesAddIcon
               ){

                return ;



            }

            NSLog(@" 上传图片 ");


            if (weakSelf.model.block) {

                weakSelf.model.block(weakSelf.model);


            }

        }];
        [tmpView addGestureRecognizer:cutTap];





    }
    return _imageView;
}

- (UIButton *)deleteBtn{
    if (nil == _deleteBtn) {
        UIButton *tmpView = [[UIButton alloc]init];
        _deleteBtn = tmpView;
        [tmpView addTarget:self action:@selector(clickDeleteBtn) forControlEvents:UIControlEventTouchUpInside];
        [self addSubview:_deleteBtn];
//
        __weak __typeof__(self) weakSelf = self;

        [tmpView mas_makeConstraints:^(MASConstraintMaker *make) {

            make.centerY.equalTo(weakSelf.imageView.mas_top);
            make.centerX.equalTo(weakSelf.imageView.mas_right);



            make.width.height.mas_equalTo(kAdjustRatio(2*KNDeleteH));




        }];
    }
    return _deleteBtn;
}

- (void)clickDeleteBtn{
//    [self removeFromSuperview];

    if(self.model.delblock){
        self.model.delblock(self.model);

    }
}


- (instancetype)initWithFrame:(CGRect)frame{

    self = [super initWithFrame:frame];
    NSLog(@"kninitWithFrame");
    if (self) {
        //构建子控件
        [self setupSubviews];
    }
    return self;
}

- (void)setupSubviews{
    NSLog(@"setupSubviews");
    self.imageView.hidden = NO;

    [self.deleteBtn setImage:[self imageWithImageName:@"icon_xinzengmendian_shanchu.png"] forState:UIControlStateNormal];

}

- (UIImage*)imageWithImageName:(NSString*)name{

    return [UIImage imageNamed:name];

//
}



- (void)layoutSubviews{
    [super layoutSubviews];
//    self.imageView.frame = self.bounds;


    [self layoutIfNeeded];


}



- (void)setModel:(QCTCollectionModel *)model{

    _model = model;
//    tm.imageType = ;


    switch (model.imageType) {
        case ERPimageType4name:
            {
                self.imageView.image = [UIImage imageNamed:model.imgName];

            }
            break;

            case ERPimageType4url:
                {

                    [self.imageView sd_setImageWithURL:[NSURL URLWithString:model.picurl] placeholderImage:[UIImage imageNamed:@"占位"]];






                }

                break;




        default:


            break;
    }


    self.deleteBtn.hidden = model.isHiddenDelBtn;

}

2.2 数据模型 QCTCollectionModel


typedef enum : NSUInteger {
    ERPimageType4name,
    ERPimageType4url,
    ERPimageType4Uiimage,
} ERPimageType;

@property (nonatomic,assign) ERPimageType imageType;

//

@property (nonatomic , copy) NSString *picurl;


/**
 默认NO 显示删除按钮
 */
@property (nonatomic,assign) BOOL isHiddenDelBtn;
@property (nonatomic,copy) NSString *imgName;

2.3 完整Demo下载

demo源码下载：https://download.csdn.net/download/u011018979/15868813

  1. 应用场景： 上传和展示多张图片的场景，比如风险商户处理、发布商品图片

  2. 技术特点：使用UICollectionViewCell、UITableViewCell 控件进行搭建，使用Masonry 框架布局，采用MVVM结构。

III、注意事项

3.1 QMUIKit在iOS14 下首次唤起键盘卡住主线程的解决方案

iOS14 下首次唤起键盘卡住主线程

  • Main Thread Checker: UI API called on a background thread: -[UIWindow windowScene]
=================================================================
Main Thread Checker: UI API called on a background thread: -[UIWindow windowScene]
PID: 580, TID: 21138, Thread name: (none), Queue name: com.apple.root.user-initiated-qos, QoS: 25
Backtrace:
4   retail                              0x000000010576b628 __62+[UIWindow(QMUIUserInterfaceStyleWillChangeNotification) load]_block_invoke_3 + 296

Main Thread Checker: UI API called on a background thread: -[UIWindow traitCollection]
PID: 509, TID: 22376, Thread name: (none), Queue name: com.apple.root.user-initiated-qos, QoS: 25
Backtrace:
4   Housekeeper                         0x0000000100f3c000 __62+[UIWindow(QMUIUserInterfaceStyleWillChangeNotification) load]_block_invoke_3 + 92
  • 解决方案：如果你没使用QMUITheme，就直接注释掉代码即可。

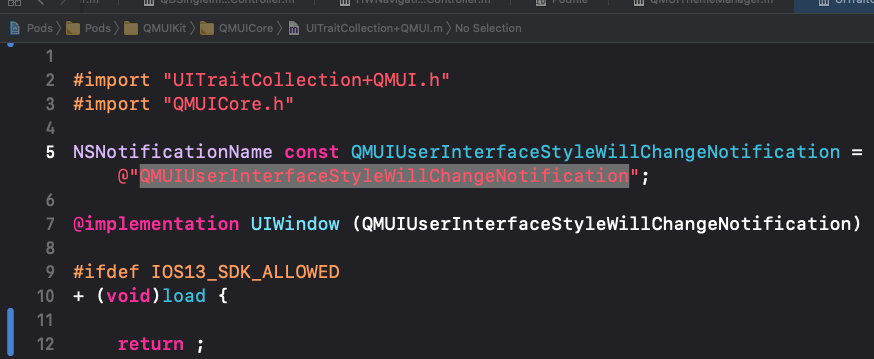

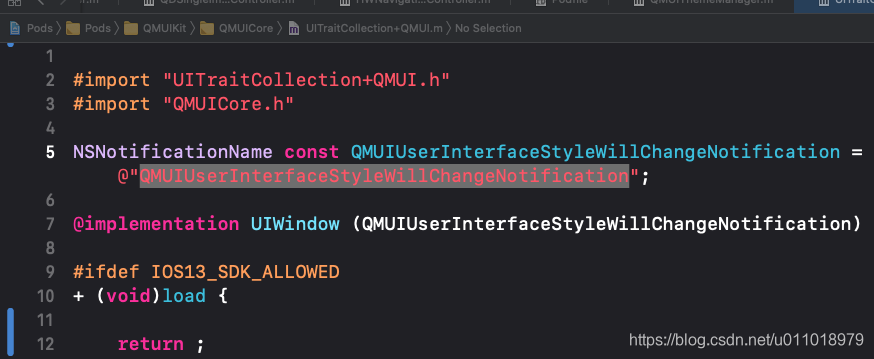

在这里插入图片描述

@implementation UIWindow (QMUIUserInterfaceStyleWillChangeNotification)

#ifdef IOS13_SDK_ALLOWED
+ (void)load {

    return ;
}

如果你使用QMUITheme，则及时你更新4.2.1版本也无法根本性解决

这是因为系统自己在子线程访问了这些方法，只是 Main Thread Checker 对其做了兼容，发现 App 自己修改了这些方法的实现，才报错，没修改则不报错。
检测方式可以打条件符号断点，然后把 QMUI 那段代码注释掉，运行起来后会发现依然能命中这个断点，说明系统自身确实是在子线程访问了（UIKit 这种行为特别多，不只是这里）。
所以从原理上看，QMUI 命中这个主线程检测是不可避免的，目前只是做了一些优化，只有真正使用了 QMUITheme 组件时才会出现这个情况，没使用的时候就不会命中，以减少一部分的出错场景。这个优化将会跟随 4.2.1 版本发布。

see also

更多内容请关注#小程序：iOS逆向,只为你呈现有价值的信息，专注于移动端技术研究领域。
