Spring-AOP @AspectJ切点函数之@within()和@target

小工匠发表于 2021/09/09 23:34:23 2021/09/09

【摘要】文章目录概述@target(M)的匹配规则@within(M)的匹配规则实例@target@within 注意事项概述除了@annotation和@args外，还有另外两个用于注...

文章目录

概述
@target(M)的匹配规则
@within(M)的匹配规则
实例
- @target
- @within
注意事项

概述

除了@annotation和@args外，还有另外两个用于注解的切点函数，分别是@target和@within.

和@annotation @args函数一样，@target和@within也只接受注解类名作为入参。

其中@target(M)匹配任意标注了@M的目标类，而@within(M)匹配标注了@M的类及其子孙类（子类经测试匹配不到，欢迎指正）

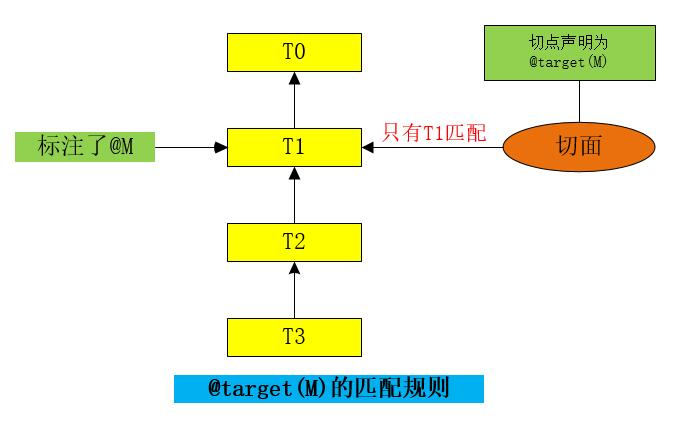

@target(M)的匹配规则

@target使用@target(注解类型全限定名)匹配当前目标对象类型的执行方法, 必须是在目标对象上声明注解，在接口上声明不起作用

@within(M)的匹配规则

经验证，目前发现和 @target(M)的匹配规则是一样的。

@within(注解类型全限定名)匹配所有持有指定注解的类里面的方法, 即要把注解加在类上. 在接口上声明不起作用。 子孙类经测试匹配不到，如有错误烦请指出。

实例

代码已托管到Github—> https://github.com/yangshangwei/SpringMaster

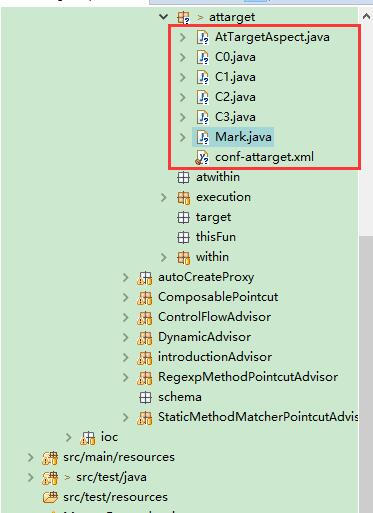

@target

首先自定义一个注解用于测试用

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 *
 *
 * @ClassName: Mark
 *
 * @Description: 自定义注解
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午12:02:46
 */

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
public @interface Mark {

	public String value() default "";

}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29

4个注解标注的POJO ，继承关系 C3 -->C2–> C1–> C0

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.springframework.stereotype.Component;

/**
 *
 *
 * @ClassName: C0
 *
 * @Description: @Component 标注的Bean
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午1:36:37
 */

@Component
public class C0 {

	public void methodName() {
		System.out.println("C0 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24

C1类声明处标注了自定义注解@Mark

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.springframework.stereotype.Component;

@Mark
@Component
public class C1 extends C0 {
	public void methodName() {
		System.out.println("C1 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12

C2类声明处标注了自定义注解@Mark

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.springframework.stereotype.Component;

@Mark
@Component
public class C2 extends C1 {
	public void methodName() {
		System.out.println("C2 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.springframework.stereotype.Component;

@Component
public class C3 extends C2 {
	public void methodName() {
		System.out.println("C3 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11

使用@Aspect标注的环绕增强切面

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;

/**
 *
 *
 * @ClassName: AtTargetAspect
 *
 * @Description: 标注了@Aspect的切面 环绕增强切面
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 上午11:59:26
 */

@Aspect
public class AtTargetAspect {

	@Around("@target(com.xgj.aop.spring.advisor.aspectJ.function.attarget.Mark)")
	public void crossCuttingCode(ProceedingJoinPoint joinPoint)
			throws Throwable {
		System.out.println("****AtTargetAspect.crossCuttingCode() : "
				+ joinPoint.getSignature().getName()
				+ ": Before Method Execution");
		try {
			joinPoint.proceed();
		} finally {
			// Do Something useful, If you have
		}
		System.out.println("****AtTargetAspect.crossCuttingCode() : "
				+ joinPoint.getSignature().getName()
				+ ": After Method Execution");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31
  32
  33
  34
  35
  36
  37
  38

配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/context
       	http://www.springframework.org/schema/context/spring-context.xsd">

<!-- (1)声明Context命名空间以及Schema文件   (2)扫描类包以及应用注解定义的bean -->
<context:component-scan base-package="com.xgj.aop.spring.advisor.aspectJ.function.attarget"/>

<!-- 基于@AspectJ切面的驱动器 -->
<aop:aspectj-autoproxy proxy-target-class="true"/>

<!-- 使用了@AspectJ注解的切面类 -->
<bean class="com.xgj.aop.spring.advisor.aspectJ.function.attarget.AtTargetAspect"/>

</beans>




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23

测试代码

package com.xgj.aop.spring.advisor.aspectJ.function.attarget;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class AtTargetAspectTest {

	private ApplicationContext ctx;

	@Test
	public void test() {
		ctx = new ClassPathXmlApplicationContext(
				"classpath:com/xgj/aop/spring/advisor/aspectJ/function/attarget/conf-attarget.xml");

		C0 c0 = ctx.getBean("c0", C0.class);
		C1 c1 = ctx.getBean("c1", C1.class);
		C2 c2 = ctx.getBean("c2", C2.class);
		C3 c3 = ctx.getBean("c3", C3.class);

		// C0没有标注了@Mark，不会被织入增强
		c0.methodName();
		// C1标注了@Mark，会被织入增强
		c1.methodName();
		// C2标注了@Mark，会被织入增强
		c2.methodName();
		// C3没有标注了@Mark，不会被织入增强
		c3.methodName();
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31

运行结果：

2017-09-05 13:40:56,244  INFO [main] (AbstractApplicationContext.java:583) - Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@c24cb3: startup date [Tue Sep 05 13:40:56 BOT 2017]; root of context hierarchy
2017-09-05 13:40:56,338  INFO [main] (XmlBeanDefinitionReader.java:317) - Loading XML bean definitions from class path resource [com/xgj/aop/spring/advisor/aspectJ/function/attarget/conf-attarget.xml]
C0 method executed
****AtTargetAspect.crossCuttingCode() : methodName: Before Method Execution
C1 method executed
****AtTargetAspect.crossCuttingCode() : methodName: After Method Execution
****AtTargetAspect.crossCuttingCode() : methodName: Before Method Execution
C2 method executed
****AtTargetAspect.crossCuttingCode() : methodName: After Method Execution
C3 method executed




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11

C1 和 C2标注了@Mark注解，可以看到成功的织入了@Around环绕增强

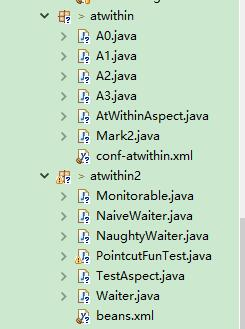

@within

自定义一个注解

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 *
 *
 * @ClassName: Mark
 *
 * @Description: 自定义注解
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午12:02:46
 */

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
public @interface Mark2 {

	public String value() default "";

}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29

4个注解声明的POJO Bean

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.springframework.stereotype.Component;

/**
 *
 *
 * @ClassName: C0
 *
 * @Description: @Component 标注的Bean
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午1:36:37
 */

@Component
public class A0 {

	public void methodName() {
		System.out.println("A0 method executed \n");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.springframework.stereotype.Component;

/**
 *
 *
 * @ClassName: A1
 *
 * @Description: 标注了@Mark2，可以被增强
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午6:02:21
 */

@Mark2
@Component
public class A1 extends A0 {
	public void methodName() {
		System.out.println("A1 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.springframework.stereotype.Component;

@Component
public class A2 extends A1 {

	public void methodName() {
		System.out.println("A2 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.springframework.stereotype.Component;

@Component
public class A3 extends A2 {

	public void methodName() {
		System.out.println("A3 method executed");
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12

切面实现了Ordered接口

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.core.Ordered;

/**
 *
 *
 * @ClassName: AtWithinAspect
 *
 * @Description: 标注了@Aspect 环绕增强切面
 *
 * @author: Mr.Yang
 *
 * @date: 2017年9月5日 下午1:53:40
 */

@Aspect
public class AtWithinAspect implements Ordered {

	@Around("@within(com.xgj.aop.spring.advisor.aspectJ.function.atwithin.Mark2)")
	public void crossCuttingCode(ProceedingJoinPoint joinPoint)
			throws Throwable {
		System.out.println("****AtWithinAspect.crossCuttingCode() : "
				+ joinPoint.getSignature().getName()
				+ ": Before Method Execution");
		try {
			joinPoint.proceed();
		} finally {
			// Do Something useful, If you have
		}
		System.out.println("****AtWithinAspect.crossCuttingCode() : "
				+ joinPoint.getSignature().getName()
				+ ": After Method Execution \n");
	}

	@Override
	public int getOrder() {
		return 1;
	}

}







  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31
  32
  33
  34
  35
  36
  37
  38
  39
  40
  41
  42
  43
  44
  45
  46
  47
  48

配置文件


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/context
       	http://www.springframework.org/schema/context/spring-context.xsd">

<!-- (1)声明Context命名空间以及Schema文件   (2)扫描类包以及应用注解定义的bean -->
<context:component-scan base-package="com.xgj.aop.spring.advisor.aspectJ.function.atwithin"/>

<!-- 基于@AspectJ切面的驱动器 -->
<aop:aspectj-autoproxy proxy-target-class="true"/>

<!-- 使用了@AspectJ注解的切面类 -->
<bean class="com.xgj.aop.spring.advisor.aspectJ.function.atwithin.AtWithinAspect"/>

</beans>



  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23

测试类

package com.xgj.aop.spring.advisor.aspectJ.function.atwithin;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class AtWithinAspectTest {

	private ApplicationContext ctx;

	@Test
	public void test() {
		ctx = new ClassPathXmlApplicationContext(
				"classpath:com/xgj/aop/spring/advisor/aspectJ/function/atwithin/conf-atwithin.xml");

		A0 a0 = ctx.getBean("a0", A0.class);
		A1 a1 = ctx.getBean("a1", A1.class);
		A2 a2 = ctx.getBean("a2", A2.class);
		A3 a3 = ctx.getBean("a3", A3.class);

		// A0没有标注@Mark，不会被织入增强
		a0.methodName();
		// A1标注了@Mark，会被织入增强
		a1.methodName();
		// A2没有标注@Mark，不会被织入增强
		a2.methodName();
		// A3没有标注@Mark，不会被织入增强
		a3.methodName();
	}
}




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31

运行结果：

2017-09-05 18:04:01,685  INFO [main] (AbstractApplicationContext.java:583) - Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@c24cb3: startup date [Tue Sep 05 18:04:01 BOT 2017]; root of context hierarchy
2017-09-05 18:04:01,793  INFO [main] (XmlBeanDefinitionReader.java:317) - Loading XML bean definitions from class path resource [com/xgj/aop/spring/advisor/aspectJ/function/atwithin/conf-atwithin.xml]
A0 method executed

****AtWithinAspect.crossCuttingCode() : methodName: Before Method Execution
A1 method executed
****AtWithinAspect.crossCuttingCode() : methodName: After Method Execution

A2 method executed
A3 method executed




  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11

注意事项

如果标注了@M注解的是一个接口，则所有实现该接口的类并不匹配@within(M) . 假设接口Waiter标注了@Mark注解，但是它的实现类NaiveWaiter、NaughtyWaiter这些接口实现类灭有标注@Mark, 则@within(com.xgj.Mark) 和 @target(com,xgj.Mark)都不匹配NaiveWaiter、NaughtyWaiter。因为@within() @target() @annotation函数都是针对目标类而言的，而非针对运行时的引用类型而言。需要特别注意。

验证过程见github中的 com.xgj.aop.spring.advisor.aspectJ.function.atwithin2

输出结果：

2017-09-05 18:11:18,171  INFO [main] (AbstractApplicationContext.java:583) - Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@24b9371e: startup date [Tue Sep 05 18:11:18 BOT 2017]; root of context hierarchy
2017-09-05 18:11:18,285  INFO [main] (XmlBeanDefinitionReader.java:317) - Loading XML bean definitions from class path resource [com/xgj/aop/spring/advisor/aspectJ/function/atwithin2/beans.xml]
NaughtyWaiter:greet to XiaoGong...
NaiveWaiter:greet to Jiang...



  1
  2
  3
  4

标注在接口上的@@Monitorable，使用within ，实现类中的方法并没有匹配

文章来源: artisan.blog.csdn.net，作者：小小工匠，版权归原作者所有，如需转载，请联系作者。

原文链接：artisan.blog.csdn.net/article/details/77846974

点赞
收藏
关注作者

0/1000

抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认取消

加入云驻计划，成为创作者

华为云周边好礼
免费体验产品
特殊身份标识
线下官方门票
内部专家零距离
与10000+优质创作者共同成长

立即加入
