Apache Kafka-Spring Kafka生产消费@KafkaListener源码解析
【摘要】
文章目录
概述Spring-kafka生产者源码流程Spring-kafka消费者源码流程（`@EnableKafka`和`@KafkaListener` ）FlowKafkaListenerAn...
概述
【依赖】
<dependency>
<groupId>org.springframework.kafka</groupId>
<artifactId>spring-kafka</artifactId>
</dependency>
- 1
- 2
- 3
- 4
【配置】
#kafka
spring.kafka.bootstrap-servers=10.11.114.247:9092
spring.kafka.producer.acks=1
spring.kafka.producer.retries=3
spring.kafka.producer.batch-size=16384
spring.kafka.producer.buffer-memory=33554432
spring.kafka.producer.key-serializer=org.apache.kafka.common.serialization.StringSerializer
spring.kafka.producer.value-serializer=org.springframework.kafka.support.serializer.JsonSerializer
spring.kafka.consumer.group-id=zfprocessor_group
spring.kafka.consumer.enable-auto-commit=false
spring.kafka.consumer.auto-offset-reset=earliest
spring.kafka.consumer.key-deserializer=org.apache.kafka.common.serialization.StringDeserializer
spring.kafka.consumer.value-deserializer=org.springframework.kafka.support.serializer.JsonDeserializer
spring.kafka.consumer.properties.spring.json.trusted.packages=com.artisan.common.entity.messages
spring.kafka.consumer.max-poll-records=500
spring.kafka.consumer.fetch-min-size=10
spring.kafka.consumer.fetch-max-wait=10000ms
spring.kafka.listener.missing-topics-fatal=false
spring.kafka.listener.type=batch
spring.kafka.listener.ack-mode=manual
logging.level.org.springframework.kafka=ERROR
logging.level.org.apache.kafka=ERROR
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
Spring-kafka生产者源码流程
ListenableFuture<SendResult<Object, Object>> result = kafkaTemplate.send(TOPICA.TOPIC, messageMock);
- 1
主要的源码流程如下
Spring-kafka消费者源码流程（@EnableKafka和@KafkaListener ）
消费的话，比较复杂
@KafkaListener(topics = TOPICA.TOPIC ,groupId = CONSUMER_GROUP_PREFIX + TOPICA.TOPIC)
public void onMessage(MessageMock messageMock){
logger.info("【接受到消息][线程:{} 消息内容：{}]", Thread.currentThread().getName(), messageMock);
}
- 1
- 2
- 3
- 4

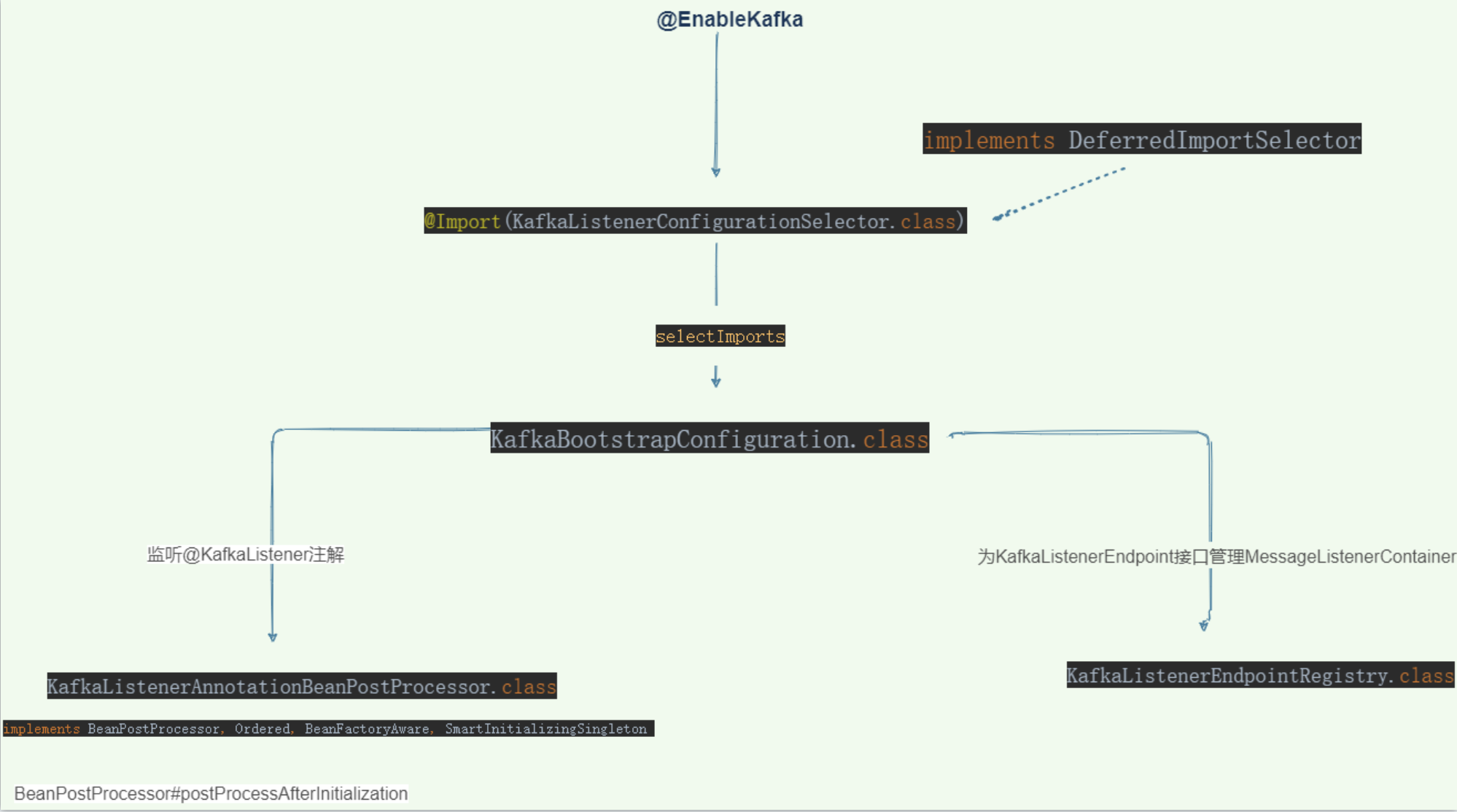

划重点，主要关注
Flow
作为引子，我们继续来梳理下源码
继续
继续

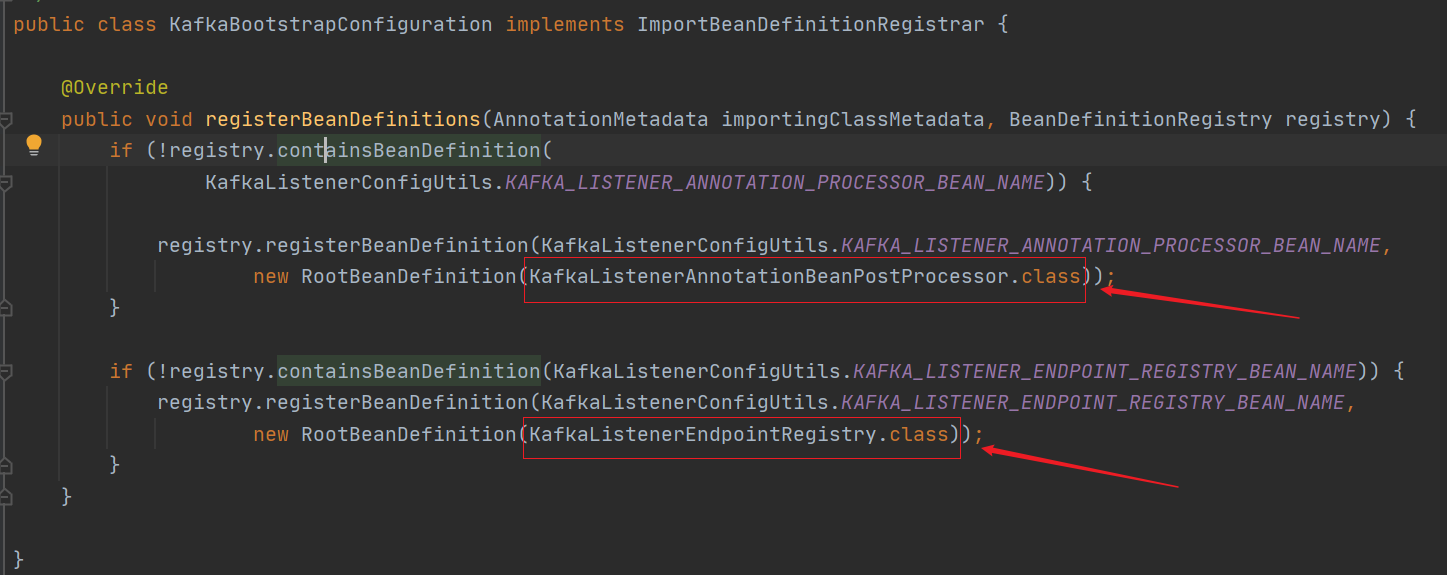

KafkaBootstrapConfiguration的主要功能是创建两个bean
KafkaListenerAnnotationBeanPostProcessor
实现了如下接口
implements BeanPostProcessor, Ordered, BeanFactoryAware, SmartInitializingSingleton
- 1
主要功能就是监听@KafkaListener注解 。 bean的后置处理器 需要重写 postProcessAfterInitialization
@Override
public Object postProcessAfterInitialization(final Object bean, final String beanName) throws BeansException {
if (!this.nonAnnotatedClasses.contains(bean.getClass())) {
// 获取对应的class
Class<?> targetClass = AopUtils.getTargetClass(bean);
// 查找类是否有@KafkaListener注解
Collection<KafkaListener> classLevelListeners = findListenerAnnotations(targetClass);
final boolean hasClassLevelListeners = classLevelListeners.size() > 0;
final List<Method> multiMethods = new ArrayList<>();
// 查找类中方法上是否有对应的@KafkaListener注解，
Map<Method, Set<KafkaListener>> annotatedMethods = MethodIntrospector.selectMethods(targetClass,
(MethodIntrospector.MetadataLookup<Set<KafkaListener>>) method -> {
Set<KafkaListener> listenerMethods = findListenerAnnotations(method);
return (!listenerMethods.isEmpty() ? listenerMethods : null);
});
if (hasClassLevelListeners) {
Set<Method> methodsWithHandler = MethodIntrospector.selectMethods(targetClass,
(ReflectionUtils.MethodFilter) method ->
AnnotationUtils.findAnnotation(method, KafkaHandler.class) != null);
multiMethods.addAll(methodsWithHandler);
}
if (annotatedMethods.isEmpty()) {
this.nonAnnotatedClasses.add(bean.getClass());
this.logger.trace(() -> "No @KafkaListener annotations found on bean type: " + bean.getClass());
}
else {
// Non-empty set of methods
for (Map.Entry<Method, Set<KafkaListener>> entry : annotatedMethods.entrySet()) {
Method method = entry.getKey();
for (KafkaListener listener : entry.getValue()) {
// 处理@KafkaListener注解 重点看
processKafkaListener(listener, method, bean, beanName);
}
}
this.logger.debug(() -> annotatedMethods.size() + " @KafkaListener methods processed on bean '"
+ beanName + "': " + annotatedMethods);
}
if (hasClassLevelListeners) {
processMultiMethodListeners(classLevelListeners, multiMethods, bean, beanName);
}
}
return bean;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
重点方法
protected void processKafkaListener(KafkaListener kafkaListener, Method method, Object bean, String beanName) {
Method methodToUse = checkProxy(method, bean);
MethodKafkaListenerEndpoint<K, V> endpoint = new MethodKafkaListenerEndpoint<>();
endpoint.setMethod(methodToUse);
processListener(endpoint, kafkaListener, bean, methodToUse, beanName);
}
- 1
- 2
- 3
- 4
- 5
- 6
继续 processListener
protected void processListener(MethodKafkaListenerEndpoint<?, ?> endpoint, KafkaListener kafkaListener,
Object bean, Object adminTarget, String beanName) {
String beanRef = kafkaListener.beanRef();
if (StringUtils.hasText(beanRef)) {
this.listenerScope.addListener(beanRef, bean);
}
// 构建 endpoint
endpoint.setBean(bean);
endpoint.setMessageHandlerMethodFactory(this.messageHandlerMethodFactory);
endpoint.setId(getEndpointId(kafkaListener));
endpoint.setGroupId(getEndpointGroupId(kafkaListener, endpoint.getId()));
endpoint.setTopicPartitions(resolveTopicPartitions(kafkaListener));
endpoint.setTopics(resolveTopics(kafkaListener));
endpoint.setTopicPattern(resolvePattern(kafkaListener));
endpoint.setClientIdPrefix(resolveExpressionAsString(kafkaListener.clientIdPrefix(), "clientIdPrefix"));
String group = kafkaListener.containerGroup();
if (StringUtils.hasText(group)) {
Object resolvedGroup = resolveExpression(group);
if (resolvedGroup instanceof String) {
endpoint.setGroup((String) resolvedGroup);
}
}
String concurrency = kafkaListener.concurrency();
if (StringUtils.hasText(concurrency)) {
endpoint.setConcurrency(resolveExpressionAsInteger(concurrency, "concurrency"));
}
String autoStartup = kafkaListener.autoStartup();
if (StringUtils.hasText(autoStartup)) {
endpoint.setAutoStartup(resolveExpressionAsBoolean(autoStartup, "autoStartup"));
}
resolveKafkaProperties(endpoint, kafkaListener.properties());
endpoint.setSplitIterables(kafkaListener.splitIterables());
KafkaListenerContainerFactory<?> factory = null;
String containerFactoryBeanName = resolve(kafkaListener.containerFactory());
if (StringUtils.hasText(containerFactoryBeanName)) {
Assert.state(this.beanFactory != null, "BeanFactory must be set to obtain container factory by bean name");
try {
factory = this.beanFactory.getBean(containerFactoryBeanName, KafkaListenerContainerFactory.class);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanInitializationException("Could not register Kafka listener endpoint on [" + adminTarget
+ "] for bean " + beanName + ", no " + KafkaListenerContainerFactory.class.getSimpleName()
+ " with id '" + containerFactoryBeanName + "' was found in the application context", ex);
}
}
endpoint.setBeanFactory(this.beanFactory);
String errorHandlerBeanName = resolveExpressionAsString(kafkaListener.errorHandler(), "errorHandler");
if (StringUtils.hasText(errorHandlerBeanName)) {
endpoint.setErrorHandler(this.beanFactory.getBean(errorHandlerBeanName, KafkaListenerErrorHandler.class));
}
// 将endpoint注册到registrar
this.registrar.registerEndpoint(endpoint, factory);
if (StringUtils.hasText(beanRef)) {
this.listenerScope.removeListener(beanRef);
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
继续看 registerEndpoint
public void registerEndpoint(KafkaListenerEndpoint endpoint, KafkaListenerContainerFactory<?> factory) {
Assert.notNull(endpoint, "Endpoint must be set");
Assert.hasText(endpoint.getId(), "Endpoint id must be set");
// Factory may be null, we defer the resolution right before actually creating the container
// 把endpoint封装为KafkaListenerEndpointDescriptor
KafkaListenerEndpointDescriptor descriptor = new KafkaListenerEndpointDescriptor(endpoint, factory);
synchronized (this.endpointDescriptors) {
if (this.startImmediately) { // Register and start immediately
this.endpointRegistry.registerListenerContainer(descriptor.endpoint,
resolveContainerFactory(descriptor), true);
}
else {
// 将descriptor添加到endpointDescriptors
this.endpointDescriptors.add(descriptor);
}
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
总的来看： 得到一个含有KafkaListener基本信息的Endpoint，将Endpoint被封装到KafkaListenerEndpointDescriptor，KafkaListenerEndpointDescriptor被添加到KafkaListenerEndpointRegistrar.endpointDescriptors中，至此这部分的流程结束了，感觉没有下文呀。
KafkaListenerEndpointRegistrar.endpointDescriptors 这个List中的数据怎么用呢？
public class KafkaListenerEndpointRegistrar implements BeanFactoryAware, InitializingBean {}
- 1
- 2
KafkaListenerEndpointRegistrar 实现了 InitializingBean 接口，重写 afterPropertiesSet，该方法会在bean实例化完成后执行
@Override
public void afterPropertiesSet() {
registerAllEndpoints();
}
- 1
- 2
- 3
- 4
继续 registerAllEndpoints();
protected void registerAllEndpoints() {
synchronized (this.endpointDescriptors) {
// 遍历KafkaListenerEndpointDescriptor
for (KafkaListenerEndpointDescriptor descriptor : this.endpointDescriptors) {
// 注册
this.endpointRegistry.registerListenerContainer(
descriptor.endpoint, resolveContainerFactory(descriptor));
}
this.startImmediately = true; // trigger immediate startup
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
继续
public void registerListenerContainer(KafkaListenerEndpoint endpoint, KafkaListenerContainerFactory<?> factory) {
registerListenerContainer(endpoint, factory, false);
}
- 1
- 2
- 3
- 4
go
public void registerListenerContainer(KafkaListenerEndpoint endpoint, KafkaListenerContainerFactory<?> factory,
boolean startImmediately) {
Assert.notNull(endpoint, "Endpoint must not be null");
Assert.notNull(factory, "Factory must not be null");
String id = endpoint.getId();
Assert.hasText(id, "Endpoint id must not be empty");
synchronized (this.listenerContainers) {
Assert.state(!this.listenerContainers.containsKey(id),
"Another endpoint is already registered with id '" + id + "'");
// 创建Endpoint对应的MessageListenerContainer，将创建好的MessageListenerContainer放入listenerContainers
MessageListenerContainer container = createListenerContainer(endpoint, factory);
this.listenerContainers.put(id, container);
// 如果KafkaListener注解中有对应的group信息，则将container添加到对应的group中
if (StringUtils.hasText(endpoint.getGroup()) && this.applicationContext != null) {
List<MessageListenerContainer> containerGroup;
if (this.applicationContext.containsBean(endpoint.getGroup())) {
containerGroup = this.applicationContext.getBean(endpoint.getGroup(), List.class);
}
else {
containerGroup = new ArrayList<MessageListenerContainer>();
this.applicationContext.getBeanFactory().registerSingleton(endpoint.getGroup(), containerGroup);
}
containerGroup.add(container);
}
if (startImmediately) {
startIfNecessary(container);
}
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
