Shader Graph可视化Shader编辑工具创作一个水面倒影效果,不需要写代码就能实现效果。

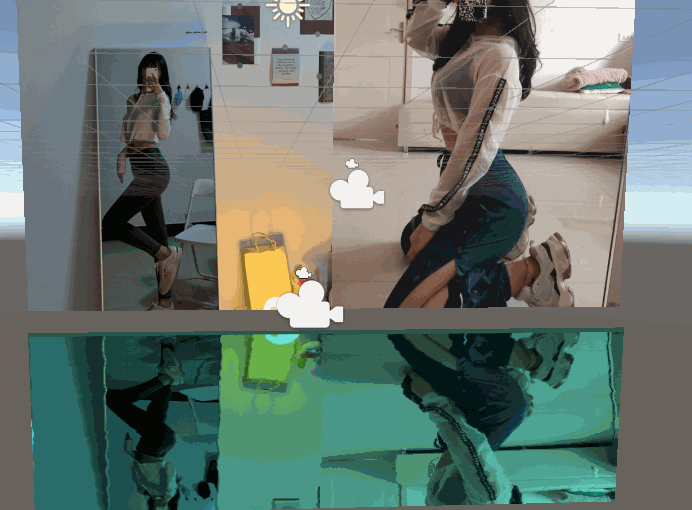

👉效果预看

👉背景

在某一个周末的傍晚,小芝突然找到小空。

🙎小芝:你看,你看,夕阳映射的晚霞特别美。

🙈小空:恩,确实。

🙎小芝:……你根本没有认真看,老敷衍怪了。你想想要是在海边倒映出来那多幸福啊。

🙈小空沉思:倒影,倒影,这个怎么能让她在Unity中搞起来呢?

🙎小芝:……,完了完了,又沉寂进去了。

👉案例环境

Unity 2020.3系列f1

Package Manager包管理器中确保安装了Shader Graph

思路:

  1. 利用另外一个相机捕捉画面,翻转后放到下面。
  2. 利用Shader Graph为画面添加水波效果。

👉实践过程

首先建立一个WaterShadow的文件夹,以下创建全部在此文件夹下。

右键在里面创建一个Render Texture(渲染器纹理)起名叫做Water Render,尺寸可以看着效果对应着改。

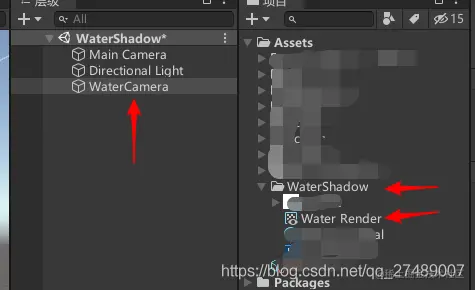

在场景中创建一个Camera(相机),改名为WaterCamera,相机属性和Main Camera(主相机)相同,不同的是摄像的内容是你想要映射的内容。稍微自己调下位置即可。

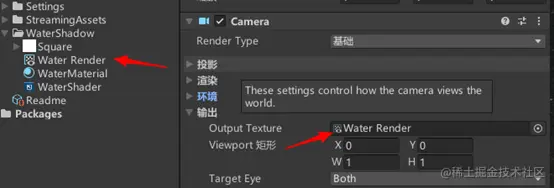

重点——指定WaterCamera的Output Texture为刚才创建的Water Render。原理:将相机摄入的内容渲染到Water Render中,将这个Render借住其他组件在场景中展示出来即可。

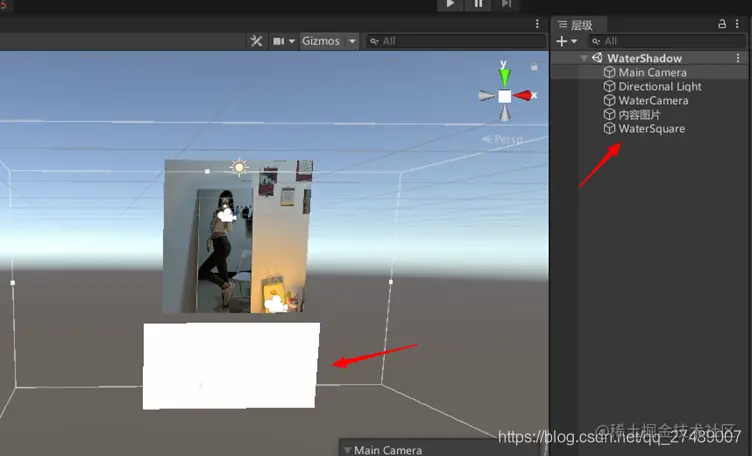

创建一个Square(右键-创建-2D-Sprites中),并且拖拽到场景中,改名为WaterSquare,然后调整合适的位置。

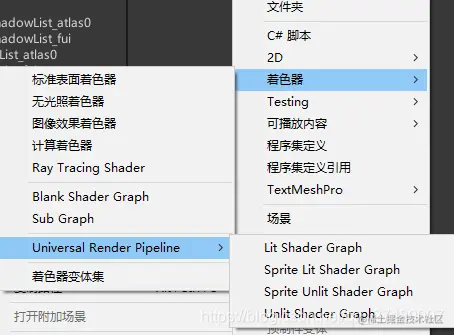

创建一个Shader(右键-Shader-URP-Sprite Unlit Shader),改名为WaterShader,双击就能打开它

超级重点

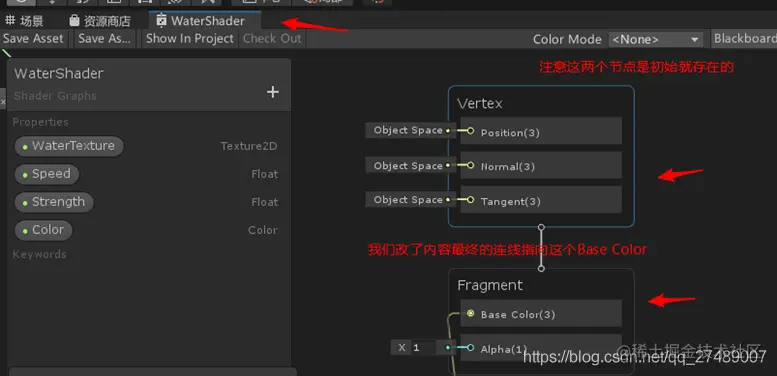

在这里右键我们可以创建节点Node(有各种各样的类型)

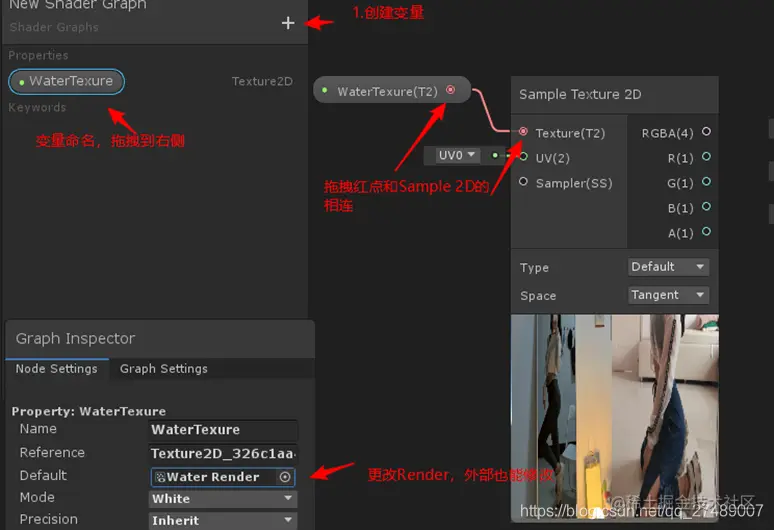

为了在外部能够随时更改里面的内容,我们先创建一个Texture2D变量,然后将变量拖拽到舞台中,接着创建一个Sample Texture 2D节点,最后将变量节点指向此节点的Texture

我们想要先预览一下效果,在WaterShadow文件夹中创建材质Material,改名为WaterMaterial,然后将Shader赋给这个Material一种是直接拖拽WaterShader到WaterMaterial上,一种是在WaterMaterial右侧选择,然后我们将WaterMaterial拖拽赋值给WaterSquare(直接拖拽到场景中赋值即可),接着你就会看到效果啦。

这种效果我们还并不满足,我们要继续往下优化,将内容翻转,所有需要创建Tiling And Offset翻转节点。

接着运行查看发现很像水面的效果了。但这还不够逼真,我们需要模拟出水面的波纹效果。那么我们就需要去继续添加噪点的节点Simple Noise。

这时候还没够,这时候还是静态的,我们需要动态的,那么我们就需要利用时间的变化来动起来(创建Time节点)

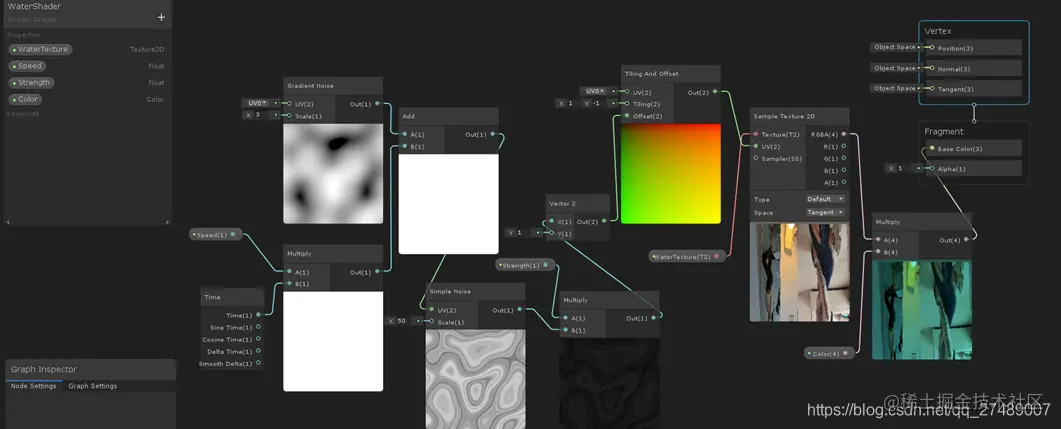

经过各种连接后,我们创建了下面一个可视化的Shader。

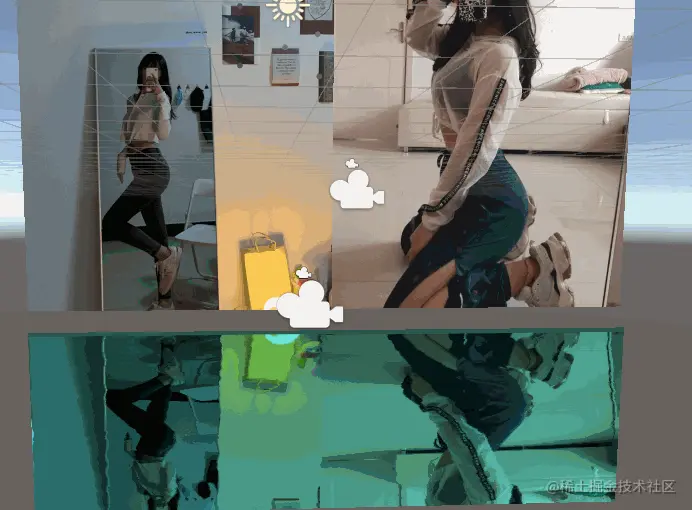

我们看看运行后的效果:

最后我们附上代码的Shader。文末有想项目源码下载地址。
