性能监控之 Telegraf+InfluxDB+Grafana 实现结构化日志实时监控

背景

由于我们的自研客户端压测工具的测试结果是结构化日志文件，而考虑到目前性能监控需要做到实时化和集中化，那么需要一种定时和批量采集结构化日志文件的采集 agent，而刚好 Telegraf Logparser插件可以满足这个需求。

Telegraf logparser

Logparser插件流式传输并解析给定的日志文件，目前支持解析 “grok” 模式和正则表达式模式。

Grok 解析器

熟悉 grok 解析器的最佳途径是参考 logstash文档：
https://www.elastic.co/guide/en/logstash/current/plugins-filters-grok.html
Telegraf 解析器使用经过稍微修改的 logstash “grok” 模式版本，其格式为

%{<capture_syntax>[:<semantic_name>][:<modifier>]}

• capture_syntax ：定义解析输入行的 grok 模式
• semantic_name：用于命名字段或标记
• modifier：扩展被解析项转换为的数据类型或其他特殊处理

默认情况下，所有命名的捕获都转换为字符串字段。如果模式没有语义名称，则不会捕获它。时间戳修饰符可用于将捕获转换为已解析度量的时间戳。如果未解析任何时间戳，则将使用当前时间创建度量。

注意:每行必须捕获至少一个字段。将所有捕获转换为标记的模式将导致无法写入到时序数据库的点。

• Available modifiers:
  • string (default if nothing is specified)
  • int
  • float
  • duration (ie, 5.23ms gets converted to int nanoseconds)
  • tag (converts the field into a tag)
  • drop (drops the field completely)
• Timestamp modifiers:
  • ts (This will auto-learn the timestamp format)
  • ts-ansic (“Mon Jan _2 15:04:05 2006”)
  • ts-unix (“Mon Jan _2 15:04:05 MST 2006”)
  • ts-ruby (“Mon Jan 02 15:04:05 -0700 2006”)
  • ts-rfc822 (“02 Jan 06 15:04 MST”)
  • ts-rfc822z (“02 Jan 06 15:04 -0700”)
  • ts-rfc850 (“Monday, 02-Jan-06 15:04:05 MST”)
  • ts-rfc1123 (“Mon, 02 Jan 2006 15:04:05 MST”)
  • ts-rfc1123z (“Mon, 02 Jan 2006 15:04:05 -0700”)
  • ts-rfc3339 (“2006-01-02T15:04:05Z07:00”)
  • ts-rfc3339nano (“2006-01-02T15:04:05.999999999Z07:00”)
  • ts-httpd (“02/Jan/2006:15:04:05 -0700”)
  • ts-epoch (seconds since unix epoch, may contain decimal)
  • ts-epochmilli (milliseconds since unix epoch, may contain decimal)
  • ts-epochnano (nanoseconds since unix epoch)
  • ts-syslog (“Jan 02 15:04:05”, parsed time is set to the current year)
  • ts-“CUSTOM”

自定义时间格式必须在引号内，并且必须是 “参考时间” 的表示形式 on Jan 2 15:04:05 -0700 MST 2006。
要匹配逗号小数点，可以使用句点。例如，%{TIMESTAMP:timestamp:ts-"2006-01-02 15:04:05.000"} 可以用来匹配 "2018-01-02 15:04:05,000" 要匹配逗号小数点，可以在模式字符串中使用句点。

有关更多详细信息，请参考：
https://golang.org/pkg/time/#Parse

Telegraf 具有许多自己的内置模式，并支持大多数 logstash 的内置模式。 Golang 正则表达式不支持向前或向后查找。不支持依赖于这些的logstash 模式。

如果需要构建模式以匹配日志的调试，使用 https://grokdebug.herokuapp.com 调试非常有用！

示例

我们可以使用 logparser 将 Telegraf 生成的日志行转换为指标。

为此，我们需要配置 Telegraf 以将日志写入文件。可以使用 agent.logfile 参数或配置 syslog 来完成。

[agent]
  logfile = "/var/log/telegraf/telegraf.log"

Logparser配置：

[[inputs.logparser]]
  files = ["/var/log/telegraf/telegraf.log"]

  [inputs.logparser.grok]
    measurement = "telegraf_log"
    patterns = ['^%{TIMESTAMP_ISO8601:timestamp:ts-rfc3339} %{TELEGRAF_LOG_LEVEL:level:tag}! %{GREEDYDATA:msg}']
    custom_patterns = '''
TELEGRAF_LOG_LEVEL (?:[DIWE]+)
'''

log 内容：

2018-06-14T06:41:35Z I! Starting Telegraf v1.6.4
2018-06-14T06:41:35Z I! Agent Config: Interval:3s, Quiet:false, Hostname:"archer", Flush Interval:3s
2018-02-20T22:39:20Z E! Error in plugin [inputs.docker]: took longer to collect than collection interval (10s)
2018-06-01T10:34:05Z W! Skipping a scheduled flush because there is already a flush ongoing.
2018-06-14T07:33:33Z D! Output [file] buffer fullness: 0 / 10000 metrics.

InfluxDB 采集的数据：

telegraf_log,host=somehostname,level=I msg="Starting Telegraf v1.6.4" 1528958495000000000
telegraf_log,host=somehostname,level=I msg="Agent Config: Interval:3s, Quiet:false, Hostname:\"somehostname\", Flush Interval:3s" 1528958495001000000
telegraf_log,host=somehostname,level=E msg="Error in plugin [inputs.docker]: took longer to collect than collection interval (10s)" 1519166360000000000
telegraf_log,host=somehostname,level=W msg="Skipping a scheduled flush because there is already a flush ongoing." 1527849245000000000
telegraf_log,host=somehostname,level=D msg="Output [file] buffer fullness: 0 / 10000 metrics." 1528961613000000000

具体实践

日志格式

需要采集的结构化日志示例如下：

TestConfig1,5.0,2019/3/6 17:48:23,2019/3/6 17:48:30,demo_1,open,3,1,6.8270219,openscreen>validatestage
TestConfig2,5.0,2019/3/6 17:48:33,2019/3/6 17:48:40,demo_2,open,3,2,6.9179322,openscreen>validatestage
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag
TestConfig3,5.0,2019/3/6 17:48:43,2019/3/6 17:50:23,demo_1,open,3,3,100.1237885,switchscreen>validatestag

注意：这个日志是批量生成的，每一次客户端压测当前目录都会生成一个 *.log 的文件。数据采集的时候需要为对应列指定列名。

Telegraf 配置

配置 Telegraf.conf

[[inputs.logparser]]
  ## Log files to parse.
  ## These accept standard unix glob matching rules, but with the addition of
  ## ** as a "super asterisk". ie:
  ##   /var/log/**.log     -> recursively find all .log files in /var/log
  ##   /var/log/*/*.log    -> find all .log files with a parent dir in /var/log
  ##   /var/log/apache.log -> only tail the apache log file
  files = ["C:\\Release\\TestConfigLog\\*.log"]

  ## Read files that currently exist from the beginning. Files that are created
  ## while telegraf is running (and that match the "files" globs) will always
  ## be read from the beginning.
  from_beginning = false

  ## Method used to watch for file updates.  Can be either "inotify" or "poll".
  watch_method = "poll"

  ## Parse logstash-style "grok" patterns:
  ##   Telegraf built-in parsing patterns: https://goo.gl/dkay10
  [inputs.logparser.grok]
    ## This is a list of patterns to check the given log file(s) for.
    ## Note that adding patterns here increases processing time. The most
    ## efficient configuration is to have one pattern per logparser.
    ## Other common built-in patterns are:
    ##   %{COMMON_LOG_FORMAT}   (plain apache & nginx access logs)
    ##   %{COMBINED_LOG_FORMAT} (access logs + referrer & agent)
    patterns = ['%{WORD:scene},%{NUMBER:version:float},%{TS_WIN:begtime},%{TS_WIN:endtime},%{WORD:canvasName},%{WORD:canvasCase},%{NUMBER:totaltimes:int},%{NUMBER:current:int},%{NUMBER:time_consuming:float}']

    ## Name of the outputted measurement name.
    measurement = "bigscreen"

    ## Full path(s) to custom pattern files.
    ## custom_pattern_files = []

    ## Custom patterns can also be defined here. Put one pattern per line.
    custom_patterns = 'TS_WIN %{YEAR}/%{MONTHNUM}/%{MONTHDAY}[T ]%{HOUR}:?%{MINUTE}(?::?%{SECOND})?'

    ## Timezone allows you to provide an override for timestamps that
    ## don't already include an offset
    ## e.g. 04/06/2016 12:41:45 data one two 5.43µs
    ##
    ## Default: "" which renders UTC
    ## Options are as follows:
    ##   1. Local             -- interpret based on machine localtime
    ##   2. "Canada/Eastern"  -- Unix TZ values like those found in https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
    ##   3. UTC               -- or blank/unspecified, will return timestamp in UTC
    timezone = "Local"

注意：

• files = [" *.log"]，解决了当前目录多文件对象匹配的需求
• watch_method = "poll"，设置轮训获取文件更新
• custom_patterns，自定义一个时间格式化模式匹配

InfluxDB 生成的指标数据如下：

> select * from bigscreen limit 5
name: bigscreen
time                begtime           canvasCase canvasName current endtime           host            path                                                    scene       time_consuming totaltimes version
----                -------           ---------- ---------- ------- -------           ----            ----                                                    -----       -------------- ---------- -------
1552296231630588200 2019/3/6 17:48:43 open       demo_1     3       2019/3/6 17:50:23 DESKTOP-MLD0KTS C:\Users\htsd\Desktop\VBI5\Release\TestConfigLog\1.log  TestConfig3 100.1237885    3          5
1552296231630588201 2019/3/6 17:48:43 open       demo_1     3       2019/3/6 17:50:23 DESKTOP-MLD0KTS C:\Users\htsd\Desktop\VBI5\Release\TestConfigLog\1.log  TestConfig3 100.1237885    3          5
1552296231630588202 2019/3/6 17:48:43 open       demo_1     3       2019/3/6 17:50:23 DESKTOP-MLD0KTS C:\Users\htsd\Desktop\VBI5\Release\TestConfigLog\1.log  TestConfig3 100.1237885    3          5
1552296231631587700 2019/3/6 17:48:43 open       demo_1     3       2019/3/6 17:50:23 DESKTOP-MLD0KTS C:\Users\htsd\Desktop\VBI5\Release\TestConfigLog\1.log  TestConfig3 100.1237885    3          5
1552297570005076300 2019/3/6 17:48:23 open       demo_1     1       2019/3/6 17:48:30 DESKTOP-MLD0KTS C:\Users\htsd\Desktop\VBI5\Release\TestConfigLog\12.log TestConfig1 6.8270219      3          5

列名都是我们自定义的。

Grafana设置

整体的考虑是使用一个表格进行数据展示，支持按个别字段筛选。

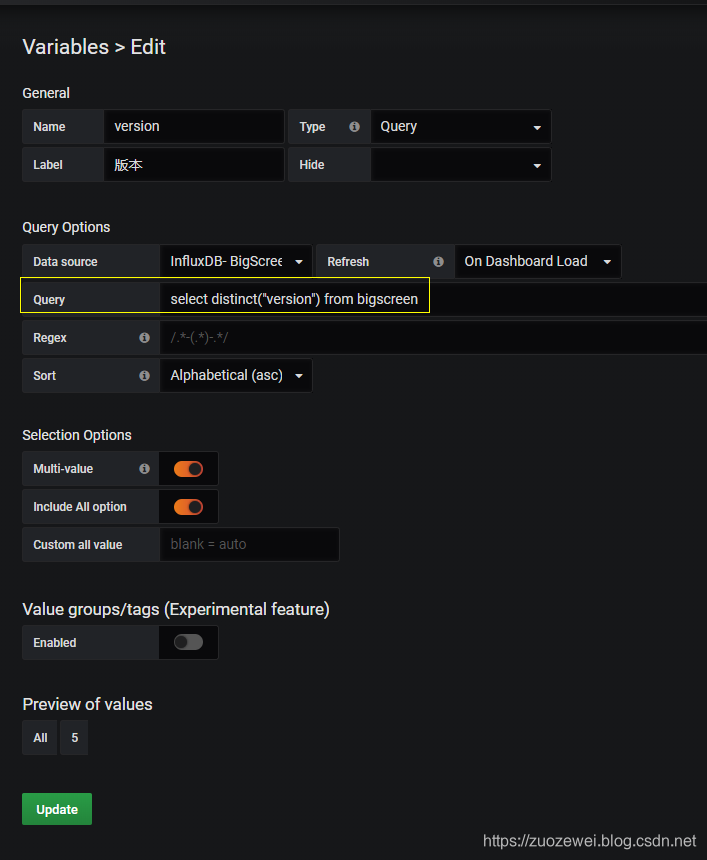

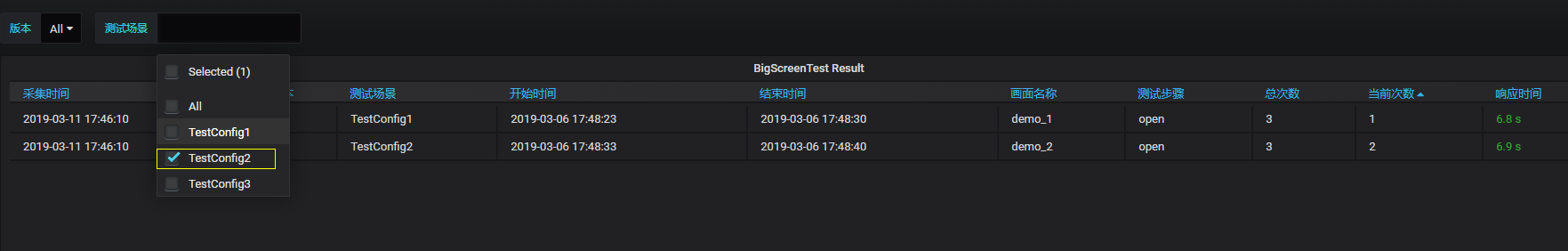

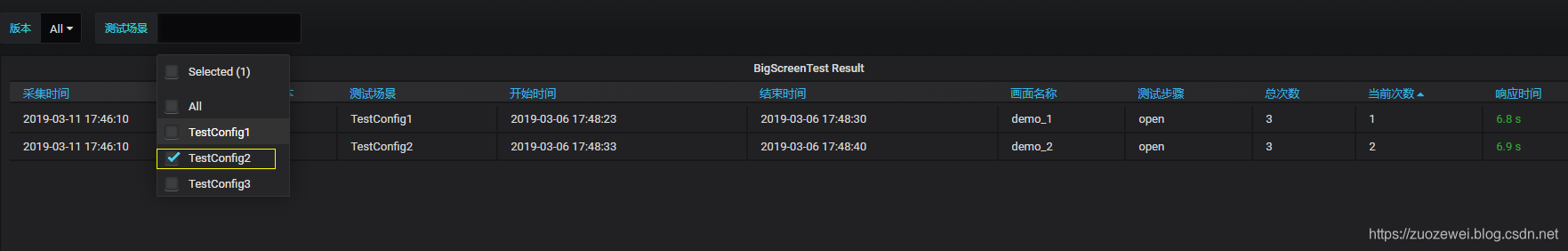

设置筛选变量，满足字段过滤筛选要求：

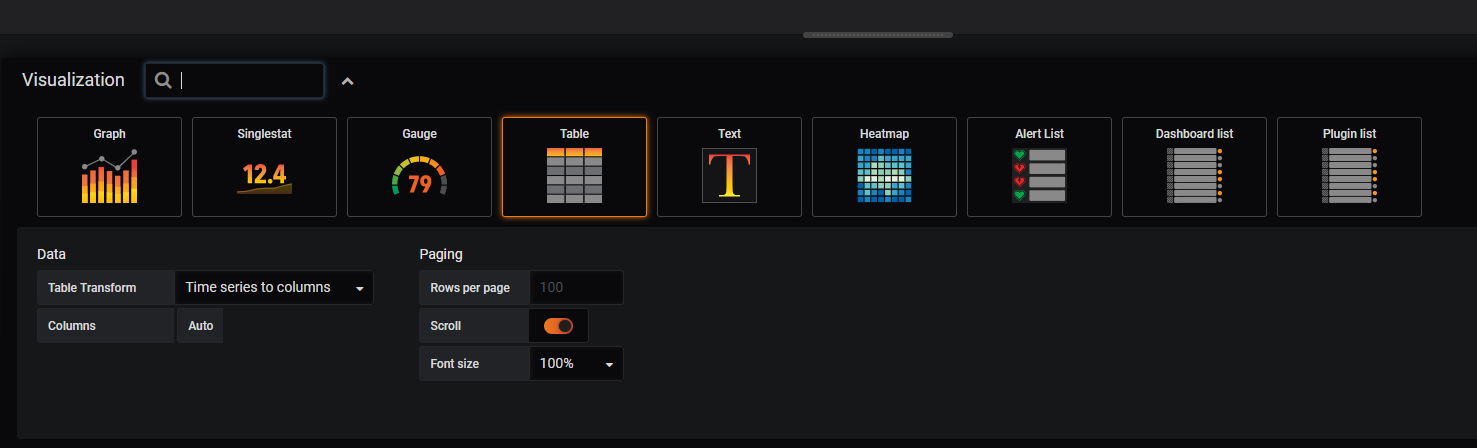

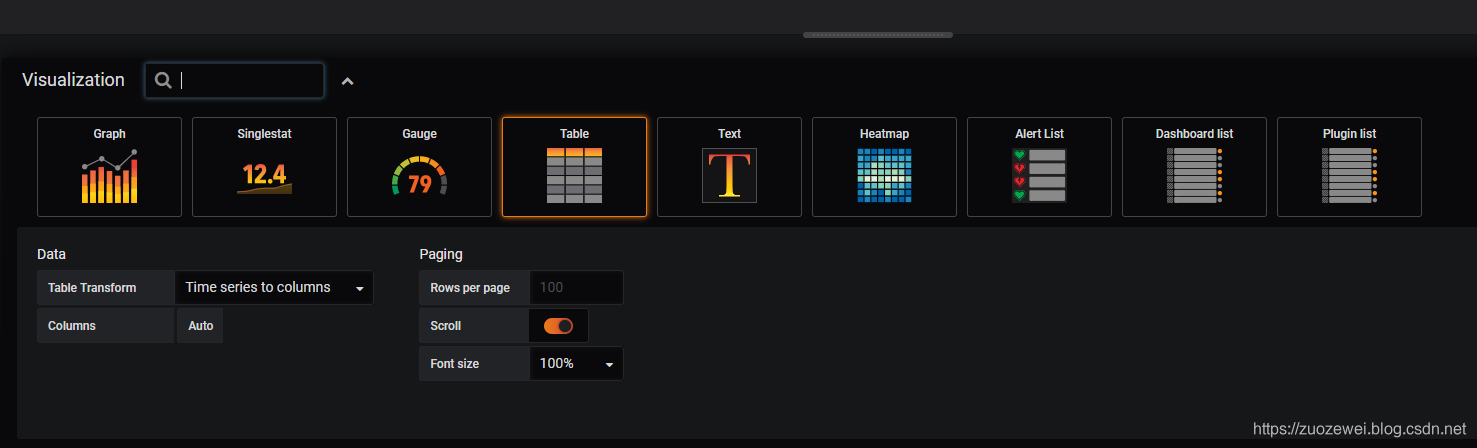

创建Dashboard，并选择表格组件：

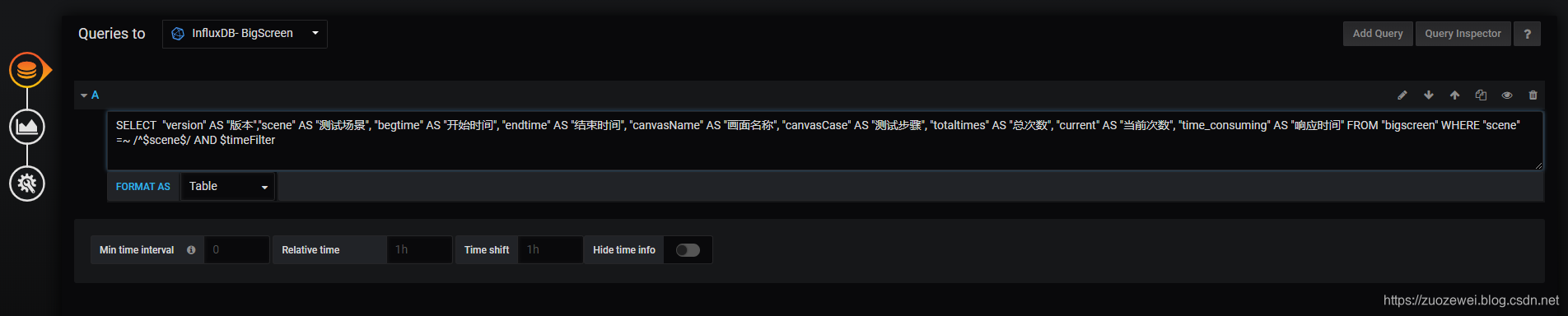

定义数据源：

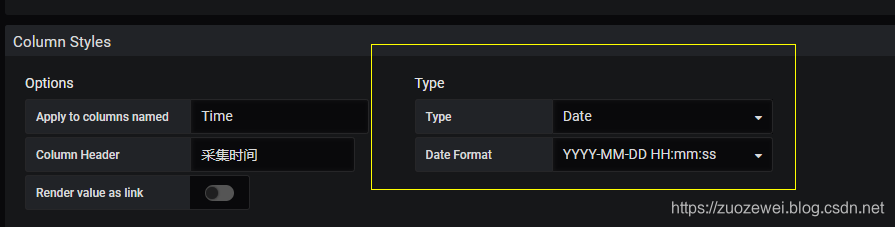

设置表格字段样式，对时间字段进行格式化

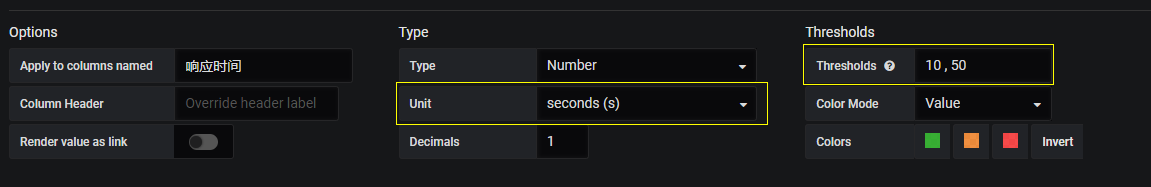

对响应时间字段进行不同级别高亮设置（绿，黄，红三个颜色）

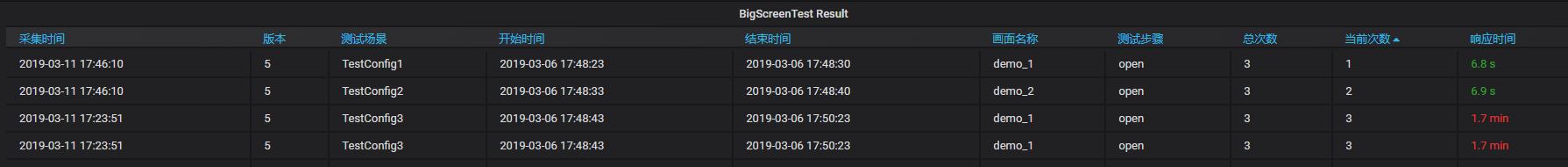

实际的动态效果如下：

小结

本文通过一个简单的示例展示了 Telegraf+InfluxDB+Grafana 如何对结构化日志进行实时监控，当然也支持非结构化日志采集，大家有兴趣的话也可以自己动手实践。
