本文参考Android属性动画完全解析(上),初识属性动画的基本用法

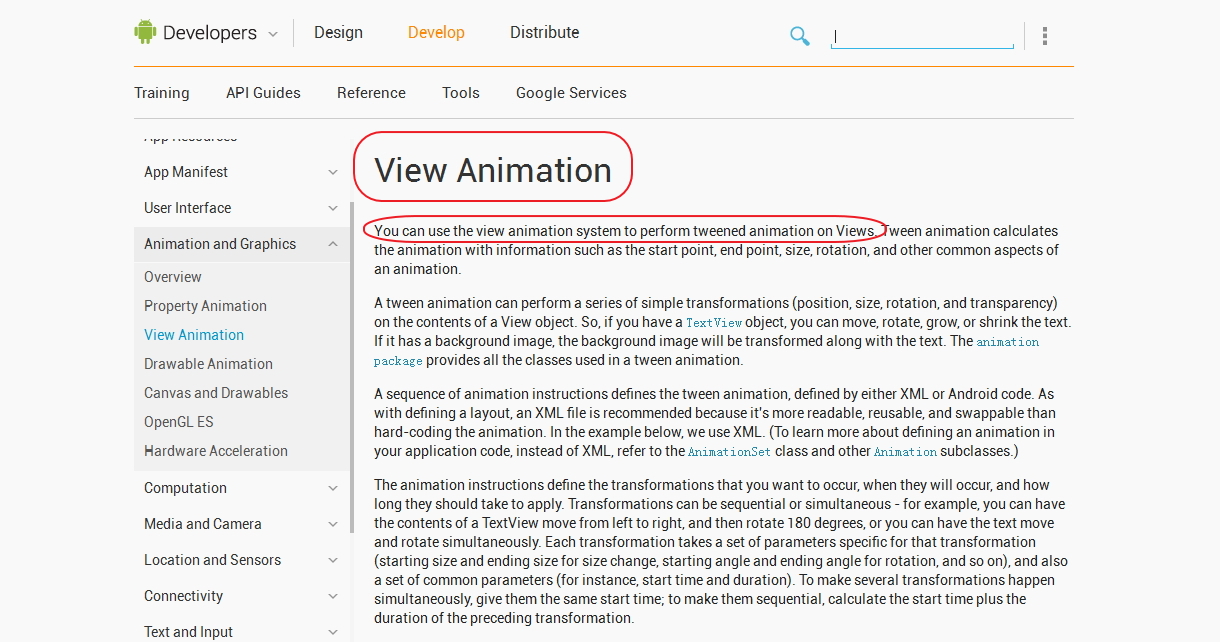

android3.0之前一共有两种动画,分别是frame动画和tween动画,关于这两种动画如果不了解可以查看我之前的文章android之frame动画详解android之tween动画详解 ,frame动画就是逐帧动画,把多张图片放在一起连续播放实现一种类似于gif图片的动画效果,tween动画就是补间动画,主要是对图像进行平移,缩放,旋转,改变透明度等。然而tween动画有很大的局限性,我们看看官方文档:
这里写图片描述

tween动画被称作View Animation,第一句就说的很清楚了,你可以使用View Animation System 来在View上实现tween动画。也就是说tween动画只能作用在view上,可是如果我们想变换一个自定义View的颜色该怎么办?抱歉,tween无法做到。

android3.0推出了一种新的动画实现方式,那就是属性动画,属性动画,顾名思义,就是作用在View的属性上,我们可以让View的属性实现动画效果。

说到这里我们不得不介绍ObjectAnimator类,这个也是在实际开发中用的最多的,追根溯源,我们发现ObjectAnimator继承自ValueAnimator,ValueAnimator可以帮助我们实现一些简单的数值的变化,不过到目前为止还没用上这个东东。

下面我们先来看看怎么使用属性动画来实现tween动画效果:

ObjectAnimator animator = ObjectAnimator.ofFloat(tv, "alpha", 1f, 0.5f); animator.setDuration(5000); animator.start();


  • 1
  • 2
  • 3
  • 4

我们通过ofFloat方法来获得一个ObjectAnimator实例,先看看该方法的源码:

 public static ObjectAnimator ofFloat(Object target, String propertyName, float... values) { ObjectAnimator anim = new ObjectAnimator(target, propertyName); anim.setFloatValues(values); return anim; }


  • 1
  • 2
  • 3
  • 4
  • 5

从源码中可以看到该方法接收N个参数,第一个是我们要设置动画的对象,第二个参数给哪个属性设置动画,后面两个参数表示控件从不透明变为半透明,后面的参数可以传N多个,比如

ObjectAnimator animator = ObjectAnimator.ofFloat(tv, "alpha", 1f, 0.5f,1f,0f);


  • 1
  • 2

表示控件从不透明到半透明再到不透明,最后到全透明这样一个状态。有了这个例子之后,我想要实现其他tween动画实现的效果都不是问题了。

旋转:

ObjectAnimator animator2 = ObjectAnimator.ofFloat(tv2, "rotation", 0f, 360f); animator2.setDuration(5000); animator2.start();


  • 1
  • 2
  • 3
  • 4

平移:

float curTranslationX = tv.getTranslationX(); ObjectAnimator animator = ObjectAnimator.ofFloat(tv, "translationX", curTranslationX, -1000f, curTranslationX); animator.setDuration(3000); animator.start();


  • 1
  • 2
  • 3
  • 4
  • 5

如果要实现组合动画效果呢?

ObjectAnimator moveIn = ObjectAnimator.ofFloat(tv, "translationX", -500f, 0f); ObjectAnimator rotate = ObjectAnimator.ofFloat(tv, "rotation", 0f, 360f); ObjectAnimator fadeInOut = ObjectAnimator.ofFloat(tv, "alpha", 1f, 0f, 1f); AnimatorSet animSet = new AnimatorSet(); animSet.play(rotate).with(fadeInOut).after(moveIn); animSet.setDuration(5000); animSet.start();


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10

哈哈,还是很简单吧。
这里有一个需要注意的地方就是:


 // after(Animator anim) 现有动画在传入的动画之后执行 // after(long delay) 现有动画延迟指定毫秒后执行 // before(Animator anim) 现有动画在传入的动画之前执行 // with(Animator anim) 现有动画和传入的动画同时执行



  • 1
  • 2
  • 3
  • 4

当然,属性动画和tween动画一样,即可以使用代码实现也可以使用xml来实现,那么我们看看怎么通过xml文件来实现属性动画:

<set xmlns:android="http://schemas.android.com/apk/res/android" android:ordering="sequentially" > <objectAnimator
 android:duration="2000" android:propertyName="translationX" android:valueFrom="-1000" android:valueTo="0" android:valueType="floatType" > </objectAnimator> <set android:ordering="together" > <objectAnimator
 android:duration="3000" android:propertyName="rotation" android:valueFrom="0" android:valueTo="360" android:valueType="floatType" > </objectAnimator> <set android:ordering="sequentially" > <objectAnimator
 android:duration="1500" android:propertyName="alpha" android:valueFrom="1" android:valueTo="0" android:valueType="floatType" > </objectAnimator> <objectAnimator
 android:duration="1500" android:propertyName="alpha" android:valueFrom="0" android:valueTo="1" android:valueType="floatType" > </objectAnimator> </set> </set>

</set>


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39

android:ordering的值为together表示各个维度的变化同时发生,缺省值也是together,sequentially表示动画依次发生。

基本上就是这样。
