汇编语言--8251串行接口应用试验

题目

自发自收试验：将3000H起始的10个单元中的起始数据发送到串口，然后自接自收保存到4000H起始的内存单元中

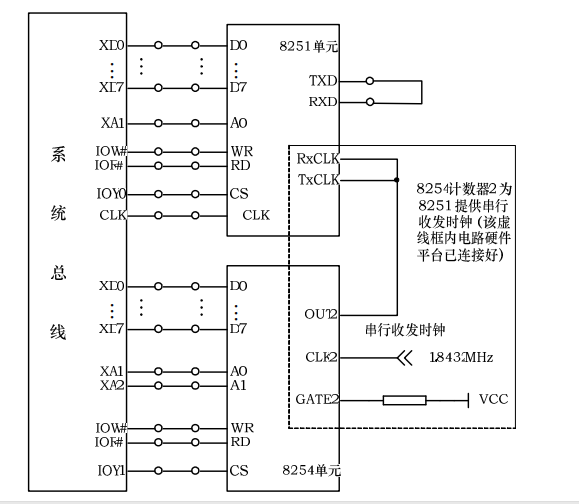

实验电路图

实验代码

;===========================================================
; 文件名: A82512.ASM
; 功能描述: 自收自发实验程序, 源地址4000H, 目的地址3000H
;===========================================================

IOY0 EQU  0600H ;IOY0起始地址
IOY1 EQU  0640H ;IOY1起始地址
M8251_DATA		EQU IOY0+00H*2
M8251_CON		EQU IOY0+01H*2
M8254_2			EQU IOY1+02H*2
M8254_CON		EQU IOY1+03H*2

SSTACK	SEGMENT STACK
		DW 64 DUP(?)
SSTACK	ENDS
CODE	SEGMENT
		ASSUME CS:CODE
START:	MOV AX, 0000H
		MOV DS, AX
		;初始化8254，得到收发时钟
		MOV AL, 0B6H
		MOV DX, M8254_CON
		OUT DX, AL
		MOV AL, 0CH
		MOV DX, M8254_2
		OUT DX, AL
		MOV AL, 00H
		OUT DX, AL
		;复位8251
		CALL INIT
		CALL DALLY
		;8251方式字
		MOV AL,7EH
		MOV DX, M8251_CON OUT DX, AL
		CALL DALLY
		;8251控制字 MOV AL, 34H
		OUT DX, AL
		CALL DALLY
		MOV DI, 3000H
		MOV SI, 4000H
		MOV CX, 000AH
A1:		MOV AL, [SI]
		PUSH AX
		MOV AL, 37H
		MOV DX, M8251_CON
		OUT DX, AL POP AX MOV DX, M8251_DATA
		OUT DX, AL ;发送数据
		MOV DX, M8251_CON
A2:		IN AL, DX ;判断发送缓冲是否为空
		AND AL, 01H
		JZ A2
		CALL DALLY
A3:		IN AL, DX ;判断是否接收到数据
		AND AL, 02H
		JZ A3
		MOV DX, M8251_DATA
		IN AL, DX ;读取接收到的数据
		MOV [DI], AL
		INC DI
		INC SI
		LOOP A1
		MOV AX,4C00H
		INT 21H ;程序终止
INIT:	MOV AL, 00H ;复位8251子程序
		MOV DX, M8251_CON
		OUT DX, AL
		CALL DALLY
		OUT DX, AL
		CALL DALLY
		OUT DX, AL
		CALL DALLY
		MOV AL, 40H
		OUT DX, AL
		RET
DALLY:	PUSH CX
		MOV CX,3000H
A5:		PUSH AX
		POP AX
		LOOP A5
		POP CX
		RET
CODE	ENDS
		END START
