设计模式之观察者模式

1 观察者模式

当一个对象被修改时，则会自动通知它的依赖对象。观察者模式属于行为型模式。定义对象间的一种一对多的依赖关系，当一个对象的状态发生改变时，所有依赖于它的对象都得到通知并被自动更新

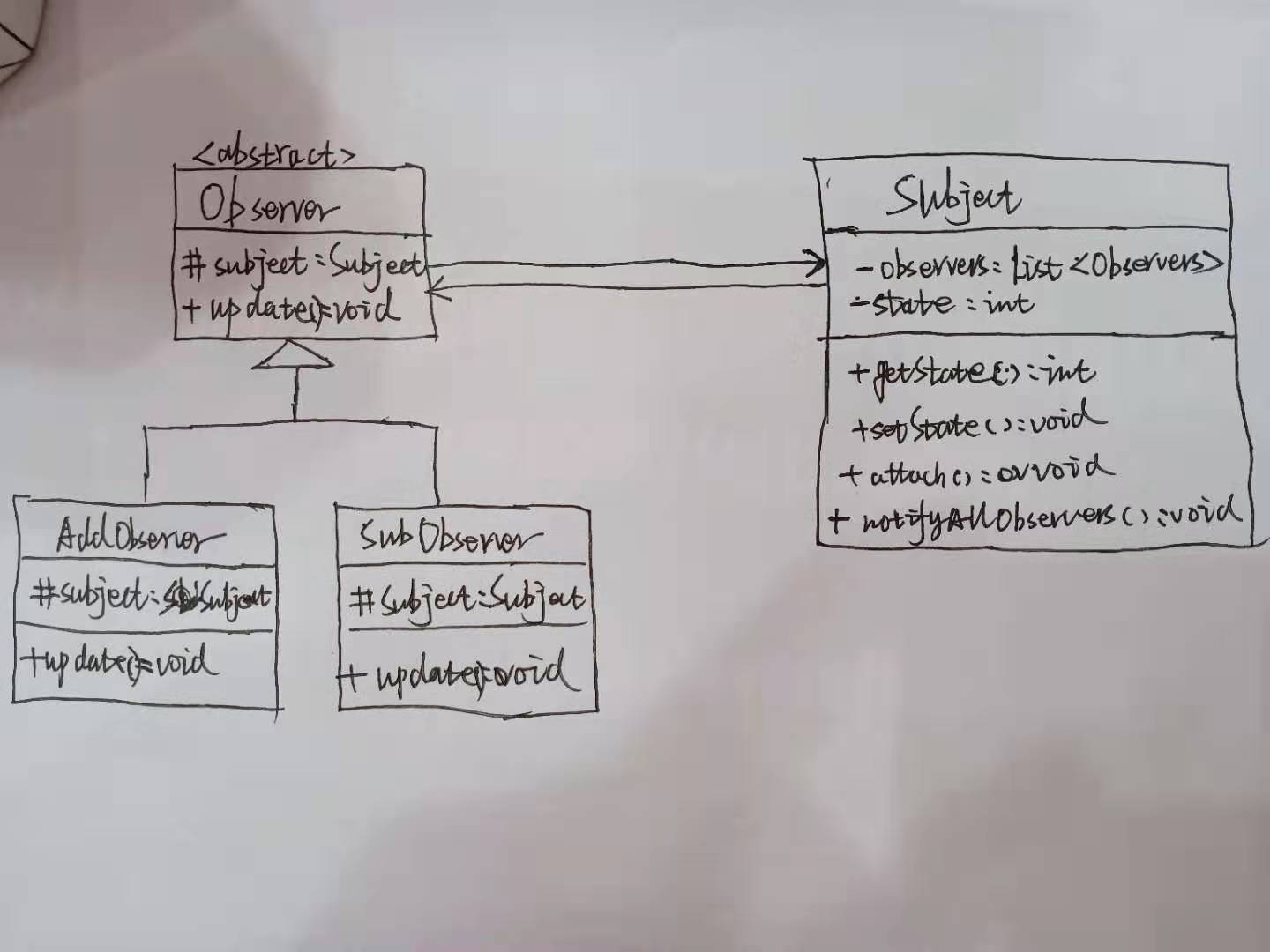

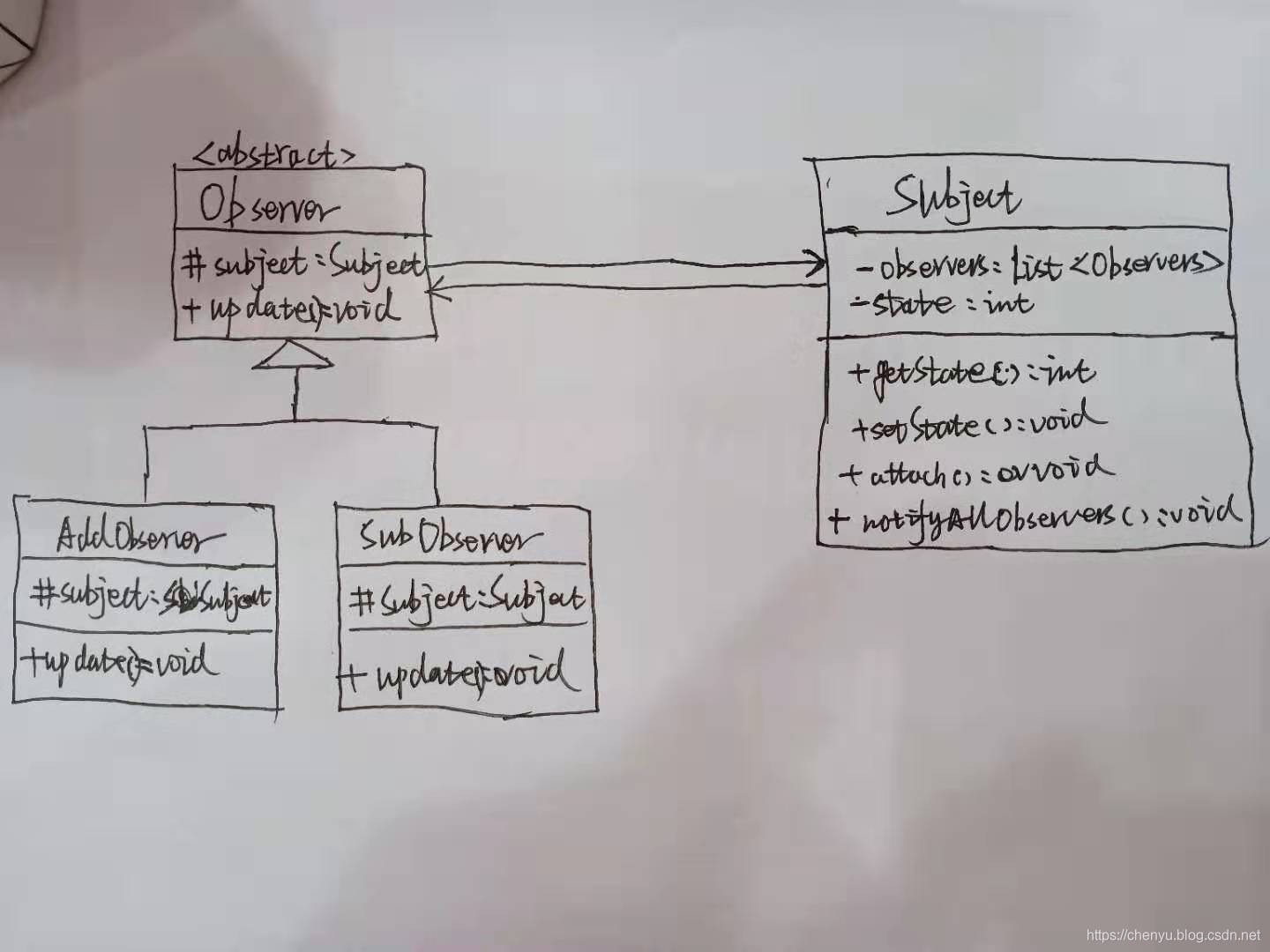

2 类图

3 代码实现

1）Observer.java














      public abstract class Observer {












   protected Subject subject;












   public abstract void update();













      }





2）AddObserver.java














      public class AddObserver extends Observer{


























         public AddObserver(Subject subject){












 this.subject = subject;












 this.subject.attach(this);













         }

























   @Override













         public void update() {












 System.out.println( "add value is: "













       + (subject.getState() + subject.getState()));













         }













      }





3）SubObserver.java














      public class SubObserver extends Observer{


























         public SubObserver(Subject subject){












 this.subject = subject;












 this.subject.attach(this);













         }

























   @Override













         public void update() {












 System.out.println( "sub value is: "













       + (subject.getState() - 5));













         }













      }





4）Subject.java














      import java.util.ArrayList;













      import java.util.List;


























      public class Subject {

























   private List<Observer> observers













       = new ArrayList<Observer>();












   private int state;

























   public int getState() {












 return state;













         }

























   public void setState(int state) {












 this.state = state;













       notifyAllObservers();













         }

























   public void attach(Observer observer){













       observers.add(observer);













         }

























   public void notifyAllObservers(){












 for (Observer observer : observers) {













       observer.update();













       }













         }













      }





5）Test.java














      public class Test {












   public static void main(String[] args) {













       Subject subject = new Subject();

























 new AddObserver(subject);












 new SubObserver(subject);


























       System.out.println("add value state to 5");













       subject.setState(5);













       System.out.println("add value state to 8");













       subject.setState(10);













         }













      }





4 运行结果














      add value state to 5













      add value is: 10













      sub value is: 0













      add value state to 5













      add value is: 16













      sub value is: 3
