Pymol（1.8.6）作图技巧之创建质心

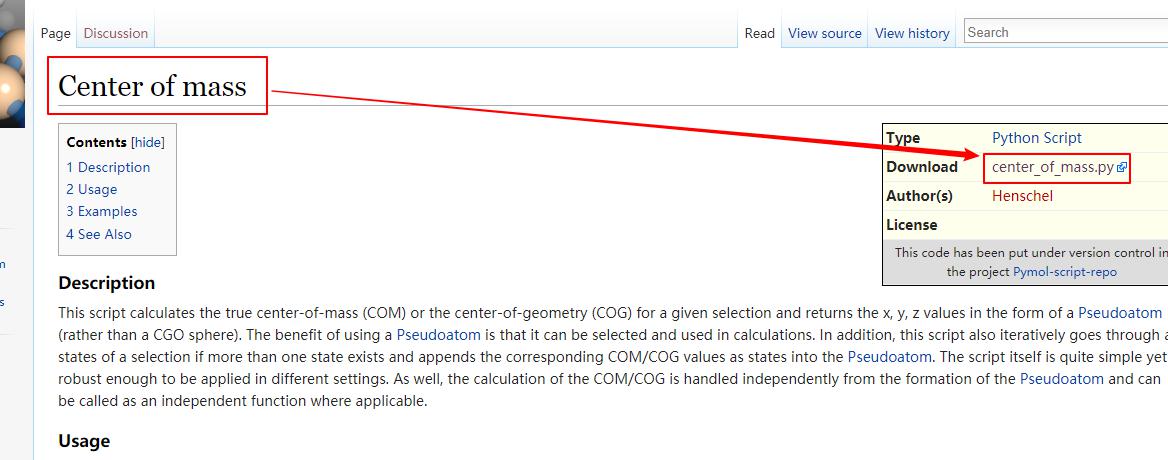

一、首先，访问pymolwikiCenter of Mass，下载center_of_mass.py脚本；

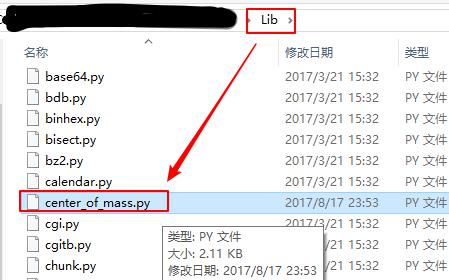

或者把下面文件保存为center_of_mass.py文件。














      See more here: http://www.pymolwiki.org/index.php/center_of_mass


























      DESCRIPTION


























         Places a pseudoatom at the center of mass


























         Author: Sean Law













         Michigan State University













         slaw (at) msu . edu


























      SEE ALSO


























         pseudoatom, get_com













      '''



























      from __future__ import print_function













      from pymol import cmd









































      def com(selection, state=None, mass=None, object=None, quiet=1, **kwargs):













       quiet = int(quiet)













       if (object == None):













       try:













       object = cmd.get_legal_name(selection)













       object = cmd.get_unused_name(object + "_COM", 0)













       except AttributeError:













       object = 'COM'













       cmd.delete(object)



























       if (state != None):













       x, y, z = get_com(selection, mass=mass, quiet=quiet)













       if not quiet:













       print("%f %f %f" % (x, y, z))













       cmd.pseudoatom(object, pos=[x, y, z], **kwargs)













       cmd.show("spheres", object)













       else:













       for i in range(cmd.count_states()):













       x, y, z = get_com(selection, mass=mass, state=i + 1, quiet=quiet)













       if not quiet:













       print("State %d:%f %f %f" % (i + 1, x, y, z))













       cmd.pseudoatom(object, pos=[x, y, z], state=i + 1, **kwargs)













       cmd.show("spheres", 'last ' + object)



























      cmd.extend("com", com)









































      def get_com(selection, state=1, mass=None, quiet=1):













       """













       DESCRIPTION



























       Calculates the center of mass



























       Author: Sean Law













       Michigan State University













       slaw (at) msu . edu













       """













       quiet = int(quiet)



























       totmass = 0.0













       if mass != None and not quiet:













       print("Calculating mass-weighted COM")



























       state = int(state)













       model = cmd.get_model(selection, state)













       x, y, z = 0, 0, 0













       for a in model.atom:













       if (mass != None):













       m = a.get_mass()













       x += a.coord[0] * m













       y += a.coord[1] * m













       z += a.coord[2] * m













       totmass += m













       else:













       x += a.coord[0]













       y += a.coord[1]













       z += a.coord[2]



























       if (mass != None):













       return x / totmass, y / totmass, z / totmass













       else:













       return x / len(model.atom), y / len(model.atom), z / len(model.atom)



























      cmd.extend("get_com", get_com)



























      # vi:expandtab:sw=3





三、创建质心操作

导入center of mass

import center_of_mass

修改质心球大小

set sphere_scale,0.4

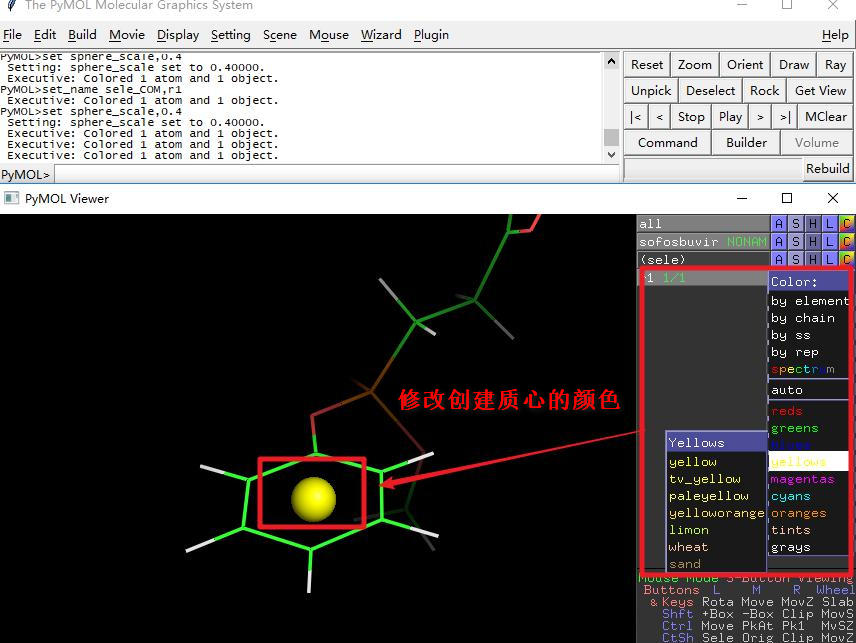

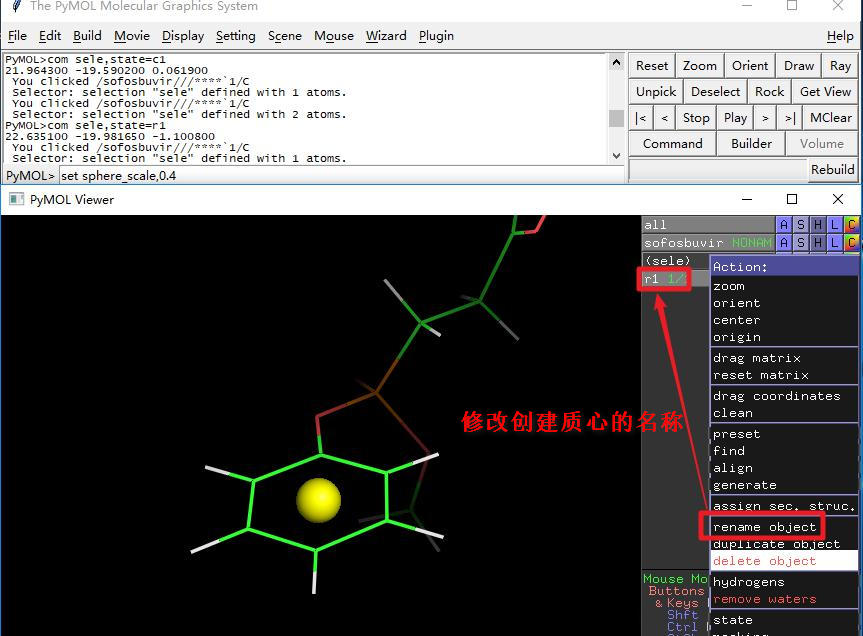

创建质心的其他相关操作
