基于RDKit的溶解度预测的机器学习模型

基于RDKit和Python3的化合物溶解度的机器学习模型小案例。

代码示例(仅供参考)：














       # In[1]:导入依赖包













       from rdkit import Chem, DataStructs













       from rdkit.Chem import AllChem













       from rdkit.ML.Descriptors import MoleculeDescriptors













       from rdkit.Chem import Descriptors













       from rdkit.Chem.EState import Fingerprinter













       import pandas as pd













       import numpy as np













       import matplotlib.pyplot as plt













       from sklearn.preprocessing import StandardScaler













       from sklearn import cross_validation













       from sklearn.metrics import r2_score













       from sklearn.ensemble import RandomForestRegressor













       from sklearn import gaussian_process













       from sklearn.gaussian_process.kernels import Matern, WhiteKernel, ConstantKernel, RBF


















       # In[2]:定义描述符计算函数













       def get_fps(mol):













           calc=MoleculeDescriptors.MolecularDescriptorCalculator([x[0] for x in Descriptors._descList])













           ds = np.asarray(calc.CalcDescriptors(mol))













           arr=Fingerprinter.FingerprintMol(mol)[0]













           return np.append(arr,ds)


















       # In[3]:













       #读入数据













       data = pd.read_table('smi_sol.dat', sep=' ')













       #增加结构和描述符属性













       data['Mol'] = data['smiles'].apply(Chem.MolFromSmiles)













       data['Descriptors'] = data['Mol'].apply(get_fps)













       # In[4]:查看前5行数据













       data.head(5)


















       # In[5]:













       #转换为numpy数组













       X = np.array(list(data['Descriptors']))













       y = data['solubility'].values













       st = StandardScaler()













       X = st.fit_transform(X)













       #划分训练集和测试集













       X_train, X_test, y_train, y_test = cross_validation.train_test_split(X, y, test_size=0.25, random_state=42)


















       # In[7]:高斯过程回归













       kernel=1.0 * RBF(length_scale=1) + WhiteKernel(noise_level=1)













       gp = gaussian_process.GaussianProcessRegressor(kernel=kernel,n_restarts_optimizer=0,normalize_y=True)













       gp.fit(X_train, y_train)


















       # In[8]:













       y_pred, sigma = gp.predict(X_test, return_std=True)













       rms = (np.mean((y_test - y_pred)**2))**0.5













       print ("GP RMS", rms)













       # out[8]:













       GP RMS 0.5984083408596741













       # In[9]:













       print ("GP r^2 score",r2_score(y_test,y_pred))













       # out[8]:













       GP r^2 score 0.9141780584554846

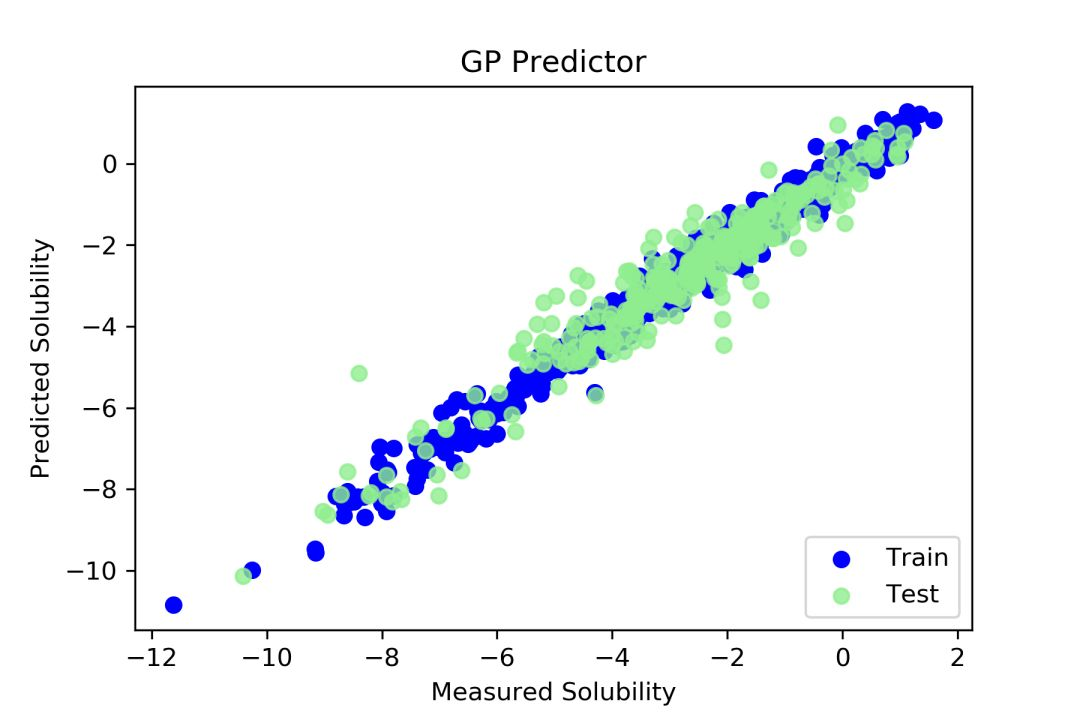

       # In[10]:结果绘图













       plt.scatter(y_train,gp.predict(X_train), label = 'Train', c='blue')













       plt.title('GP Predictor')













       plt.xlabel('Measured Solubility')













       plt.ylabel('Predicted Solubility')













       plt.scatter(y_test,gp.predict(X_test),c='lightgreen', label='Test', alpha = 0.8)













       plt.legend(loc=4)













       plt.savefig('GP Predictor.png', dpi=300)













       plt.show()


















       # In[11]:随机森林模型













       rf = RandomForestRegressor(n_estimators=100, oob_score=True, max_features='auto')













       rf.fit(X_train, y_train)













       # In[12]:













       y_pred = rf.predict(X_test)













       rms = (np.mean((y_test - y_pred)**2))**0.5













       print ("RF RMS", rms)













       # out[12]:













       RF RMS 0.6057144333891424













       # In[13]:













       print ("RF r^2 score",r2_score(y_test,y_pred))













       # out[13]:













       RF r^2 score 0.9120696293757707

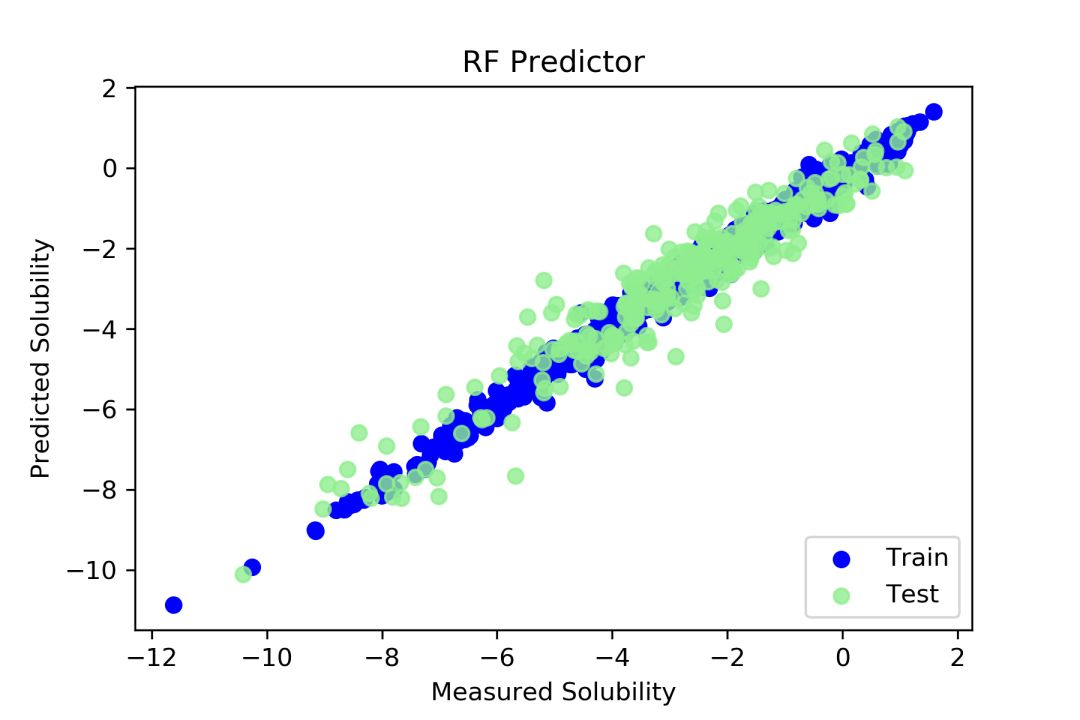

       # In[14]:结果绘图













       plt.scatter(y_train,rf.predict(X_train), label = 'Train', c='blue')













       plt.title('RF Predictor')













       plt.xlabel('Measured Solubility')













       plt.ylabel('Predicted Solubility')













       plt.scatter(y_test,rf.predict(X_test),c='lightgreen', label='Test', alpha = 0.8)













       plt.legend(loc=4)













       plt.savefig('RF Predictor.png', dpi=300)













       plt.show()
