DL之DCGAN：基于keras框架利用深度卷积对抗网络DCGAN算法对MNIST数据集实现图像生成
DL之DCGAN：基于keras框架利用深度卷积对抗网络DCGAN算法对MNIST数据集实现图像生成实现

基于keras框架利用深度卷积对抗网络DCGAN算法对MNIST数据集实现图像生成

设计思路

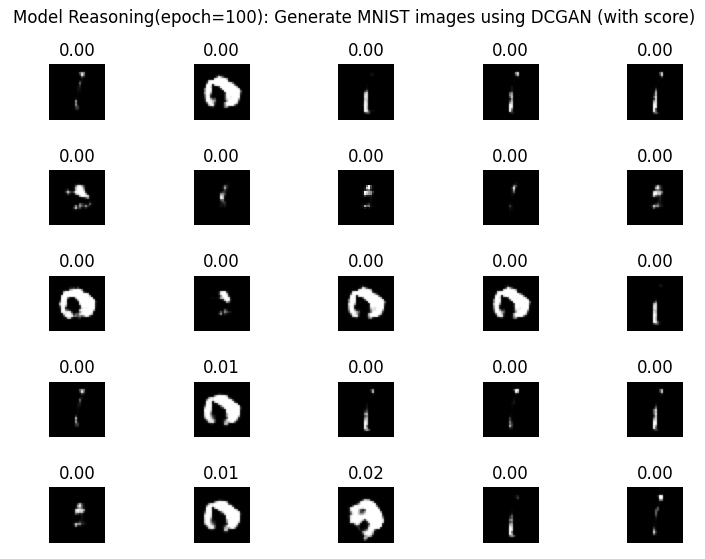

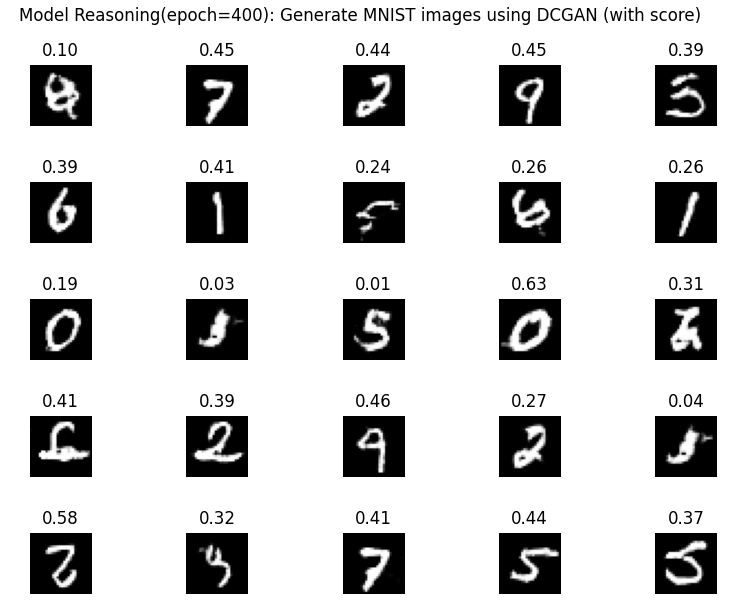

输出结果














      X像素取值范围是[-1.0, 1.0]













      _________________________________________________________________













      Layer (type) Output Shape Param #













      =================================================================













      dense_1 (Dense) (None, 1024) 103424













      _________________________________________________________________













      activation_1 (Activation) (None, 1024) 0













      _________________________________________________________________













      dense_2 (Dense) (None, 6272) 6428800













      _________________________________________________________________













      batch_normalization_1 (Batch (None, 6272) 25088













      _________________________________________________________________













      activation_2 (Activation) (None, 6272) 0













      _________________________________________________________________













      reshape_1 (Reshape) (None, 7, 7, 128) 0













      _________________________________________________________________













      up_sampling2d_1 (UpSampling2 (None, 14, 14, 128) 0













      _________________________________________________________________













      conv2d_1 (Conv2D) (None, 14, 14, 64) 204864













      _________________________________________________________________













      activation_3 (Activation) (None, 14, 14, 64) 0













      _________________________________________________________________













      up_sampling2d_2 (UpSampling2 (None, 28, 28, 64) 0













      _________________________________________________________________













      conv2d_2 (Conv2D) (None, 28, 28, 1) 1601













      _________________________________________________________________













      activation_4 (Activation) (None, 28, 28, 1) 0













      =================================================================













      Total params: 6,763,777













      Trainable params: 6,751,233













      Non-trainable params: 12,544













      _________________________________________________________________













      _________________________________________________________________













      Layer (type) Output Shape Param #













      =================================================================













      conv2d_3 (Conv2D) (None, 28, 28, 64) 1664













      _________________________________________________________________













      activation_5 (Activation) (None, 28, 28, 64) 0













      _________________________________________________________________













      max_pooling2d_1 (MaxPooling2 (None, 14, 14, 64) 0













      _________________________________________________________________













      conv2d_4 (Conv2D) (None, 10, 10, 128) 204928













      _________________________________________________________________













      activation_6 (Activation) (None, 10, 10, 128) 0













      _________________________________________________________________













      max_pooling2d_2 (MaxPooling2 (None, 5, 5, 128) 0













      _________________________________________________________________













      flatten_1 (Flatten) (None, 3200) 0













      _________________________________________________________________













      dense_3 (Dense) (None, 1024) 3277824













      _________________________________________________________________













      activation_7 (Activation) (None, 1024) 0













      _________________________________________________________________













      dense_4 (Dense) (None, 1) 1025













      _________________________________________________________________













      activation_8 (Activation) (None, 1) 0













      =================================================================













      Total params: 3,485,441













      Trainable params: 3,485,441













      Non-trainable params: 0













      _________________________________________________________________













      2020-11-24 21:53:56.659897: I tensorflow/core/platform/cpu_feature_guard.cc:141] Your CPU supports instructions that this TensorFlow binary was not compiled to use: AVX2













      (25, 28, 28, 1)





核心代码














      def generator_model():













       model = Sequential()













       model.add(Dense(input_dim=100, units=1024)) # 1034 1024













       model.add(Activation('tanh'))













       model.add(Dense(128*7*7))













       model.add(BatchNormalization())













       model.add(Activation('tanh'))













       model.add(Reshape((7, 7, 128), input_shape=(128*7*7,)))













       model.add(UpSampling2D(size=(2, 2)))













       model.add(Conv2D(64, (5, 5), padding='same'))













       model.add(Activation('tanh'))













       model.add(UpSampling2D(size=(2, 2)))













       model.add(Conv2D(1, (5, 5), padding='same'))













       model.add(Activation('tanh'))












 return model













      def discriminator_model(): # 定义鉴别网络：输入一张图像，输出0(伪造)/1(真实)













       model = Sequential()













       model.add(













       Conv2D(64, (5, 5),













       padding='same',













       input_shape=(28, 28, 1))













       )













       model.add(Activation('tanh'))













       model.add(MaxPooling2D(pool_size=(2, 2)))













       model.add(Conv2D(128, (5, 5)))













       model.add(Activation('tanh'))













       model.add(MaxPooling2D(pool_size=(2, 2)))













       model.add(Flatten())













       model.add(Dense(1024))













       model.add(Activation('tanh'))













       model.add(Dense(1))













       model.add(Activation('sigmoid'))












 return model







































      g = generator_model()













      g.summary()


























      d = discriminator_model()













      d.summary()
