浅谈yolov4中的一部分数据增强
【摘要】
浅谈yolov4中的数据增强
前言数据增强数据增强步骤1.对图片进行水平翻转2.对图片进行缩放3.对图片HSV色域变换4. Mosaic数据增强5. 总代码
前言
在接下来的几天，我将解读yolov4，yolo系列一直是很火的目标检测算法。我特别喜欢yolov4。而今天我们来谈下数据增强。
数据增强
计算机视觉中的图像增强，是人为的为视觉不变性（...
前言
在接下来的几天，我将解读yolov4，yolo系列一直是很火的目标检测算法。我特别喜欢yolov4。而今天我们来谈下数据增强。
数据增强
计算机视觉中的图像增强，是人为的为视觉不变性（语义不变）引入了先验知识。数据增强也基本上成了提高模型性能的最简单、直接的方法了。首先增强的样本和原来的样本是由强相关性的（裁剪、翻转、旋转、缩放、扭曲等几何变换，还有像素扰动、添加噪声、光照调节、对比度调节、样本加和或插值、分割补丁等），通过某些简单的操作，提高了最终性能。
数据增强步骤

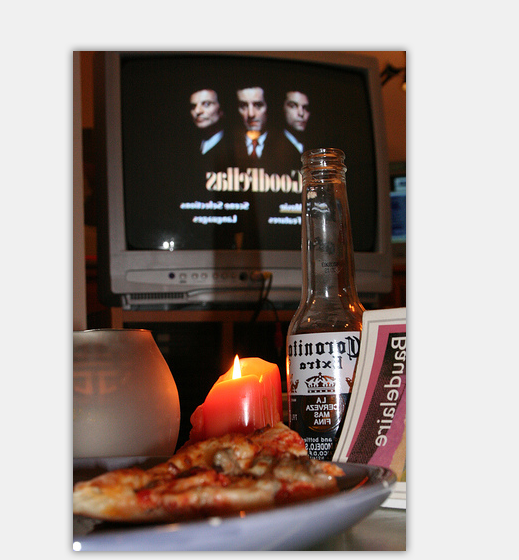

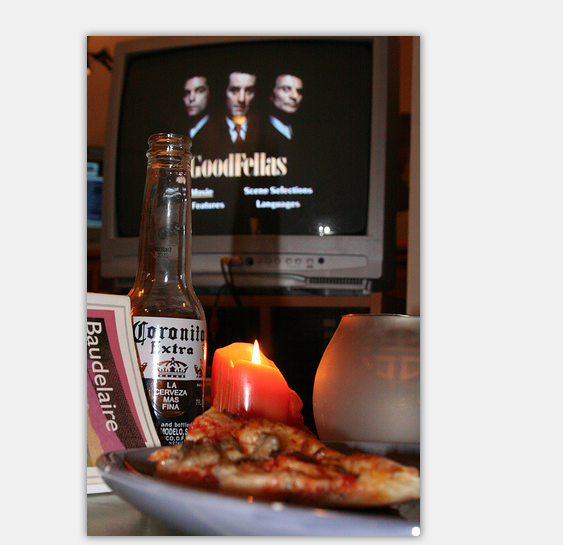

1.对图片进行水平翻转
水平翻转目标框坐标
# 图片的大小 iw, ih = image.size
image = image.transpose(Image.FLIP_LEFT_RIGHT) # print(box[:, [0, 2]] ,box[:, [2, 0]]) box[:, [0, 2]] = iw - box[:, [2, 0]] image.show()
- 1
- 2
- 3
- 4
- 5
- 6

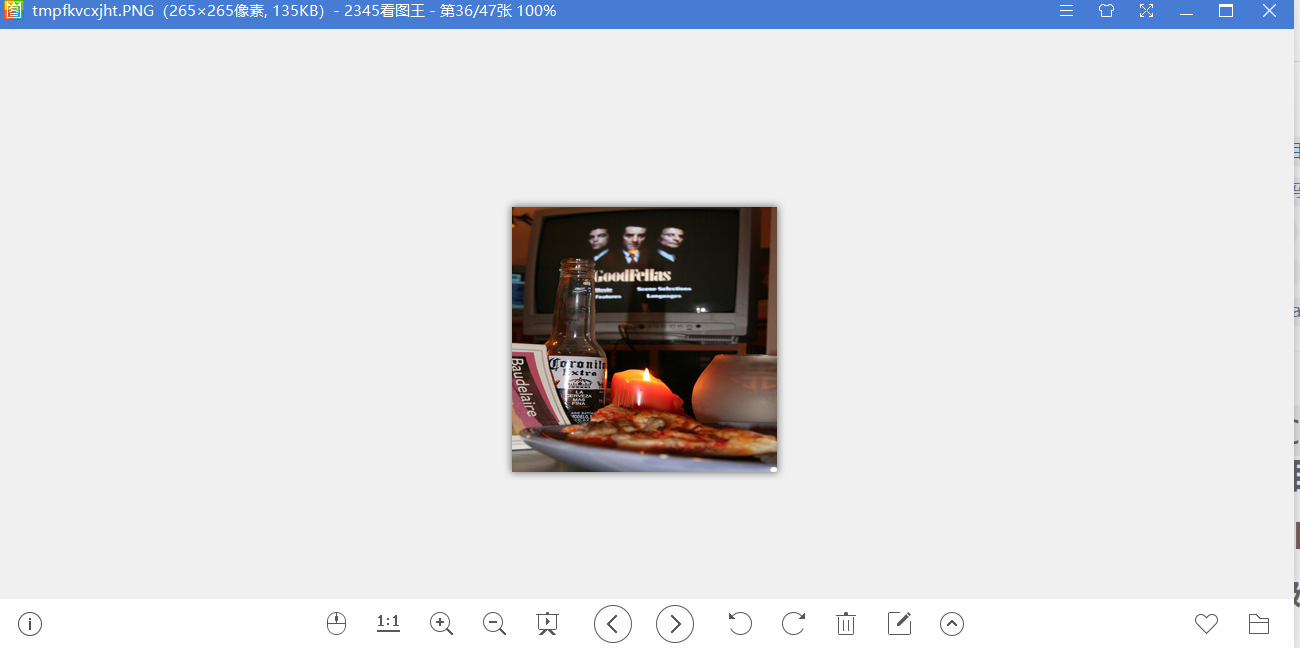

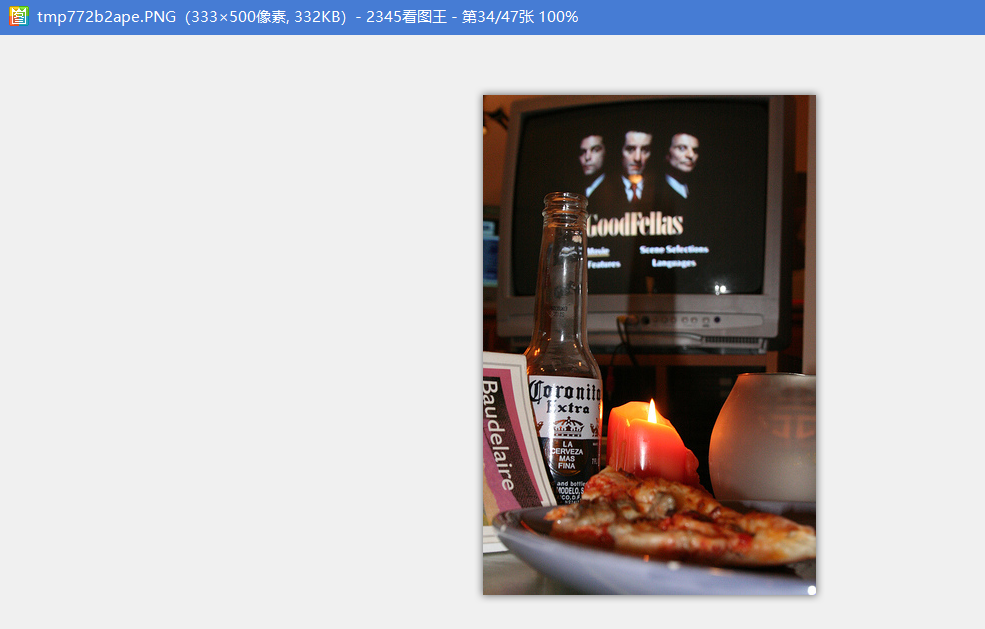

2.对图片进行缩放
代码：
# 对输入进来的图片进行缩放 new_ar = w / h scale = rand(scale_low, scale_high) if new_ar < 1: nh = int(scale * h) nw = int(nh * new_ar) # image.show() else: nw = int(scale * w) nh = int(nw / new_ar) image = image.resize((nw, nh), Image.BICUBIC) image.show()
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13

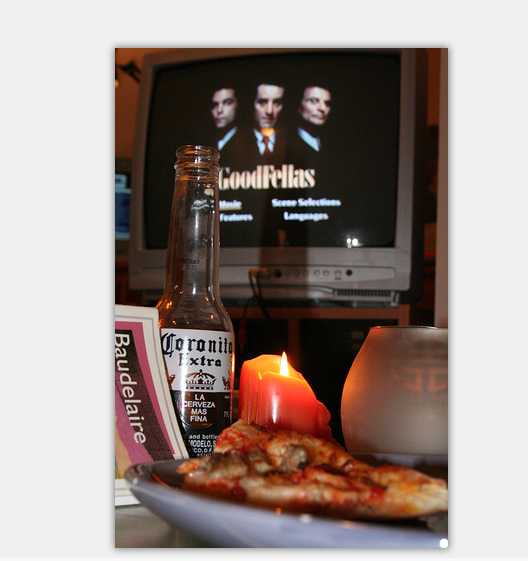

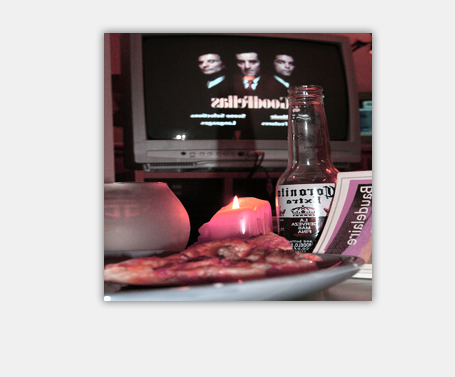

3.对图片HSV色域变换
HSV模型，是针对用户观感的一种颜色模型，侧重于色彩表示，什么颜色、深浅如何、明暗如何。
H是色彩，S是深浅， S = 0时，只有灰度，V是明暗，表示色彩的明亮程度
代码：
# 进行色域变换 hue = rand(-hue, hue) sat = rand(1, sat) if rand() < .5 else 1 / rand(1, sat) val = rand(1, val) if rand() < .5 else 1 / rand(1, val) x = rgb_to_hsv(np.array(image) / 255.) x[..., 0] += hue x[..., 0][x[..., 0] > 1] -= 1 x[..., 0][x[..., 0] < 0] += 1 x[..., 1] *= sat x[..., 2] *= val x[x > 1] = 1 x[x < 0] = 0 image = hsv_to_rgb(x) image = Image.fromarray((image * 255).astype(np.uint8)) image.show()
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
4. Mosaic数据增强

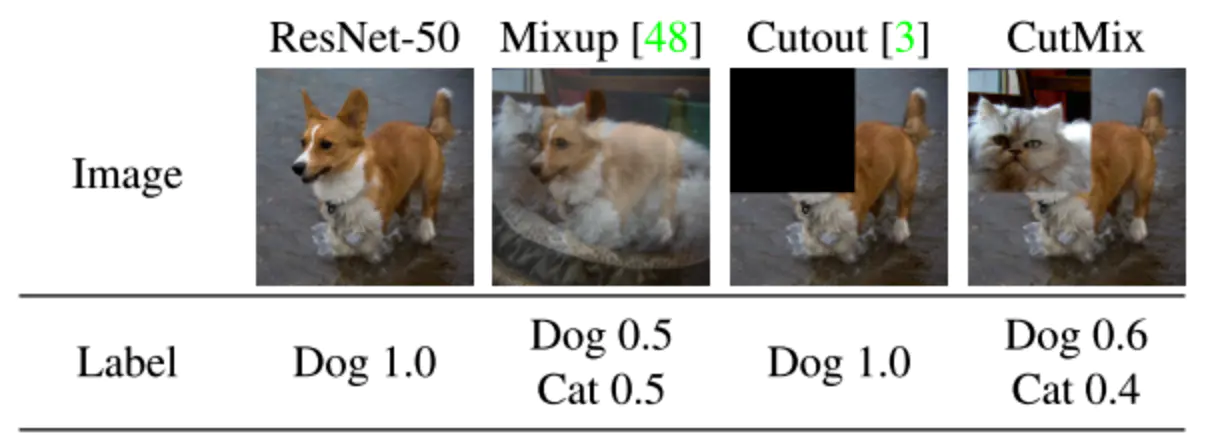

Yolov4的mosaic数据增强参考了CutMix数据增强方式，理论上具有一定的相似性！CutMix数据增强方式利用两张图片进行拼接。如下第4张图。
但是mosaic利用了四张图片，根据论文所说其拥有一个巨大的优点是丰富检测物体的背景！且在BN计算的时候一下子会计算四张图片的数据！

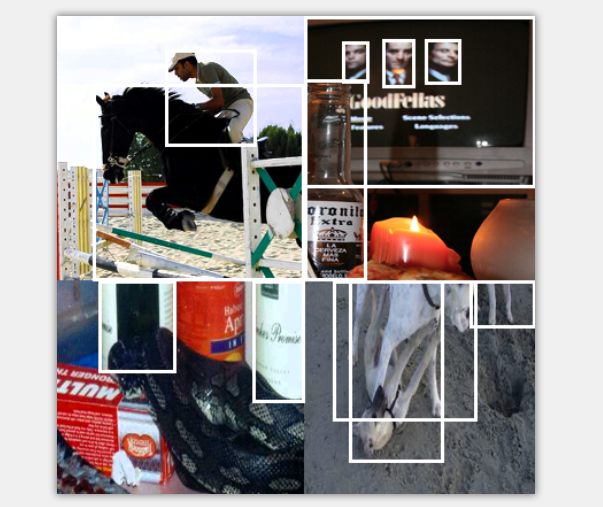

annotations需要对框的坐标在合成图中进行调整，超出边界的需要裁剪，效果图如下
# 将图片进行放置，分别对应四张分割图片的位置 dx = place_x[index] # print(dx) dy = place_y[index] # print(dy) new_image = Image.new('RGB', (w, h), (128, 128, 128)) new_image.paste(image, (dx, dy)) image_data = np.array(new_image) / 255 # new_image.show() # Image.fromarray((image_data*255).astype(np.uint8)).save(str(index)+"distort.jpg") index = index + 1 box_data = [] # 对box进行重新处理 if len(box) > 0: np.random.shuffle(box) box[:, [0, 2]] = box[:, [0, 2]] * nw / iw + dx box[:, [1, 3]] = box[:, [1, 3]] * nh / ih + dy box[:, 0:2][box[:, 0:2] < 0] = 0 box[:, 2][box[:, 2] > w] = w box[:, 3][box[:, 3] > h] = h box_w = box[:, 2] - box[:, 0] box_h = box[:, 3] - box[:, 1] #>>> np.logical_and([True, False], [False, False]) #array([False, False], dtype=bool) box = box[np.logical_and(box_w > 1, box_h > 1)] box_data = np.zeros((len(box), 5)) box_data[:len(box)] = box image_datas.append(image_data) box_datas.append(box_data) img = Image.fromarray((image_data * 255).astype(np.uint8)) for j in range(len(box_data)): thickness = 3 left, top, right, bottom = box_data[j][0:4] draw = ImageDraw.Draw(img) for i in range(thickness): draw.rectangle([left + i, top + i, right - i, bottom - i], outline=(255, 255, 255)) # img.show() # # 将图片分割，放在一起 # print(int(w * min_offset_x)) # print( int(w * (1 - min_offset_x))) cutx = np.random.randint(int(w * min_offset_x), int(w * (1 - min_offset_x))) cuty = np.random.randint(int(h * min_offset_y), int(h * (1 - min_offset_y))) new_image = np.zeros([h, w, 3]) new_image[:cuty, :cutx, :] = image_datas[0][:cuty, :cutx, :] new_image[cuty:, :cutx, :] = image_datas[1][cuty:, :cutx, :] new_image[cuty:, cutx:, :] = image_datas[2][cuty:, cutx:, :] new_image[:cuty, cutx:, :] = image_datas[3][:cuty, cutx:, :] img = Image.fromarray((new_image * 255).astype(np.uint8)) img.show() # 对框进行进一步的处理 new_boxes = merge_bboxes(box_datas, cutx, cuty)
def merge_bboxes(bboxes, cutx, cuty): merge_bbox = [] for i in range(len(bboxes)): for box in bboxes[i]: tmp_box = [] x1, y1, x2, y2 = box[0], box[1], box[2], box[3] if i == 0: if y1 > cuty or x1 > cutx: continue if y2 >= cuty and y1 <= cuty: y2 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x2 = cutx if x2 - x1 < 5: continue if i == 1: if y2 < cuty or x1 > cutx: continue if y2 >= cuty and y1 <= cuty: y1 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x2 = cutx if x2 - x1 < 5: continue if i == 2: if y2 < cuty or x2 < cutx: continue if y2 >= cuty and y1 <= cuty: y1 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x1 = cutx if x2 - x1 < 5: continue if i == 3: if y1 > cuty or x2 < cutx: continue if y2 >= cuty and y1 <= cuty: y2 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x1 = cutx if x2 - x1 < 5: continue tmp_box.append(x1) tmp_box.append(y1) tmp_box.append(x2) tmp_box.append(y2) tmp_box.append(box[-1]) merge_bbox.append(tmp_box) return merge_bbox
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
5. 总代码
from PIL import Image, ImageDraw
import numpy as np
from matplotlib.colors import rgb_to_hsv, hsv_to_rgb
import math
def rand(a=0, b=1): return np.random.rand() * (b - a) + a
def merge_bboxes(bboxes, cutx, cuty): merge_bbox = [] for i in range(len(bboxes)): for box in bboxes[i]: tmp_box = [] x1, y1, x2, y2 = box[0], box[1], box[2], box[3] if i == 0: if y1 > cuty or x1 > cutx: continue if y2 >= cuty and y1 <= cuty: y2 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x2 = cutx if x2 - x1 < 5: continue if i == 1: if y2 < cuty or x1 > cutx: continue if y2 >= cuty and y1 <= cuty: y1 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x2 = cutx if x2 - x1 < 5: continue if i == 2: if y2 < cuty or x2 < cutx: continue if y2 >= cuty and y1 <= cuty: y1 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x1 = cutx if x2 - x1 < 5: continue if i == 3: if y1 > cuty or x2 < cutx: continue if y2 >= cuty and y1 <= cuty: y2 = cuty if y2 - y1 < 5: continue if x2 >= cutx and x1 <= cutx: x1 = cutx if x2 - x1 < 5: continue tmp_box.append(x1) tmp_box.append(y1) tmp_box.append(x2) tmp_box.append(y2) tmp_box.append(box[-1]) merge_bbox.append(tmp_box) return merge_bbox
def get_random_data(annotation_line, input_shape, random=True, hue=.1, sat=1.5, val=1.5, proc_img=True): '''random preprocessing for real-time data augmentation''' h, w = input_shape min_offset_x = 0.4 min_offset_y = 0.4 scale_low = 1 - min(min_offset_x, min_offset_y) scale_high = scale_low + 0.2 image_datas = [] box_datas = [] index = 0 place_x = [0, 0, int(w * min_offset_x), int(w * min_offset_x)] place_y = [0, int(h * min_offset_y), int(w * min_offset_y), 0] for line in annotation_line: # 每一行进行分割 line_content = line.split() # 打开图片 image = Image.open(line_content[0]) image = image.convert("RGB") image.show() # 图片的大小 iw, ih = image.size # 保存框的位置 box = np.array([np.array(list(map(int, box.split(',')))) for box in line_content[1:]]) # image.save(str(index)+".jpg") # 是否翻转图片 flip = rand() < .5 # image.show() if flip and len(box) > 0: # image.show() image = image.transpose(Image.FLIP_LEFT_RIGHT) # print(box[:, [0, 2]] ,box[:, [2, 0]]) box[:, [0, 2]] = iw - box[:, [2, 0]] # image.show() # 对输入进来的图片进行缩放 new_ar = w / h scale = rand(scale_low, scale_high) if new_ar < 1: nh = int(scale * h) nw = int(nh * new_ar) # image.show() else: nw = int(scale * w) nh = int(nw / new_ar) image = image.resize((nw, nh), Image.BICUBIC) # image.show() # 进行色域变换 hue = rand(-hue, hue) sat = rand(1, sat) if rand() < .5 else 1 / rand(1, sat) val = rand(1, val) if rand() < .5 else 1 / rand(1, val) x = rgb_to_hsv(np.array(image) / 255.) x[..., 0] += hue x[..., 0][x[..., 0] > 1] -= 1 x[..., 0][x[..., 0] < 0] += 1 x[..., 1] *= sat x[..., 2] *= val x[x > 1] = 1 x[x < 0] = 0 image = hsv_to_rgb(x) image = Image.fromarray((image * 255).astype(np.uint8)) image.show() # 将图片进行放置，分别对应四张分割图片的位置 dx = place_x[index] # print(dx) dy = place_y[index] # print(dy) new_image = Image.new('RGB', (w, h), (128, 128, 128)) new_image.paste(image, (dx, dy)) image_data = np.array(new_image) / 255 # new_image.show() # Image.fromarray((image_data*255).astype(np.uint8)).save(str(index)+"distort.jpg") index = index + 1 box_data = [] # 对box进行重新处理 if len(box) > 0: np.random.shuffle(box) box[:, [0, 2]] = box[:, [0, 2]] * nw / iw + dx box[:, [1, 3]] = box[:, [1, 3]] * nh / ih + dy box[:, 0:2][box[:, 0:2] < 0] = 0 box[:, 2][box[:, 2] > w] = w box[:, 3][box[:, 3] > h] = h box_w = box[:, 2] - box[:, 0] box_h = box[:, 3] - box[:, 1] #>>> np.logical_and([True, False], [False, False]) #array([False, False], dtype=bool) box = box[np.logical_and(box_w > 1, box_h > 1)] box_data = np.zeros((len(box), 5)) box_data[:len(box)] = box image_datas.append(image_data) box_datas.append(box_data) img = Image.fromarray((image_data * 255).astype(np.uint8)) for j in range(len(box_data)): thickness = 3 left, top, right, bottom = box_data[j][0:4] draw = ImageDraw.Draw(img) for i in range(thickness): draw.rectangle([left + i, top + i, right - i, bottom - i], outline=(255, 255, 255)) # img.show() # # 将图片分割，放在一起 # print(int(w * min_offset_x)) # print( int(w * (1 - min_offset_x))) cutx = np.random.randint(int(w * min_offset_x), int(w * (1 - min_offset_x))) cuty = np.random.randint(int(h * min_offset_y), int(h * (1 - min_offset_y))) new_image = np.zeros([h, w, 3]) new_image[:cuty, :cutx, :] = image_datas[0][:cuty, :cutx, :] new_image[cuty:, :cutx, :] = image_datas[1][cuty:, :cutx, :] new_image[cuty:, cutx:, :] = image_datas[2][cuty:, cutx:, :] new_image[:cuty, cutx:, :] = image_datas[3][:cuty, cutx:, :] img = Image.fromarray((new_image * 255).astype(np.uint8)) img.show() # 对框进行进一步的处理 new_boxes = merge_bboxes(box_datas, cutx, cuty) return new_image, new_boxes
def normal_(annotation_line, input_shape): '''random preprocessing for real-time data augmentation''' line = annotation_line.split() image = Image.open(line[0]) box = np.array([np.array(list(map(int, box.split(',')))) for box in line[1:]]) iw, ih = image.size image = image.transpose(Image.FLIP_LEFT_RIGHT) box[:, [0, 2]] = iw - box[:, [2, 0]] return image, box
if __name__ == "__main__": with open("2007_train.txt") as f: lines = f.readlines() a = np.random.randint(0, len(lines)) line = lines[a:a + 4] image_data, box_data = get_random_data(line, [416, 416]) img = Image.fromarray((image_data * 255).astype(np.uint8)) for j in range(len(box_data)): thickness = 3 left, top, right, bottom = box_data[j][0:4] draw = ImageDraw.Draw(img) for i in range(thickness): draw.rectangle([left + i, top + i, right - i, bottom - i], outline=(255, 255, 255)) img.show() # img.save("box_all.jpg")
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
