绝了!Dataway让Spring Boot不在需要Controller、Service、DAO、Mapper

举报
小米粒-biubiubiu 发表于 2020/12/18 23:55:00 2020/12/18
【摘要】 最近看到了 Dataway  这个让开发者无需开发任何代码就能配置一个满足需求的接口的”神器“,感觉还挺意思的。看了 Github 之后,发现 star 数量并不多。     但是,官方也说了这东西目前已经是最稳定的版本。     并且,有人分享过一系列的文章。这篇文章就是转载的其中一篇,原文地址:https://my.oschina.net/ta8210...

最近看到了 Dataway  这个让开发者无需开发任何代码就能配置一个满足需求的接口的”神器“,感觉还挺意思的。看了 Github 之后,发现 star 数量并不多。

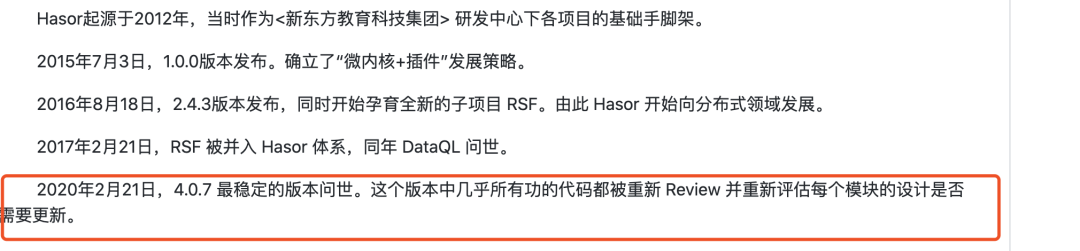

但是,官方也说了这东西目前已经是最稳定的版本。





并且,有人分享过一系列的文章。这篇文章就是转载的其中一篇,原文地址:https://my.oschina.net/ta8210/blog/3234639,如果你想阅读一系列文章的话可以在作者的主页找到,地址:https://my.oschina.net/ta8210





Dataway介绍



“Dataway 是基于 DataQL 服务聚合能力,为应用提供的一个接口配置工具。使得使用者无需开发任何代码就配置一个满足需求的接口。整个接口配置、测试、冒烟、发布。一站式都通过 Dataway 提供的 UI 界面完成。UI 会以 Jar 包方式提供并集成到应用中并和应用共享同一个 http 端口,应用无需单独为 Dataway 开辟新的管理端口。

这种内嵌集成方式模式的优点是,可以使得大部分老项目都可以在无侵入的情况下直接应用 Dataway。进而改进老项目的迭代效率,大大减少企业项目研发成本。



Dataway 工具化的提供 DataQL 配置能力。这种研发模式的变革使得,相当多的需求开发场景只需要配置即可完成交付。从而避免了从数据存取到前端接口之间的一系列开发任务,例如:Mapper、BO、VO、DO、DAO、Service、Controller 统统不在需要。

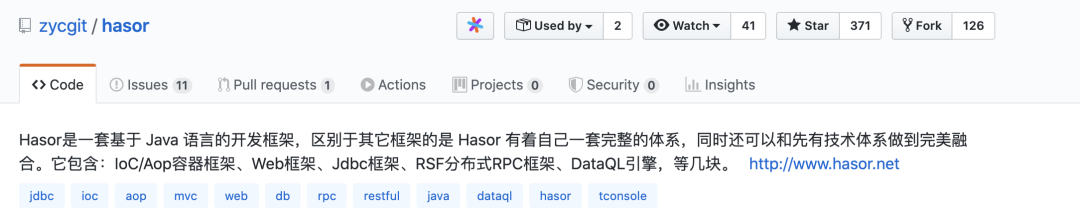

Dataway 是 Hasor 生态中的一员,因此在 Spring 中使用 Dataway 首先要做的就是打通两个生态。根据官方文档中推荐的方式我们将 Hasor 和 Spring Boot 整合起来。



这里是原文:https://www.hasor.net/web/extends/spring/for_boot.html





第一步:引入相关依赖





  1. <dependency>
  2.     <groupId>net.hasorgroupId>
  3.     <artifactId>hasor-springartifactId>
  4.     <version>4.1.4version>
  5. dependency>
  6. <dependency>
  7.     <groupId>net.hasorgroupId>
  8.     <artifactId>hasor-datawayartifactId>
  9.     <version>4.1.4version>
  10. dependency>



hasor-spring 负责 Spring 和 Hasor 框架之间的整合。hasor-dataway 是工作在 Hasor 之上,利用 hasor-spring 我们就可以使用 dataway了。



第二步:配置 Dataway,并初始化数据表



dataway 会提供一个界面让我们配置接口,这一点类似 Swagger 只要jar包集成就可以实现接口配置。找到我们 springboot 项目的配置文件application.properties





  1. # 是否启用 Dataway 功能(必选:默认false)
  2. HASOR_DATAQL_DATAWAY=true
  3. # 是否开启 Dataway 后台管理界面(必选:默认false)
  4. HASOR_DATAQL_DATAWAY_ADMIN=true
  5. # dataway API工作路径(可选,默认:/api/)
  6. HASOR_DATAQL_DATAWAY_API_URL=/api/
  7. # dataway-ui 的工作路径(可选,默认:/interface-ui/)
  8. HASOR_DATAQL_DATAWAY_UI_URL=/interface-ui/
  9. # SQL执行器方言设置(可选,建议设置)
  10. HASOR_DATAQL_FX_PAGE_DIALECT=mysql



Dataway 一共涉及到 5个可以配置的配置项,但不是所有配置都是必须的。



其中 HASOR_DATAQL_DATAWAY、HASOR_DATAQL_DATAWAY_ADMIN 两个配置是必须要打开的,默认情况下 Datawaty 是不启用的。



Dataway 需要两个数据表才能工作,下面是这两个数据表的简表语句。下面这个 SQL 可以在 dataway的依赖 jar 包中 “META-INF/hasor-framework/mysql” 目录下面找到,建表语句是用 mysql 语法写的。





  1. CREATE TABLE `interface_info` (
  2.     `api_id`          int(11)      NOT NULL AUTO_INCREMENT   COMMENT 'ID',
  3.     `api_method`      varchar(12)  NOT NULL                  COMMENT 'HttpMethod:GET、PUT、POST',
  4.     `api_path`        varchar(512NOT NULL                  COMMENT '拦截路径',
  5.     `api_status`      int(2)       NOT NULL                  COMMENT '状态:0草稿,1发布,2有变更,3禁用',
  6.     `api_comment`     varchar(255)     NULL                  COMMENT '注释',
  7.     `api_type`        varchar(24)  NOT NULL                  COMMENT '脚本类型:SQL、DataQL',
  8.     `api_script`      mediumtext   NOT NULL                  COMMENT '查询脚本:xxxxxxx',
  9.     `api_schema`      mediumtext       NULL                  COMMENT '接口的请求/响应数据结构',
  10.     `api_sample`      mediumtext       NULL                  COMMENT '请求/响应/请求头样本数据',
  11.     `api_create_time` datetime     DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  12.     `api_gmt_time`    datetime     DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  13.     PRIMARY KEY (`api_id`)
  14. ENGINE=InnoDB AUTO_INCREMENT=0 DEFAULT CHARSET=utf8mb4 COMMENT='Dataway 中的API';
  15. CREATE TABLE `interface_release` (
  16.     `pub_id`          int(11)      NOT NULL AUTO_INCREMENT   COMMENT 'Publish ID',
  17.     `pub_api_id`      int(11)      NOT NULL                  COMMENT '所属API ID',
  18.     `pub_method`      varchar(12)  NOT NULL                  COMMENT 'HttpMethod:GET、PUT、POST',
  19.     `pub_path`        varchar(512NOT NULL                  COMMENT '拦截路径',
  20.     `pub_status`      int(2)       NOT NULL                  COMMENT '状态:0有效,1无效(可能被下线)',
  21.     `pub_type`        varchar(24)  NOT NULL                  COMMENT '脚本类型:SQL、DataQL',
  22.     `pub_script`      mediumtext   NOT NULL                  COMMENT '查询脚本:xxxxxxx',
  23.     `pub_script_ori`  mediumtext   NOT NULL                  COMMENT '原始查询脚本,仅当类型为SQL时不同',
  24.     `pub_schema`      mediumtext       NULL                  COMMENT '接口的请求/响应数据结构',
  25.     `pub_sample`      mediumtext       NULL                  COMMENT '请求/响应/请求头样本数据',
  26.     `pub_release_time`datetime     DEFAULT CURRENT_TIMESTAMP COMMENT '发布时间(下线不更新)',
  27.     PRIMARY KEY (`pub_id`)
  28. ENGINE=InnoDB AUTO_INCREMENT=0 DEFAULT CHARSET=utf8mb4 COMMENT='Dataway API 发布历史。';
  29. create index idx_interface_release on interface_release (pub_api_id);





第三步:配置数据源



作为 Spring Boot 项目有着自己完善的数据库方面工具支持。我们这次采用 druid + mysql + spring-boot-starter-jdbc 的方式。



首先引入依赖





  1. <dependency>
  2.     <groupId>mysqlgroupId>
  3.     <artifactId>mysql-connector-javaartifactId>
  4.     <version>5.1.30version>
  5. dependency>
  6. <dependency>
  7.     <groupId>com.alibabagroupId>
  8.     <artifactId>druidartifactId>
  9.     <version>1.1.21version>
  10. dependency>
  11. <dependency>
  12.     <groupId>org.springframework.bootgroupId>
  13.     <artifactId>spring-boot-starter-jdbcartifactId>
  14. dependency>
  15. <dependency>
  16.     <groupId>com.alibabagroupId>
  17.     <artifactId>druid-spring-boot-starterartifactId>
  18.     <version>1.1.10version>
  19. dependency>



然后增加数据源的配置





  1. # db
  2. spring.datasource.url=jdbc:mysql://xxxxxxx:3306/example
  3. spring.datasource.username=xxxxx
  4. spring.datasource.password=xxxxx
  5. spring.datasource.driver-class-name=com.mysql.jdbc.Driver
  6. spring.datasource.type:com.alibaba.druid.pool.DruidDataSource
  7. # druid
  8. spring.datasource.druid.initial-size=3
  9. spring.datasource.druid.min-idle=3
  10. spring.datasource.druid.max-active=10
  11. spring.datasource.druid.max-wait=60000
  12. spring.datasource.druid.stat-view-servlet.login-username=admin
  13. spring.datasource.druid.stat-view-servlet.login-password=admin
  14. spring.datasource.druid.filter.stat.log-slow-sql=true
  15. spring.datasource.druid.filter.stat.slow-sql-millis=1



如果项目已经集成了自己的数据源,那么可以忽略第三步。



第四步:把数据源设置到 Hasor 容器中



Spring Boot 和 Hasor 本是两个独立的容器框架,我们做整合之后为了使用 Dataway 的能力需要把 Spring 中的数据源设置到 Hasor 中。



首先新建一个 Hasor 的 模块,并且将其交给 Spring 管理。然后把数据源通过 Spring 注入进来。





  1. @DimModule
  2. @Component
  3. public class ExampleModule implements SpringModule {
  4.     @Autowired
  5.     private DataSource dataSource = null;
  6.     @Override
  7.     public void loadModule(ApiBinder apiBinder) throws Throwable {
  8.         // .DataSource form Spring boot into Hasor
  9.         apiBinder.installModule(new JdbcModule(Level.Full, this.dataSource));
  10.     }
  11. }



Hasor 启动的时候会调用 loadModule 方法,在这里再把 DataSource 设置到 Hasor 中。



第五步:在SpringBoot 中启用 Hasor



@EnableHasor()
@EnableHasorWeb()
@SpringBootApplication(scanBasePackages = { "net.example.hasor" })
public class ExampleApplication {
    public static void main(String[] args) {
        SpringApplication.run(ExampleApplication.class, args);
    }
}



这一步非常简单,只需要在 Spring 启动类上增加两个注解即可。



第六步:启动应用



应用在启动过程中会看到 Hasor Boot 的欢迎信息





  1. _    _                        ____              _
  2. | |  | |                      |  _ \            | |
  3. | |__| | __ _ ___  ___  _ __  | |_) | ___   ___ | |_
  4. |  __  |/ _` / __|/ _ \| '__| |  _ < / _ \ / _ \| __|
  5. | |  | | (_| \__ \ (_) | |    | |_) | (_) | (_) | |_
  6. |_|  |_|\__,_|___/\___/|_|    |____/ \___/ \___/ \__|



在后面的日志中还可以看到类似下面这些日志。





  1. 2020-04-14 13:52:59.696 [main] INFO  n.h.core.context.TemplateAppContext - loadModule class net.hasor.dataway.config.DatawayModule
  2. 2020-04-14 13:52:59.697 [main] INFO  n.hasor.dataway.config.DatawayModule - dataway api workAt /api/
  3. 2020-04-14 13:52:59.697 [main] INFO  n.h.c.e.AbstractEnvironment - var -> HASOR_DATAQL_DATAWAY_API_URL = /api/.
  4. 2020-04-14 13:52:59.704 [main] INFO  n.hasor.dataway.config.DatawayModule - dataway admin workAt /interface-ui/
  5. 2020-04-14 13:52:59.716 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[901d38f22faa419a8593bb349905ed0e] -> bindType ‘class net.hasor.dataway.web.ApiDetailController’ mappingTo‘[/interface-ui/api/api-detail]’.
  6. 2020-04-14 13:52:59.716 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[c6eb9f3b3d4c4c8d8a4f807435538172] -> bindType ‘class net.hasor.dataway.web.ApiHistoryListController’ mappingTo‘[/interface-ui/api/api-history]’.
  7. 2020-04-14 13:52:59.717 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[eb841dc72ad54023957233ef602c4327] -> bindType ‘class net.hasor.dataway.web.ApiInfoController’ mappingTo‘[/interface-ui/api/api-info]’.
  8. 2020-04-14 13:52:59.717 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[96aebb46265245459ae21d558e530921] -> bindType ‘class net.hasor.dataway.web.ApiListController’ mappingTo‘[/interface-ui/api/api-list]’.
  9. 2020-04-14 13:52:59.718 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[7467c07f160244df8f228321f6262d3d] -> bindType ‘class net.hasor.dataway.web.ApiHistoryGetController’ mappingTo‘[/interface-ui/api/get-history]’.
  10. 2020-04-14 13:52:59.719 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[97d8da5363c741ba99d87c073a344412] -> bindType ‘class net.hasor.dataway.web.DisableController’ mappingTo‘[/interface-ui/api/disable]’.
  11. 2020-04-14 13:52:59.720 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[8ddc3316ef2642dfa4395ca8ac0fff04] -> bindType ‘class net.hasor.dataway.web.SmokeController’ mappingTo‘[/interface-ui/api/smoke]’.
  12. 2020-04-14 13:52:59.720 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[cc06c5fb343b471aacedc58fb2fe7bf8] -> bindType ‘class net.hasor.dataway.web.SaveApiController’ mappingTo‘[/interface-ui/api/save-api]’.
  13. 2020-04-14 13:52:59.720 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[7915b2b1f89a4e73891edab0264c9bd4] -> bindType ‘class net.hasor.dataway.web.PublishController’ mappingTo‘[/interface-ui/api/publish]’.
  14. 2020-04-14 13:52:59.721 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[0cfa34586455414591bdc389bff23ccb] -> bindType ‘class net.hasor.dataway.web.PerformController’ mappingTo‘[/interface-ui/api/perform]’.
  15. 2020-04-14 13:52:59.721 [main] INFO  net.hasor.core.binder.ApiBinderWrap - mapingTo[37fe4af3e2994acb8deb72d21f02217c] -> bindType ‘class net.hasor.dataway.web.DeleteController’ mappingTo‘[/interface-ui/api/delete]’.



当看到 “dataway api workAt /api/” 、 dataway admin workAt /interface-ui/ 信息时,就可以确定 Dataway 的配置已经生效了。



第七步:访问接口管理页面进行接口配置

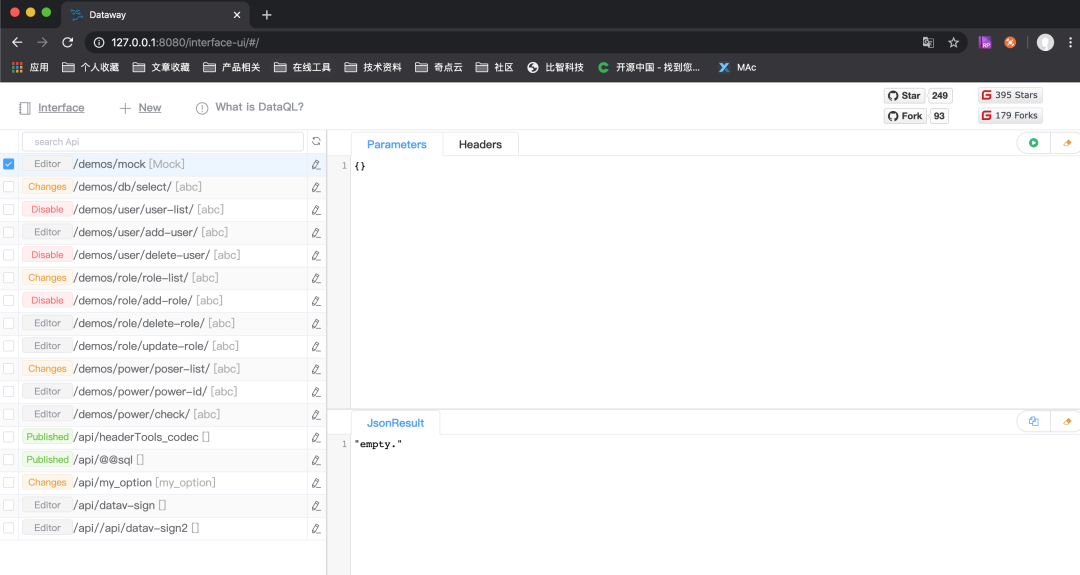

在浏览器中输入 “http://127.0.0.1:8080/interface-ui/” 就可以看到期待已久的界面了。








第八步:新建一个接口

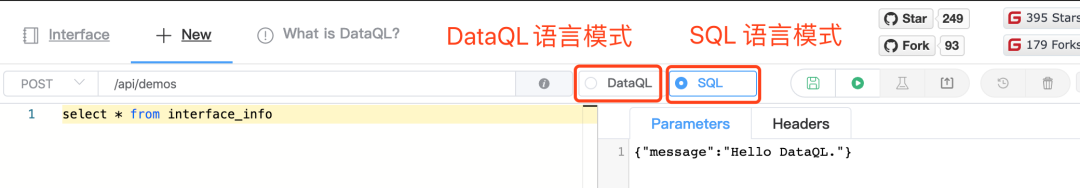

Dataway 提供了2中语言模式,我们可以使用强大的 DataQL 查询语言,也可以直接使用 SQL 语言(在 Dataway 内部 SQL 语言也会被转换为 DataQL 的形式执行。)

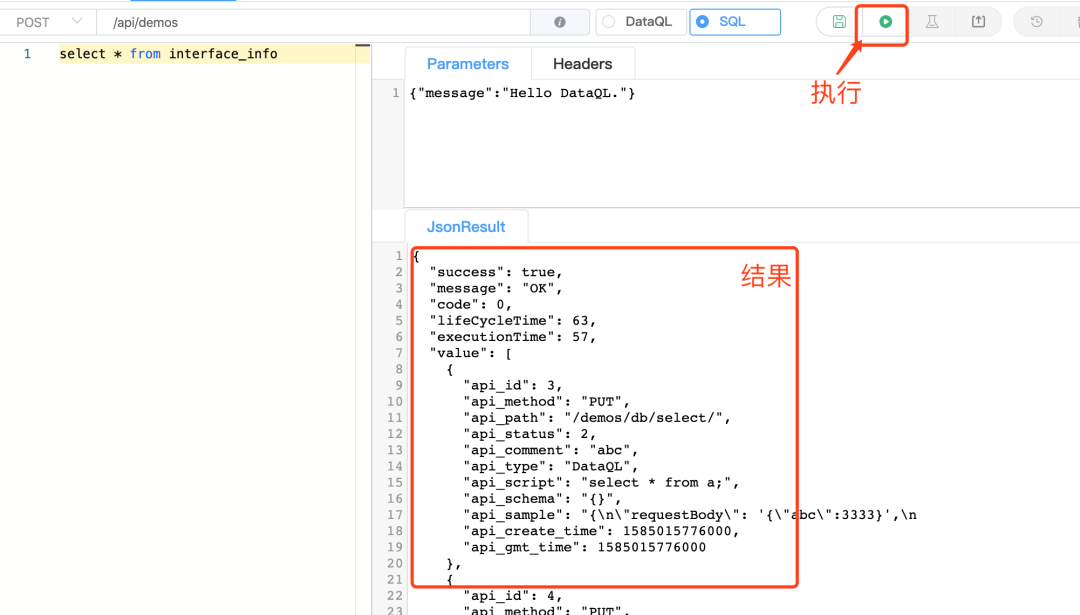

首先我们在 SQL 模式下尝试执行一条 select 查询,立刻就可以看到这条 SQL 的查询结果。








同样的方式我们使用 DataQL 的方式需要这样写:





  1. var query = @@sql()<%
  2.     select * from interface_info
  3. %>
  4. return query()



其中 var query = @@sql()<% ... %> 是用来定义SQL外部代码块,并将这个定义存入 query 变量名中。<% %> 中间的就是 SQL 语句。



最后在 DataQL 中调用这个代码块,并返回查询结果。

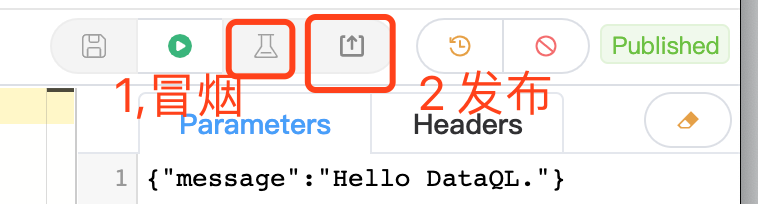

当接口写好之后就可以保存发布了,为了测试方便,我选用 GET 方式。

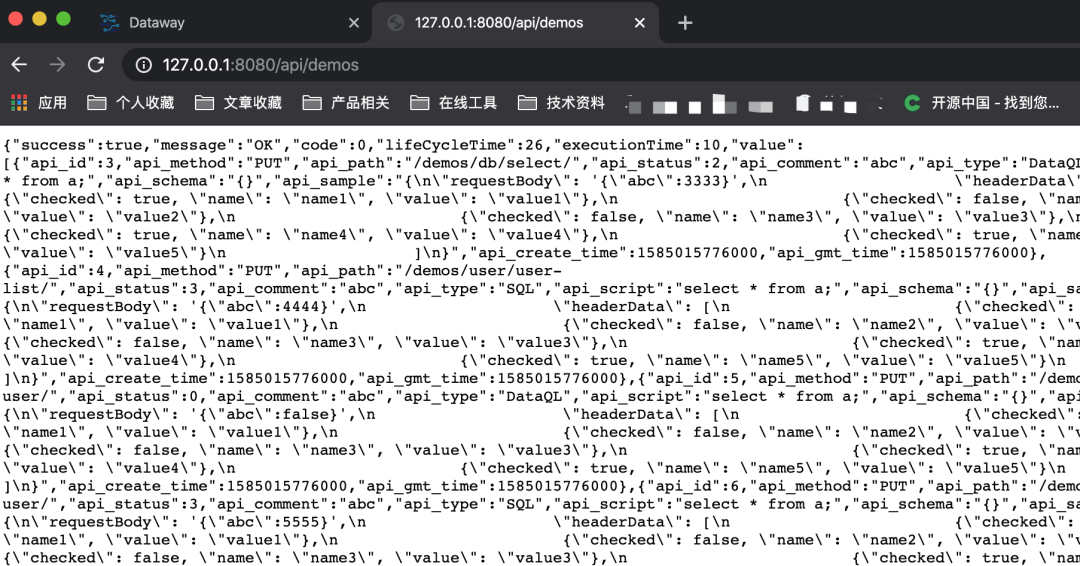

接口发布之后我们直接请求:http://127.0.0.1:8080/api/demos,就看到期待已久的接口返回值了。








最后总结





经过上面的几个步骤我们介绍了如何基于 Spring Boot 项目使用 Dataway 来简单的配置接口。Dataway 的方式确实给人耳目一新,一个接口竟然可以如此简单的配置出来无需开发任何一行代码,也不需要做任何 Mapping 实体映射绑定。



后面会有更多 Dataway 的文章推出也欢迎大家继续关注,大家在使用过程中遇到什么问题可以在评论区留言,或者加入 Hasor 线下交流群一起讨论(群号请到 Hasor 官网上查阅,这里就卖个关子)



最后放几个有用的连接:



  • Dataway 官方手册:https://www.hasor.net/web/dataway/about.html

  • Dataway 在 OSC 上的项目地址,欢迎收藏:https://www.oschina.net/p/dataway

  • DataQL 手册地址:https://www.hasor.net/web/dataql/what_is_dataql.html

  • Hasor 项目的首页:https://www.hasor.net/web/index.html

文章来源: blog.csdn.net,作者:血煞风雨城2018,版权归原作者所有,如需转载,请联系作者。

原文链接:blog.csdn.net/qq_31905135/article/details/106069008
